As enterprise networks continue to grow in scale and complexity, traditional firewall solutions are often unable to meet the security requirements of modern high-speed environments. Data centers, cloud platforms, and large enterprises require security solutions that can inspect traffic, prevent advanced threats, and maintain high network performance at the same time.
A Next generation firewall (NGFW) is designed to combine traditional firewall capabilities with advanced security technologies, including intrusion prevention, application control, antivirus protection, SSL inspection, and secure access features. By integrating multiple security functions into one platform, NGFW solutions help organizations improve network protection while simplifying security management.
For high-density data center environments, a high-performance NGFW firewall must provide not only advanced security capabilities but also sufficient throughput, scalability, and hardware reliability. The Fortinet FG-4201F (FortiGate 4201F) is designed for hyperscale data centers, large enterprises, and service provider networks that require high-speed security protection.
What Is a Next-Generation Firewall (NGFW)?
A Next generation firewall is an advanced security gateway that extends beyond traditional packet filtering. Instead of only checking IP addresses, ports, and protocols, NGFW solutions analyze applications, users, and network traffic behavior to provide deeper protection.
Traditional firewalls mainly focus on controlling network access, while NGFW platforms combine multiple security technologies into a unified solution. These capabilities allow organizations to detect threats more effectively and apply more detailed security policies across complex network environments.
Modern enterprises use NGFW solutions to protect critical infrastructure, secure data center traffic, and support digital transformation initiatives such as cloud migration and zero-trust security strategies.
How NGFW Differs from Traditional Firewalls
The main difference between a traditional firewall and an NGFW firewall is the depth of security inspection and integrated protection capabilities.
| Feature | Traditional Firewall | Next-Generation Firewall |
| Traffic Control | IP and port-based filtering | Application and advanced traffic inspection |
| Threat Protection | Basic protection | IPS, antivirus, and malware protection |
| Traffic Analysis | Limited visibility | Deep inspection and security analysis |
| Security Integration | Multiple separate systems | Unified security platform |
With these enhanced capabilities, NGFW solutions can help enterprises achieve stronger security without deploying multiple independent security devices.
Key Features of a Next-Generation Firewall
Advanced Threat Detection and Prevention
One of the core advantages of a Next generation firewall is its ability to provide comprehensive threat protection.
The Fortinet FG-4201F integrates multiple security functions, including:
- Next-generation firewall protection
- Intrusion Prevention System (IPS)
- Antivirus and anti-malware protection
- SSL/TLS inspection
- DDoS protection
- IPsec VPN and SSL VPN
- Zero Trust Network Access (ZTNA)
These integrated features allow organizations to monitor network traffic and respond to potential security risks more efficiently.
Deep Packet Inspection and SSL/TLS Inspection
Modern networks increasingly rely on encrypted traffic, making security inspection more challenging. NGFW solutions use advanced inspection technologies to analyze network traffic while maintaining security visibility.
The FG-4201F uses Fortinet’s custom Security Processing Unit (SPU), combining:
- NP7 network processor for accelerated traffic forwarding
- CP9 content processor for deep inspection and security processing
By offloading security tasks from the main CPU, the platform helps reduce performance bottlenecks during high-volume traffic processing.
High-Speed Network Connectivity
For modern data centers, security devices must support high-bandwidth network architectures.
The Fortinet FG-4201F provides:
- 8 × 100GE/40GE QSFP28 slots
- 18 × 25GE/10GE SFP28 slots
- 2 × GE RJ45 management ports
This high-density interface design makes it suitable for environments using 100G and 25G network infrastructure, including data center spine-leaf architectures and enterprise backbone networks.
Hardware Acceleration and High Performance
A major consideration when selecting a Hardware firewall is whether it can maintain security performance under heavy traffic loads.
The FG-4201F delivers:
- Firewall throughput: up to 198 Gbps
- IPS throughput: up to 52 Gbps
- NGFW throughput: up to 47 Gbps
- Threat protection throughput: up to 45 Gbps
It also supports:
- Up to 210 million concurrent TCP sessions
- Up to 1 million new TCP sessions per second
- Up to 9 million SSL inspection concurrent sessions
These specifications allow enterprises to deploy advanced security protection without significantly reducing network performance.
Benefits of Using a Next-Generation Firewall
Stronger Protection for Enterprise Networks
Cyber threats continue to become more complex, requiring organizations to move beyond basic firewall protection.
A modern Enterprise security firewall combines multiple security technologies into one platform, helping enterprises protect critical applications, data, and network infrastructure.
By integrating firewall, IPS, antivirus, VPN, and zero-trust access capabilities, NGFW solutions provide a more complete security approach.
Simplified Security Management
Managing multiple security devices can increase operational complexity. NGFW solutions help reduce this challenge by consolidating different security functions into one platform.
The Fortinet FG-4201F supports centralized management through:
- FortiManager
- FortiCloud
- CLI
- REST API
- SNMP
This enables administrators to manage security policies, monitor performance, and maintain network visibility more efficiently.
Improved Reliability for Critical Environments
For data centers and service providers, continuous operation is essential.
The FG-4201F features:
- 3U rackmount design
- Redundant 1+1 hot-swappable AC/DC power supplies
- Hot-swappable fans
- Front-to-back airflow design
These features support reliable operation in mission-critical environments.
NGFW Use Cases in Modern Network Environments
Data Center Security
Data centers require security solutions capable of handling large volumes of east-west and north-south traffic.
The FG-4201F is designed for hyperscale data centers and supports high-speed 100G/25G network environments, making it suitable as a core security gateway for advanced data center architectures.
Large Enterprise Networks
Large enterprises often require secure connections between headquarters, branches, and data centers.
A high-performance Network firewall such as the FG-4201F can provide:
- Advanced threat protection
- Secure network segmentation
- High-speed connectivity
- Centralized security management
Service Provider and Carrier Networks
Service providers need scalable security platforms that can handle large traffic volumes and multiple customer environments.
With high throughput performance and scalable hardware design, the FG-4201F supports carrier and managed security service scenarios.
Cloud and Hybrid Environments
Organizations adopting cloud and hybrid infrastructure require flexible security solutions.
The FG-4201F supports features such as:
- SD-WAN
- VXLAN
- Zero Trust Network Access (ZTNA)
- Secure connectivity
These capabilities help organizations build secure and flexible network environments.

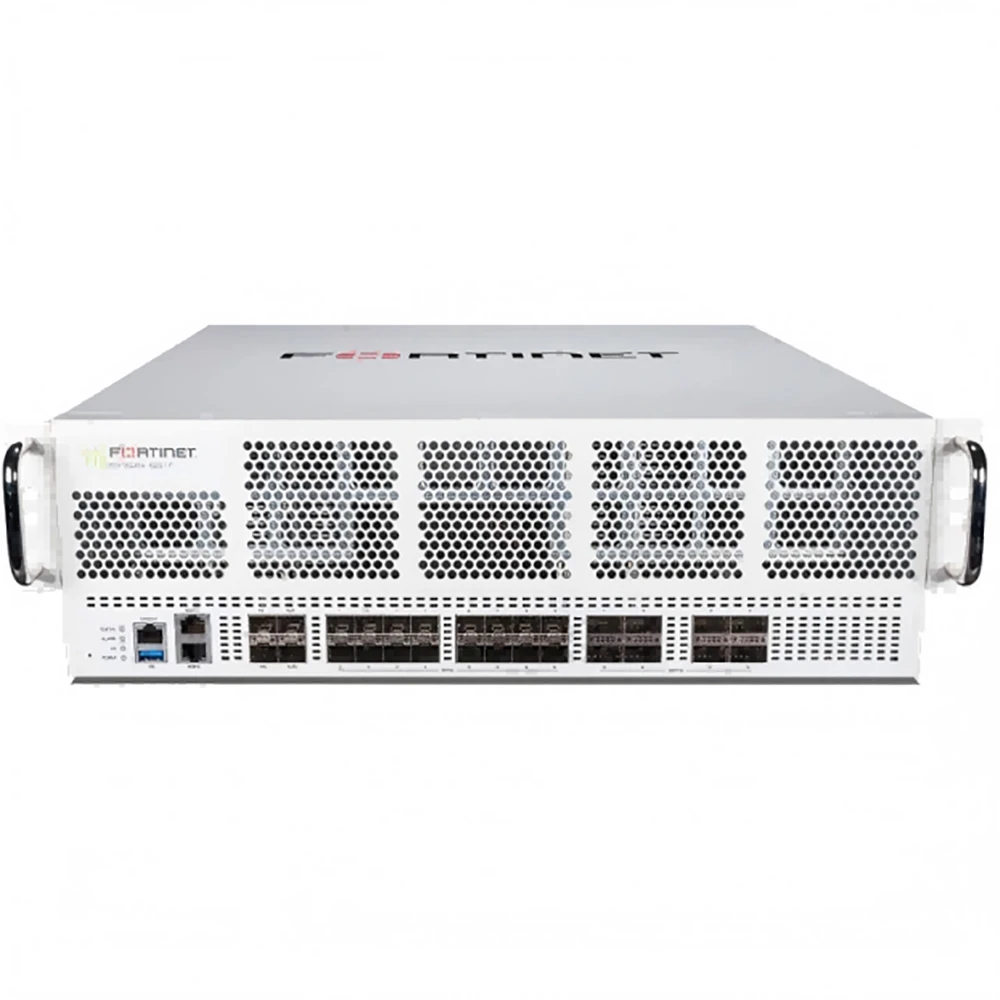

Fortinet FG-4201F: A High-Performance NGFW Firewall Solution
The Fortinet FG-4201F (FortiGate 4201F) is a high-performance NGFW firewall designed for demanding enterprise and data center applications.
Powered by Fortinet’s 7th-generation SPU architecture, it combines high-speed networking, hardware acceleration, and integrated security capabilities in a compact 3U rackmount form factor.
Key advantages include:
- Up to 198 Gbps firewall throughput
- 100G/25G high-density interfaces
- Dual 2TB NVMe SSD storage
- Redundant hot-swappable power supplies
- Support for NGFW, IPS, antivirus, SSL inspection, SD-WAN, and ZTNA
For organizations requiring a scalable Enterprise security firewall for high-speed networks, the FG-4201F provides a balanced combination of performance, security, and reliability.
About CREA DAS TECH LIMITED
CREA DAS TECH LIMITED is a global supplier of high-performance network communication equipment, providing reliable hardware solutions for enterprises, data centers, and service providers. Established in 2019 and headquartered in Hong Kong, the company specializes in sourcing and distributing mission-critical networking equipment from leading brands, including Cisco, NVIDIA, Mellanox, Brocade, Dell, HPE, Huawei, and Juniper.
With an extensive global supply chain network and professional industry experience, CREA DAS TECH supports customers with both the latest networking technologies and hard-to-find EOL (End-of-Life) components. By focusing on product quality, compatibility, and reliable supply, the company helps organizations build and maintain secure, high-performance IT infrastructures.
Conclusion: Why NGFW Is Essential for Modern Network Security
As enterprise networks continue to evolve, organizations need security solutions that can provide advanced protection without sacrificing performance.
A Next generation firewall combines traditional firewall functions with advanced security technologies to protect modern networks, data centers, and cloud environments.
With high throughput, hardware acceleration, and integrated security capabilities, the Fortinet FG-4201F provides a reliable solution for enterprises, service providers, and hyperscale data centers requiring high-performance network protection. Contact CREA DAS TECH for more information about the Fortinet FG-4201F specifications, availability, and deployment options.
Frequently Asked Questions About Next-Generation Firewall (NGFW)
What is a next-generation firewall (NGFW)?
A Next generation firewall is an advanced security solution that combines traditional firewall functions with features such as IPS, antivirus, SSL inspection, and application control to protect modern networks.
What is the difference between an NGFW firewall and a traditional firewall?
An NGFW firewall provides deeper traffic inspection and more integrated security capabilities, while traditional firewalls mainly focus on basic IP and port filtering.
Why do enterprises need a high-performance NGFW?
A high-performance NGFW helps enterprises protect data centers and high-speed networks by providing advanced security features, high throughput, and reliable network protection.
