Comprehensive Product Overview

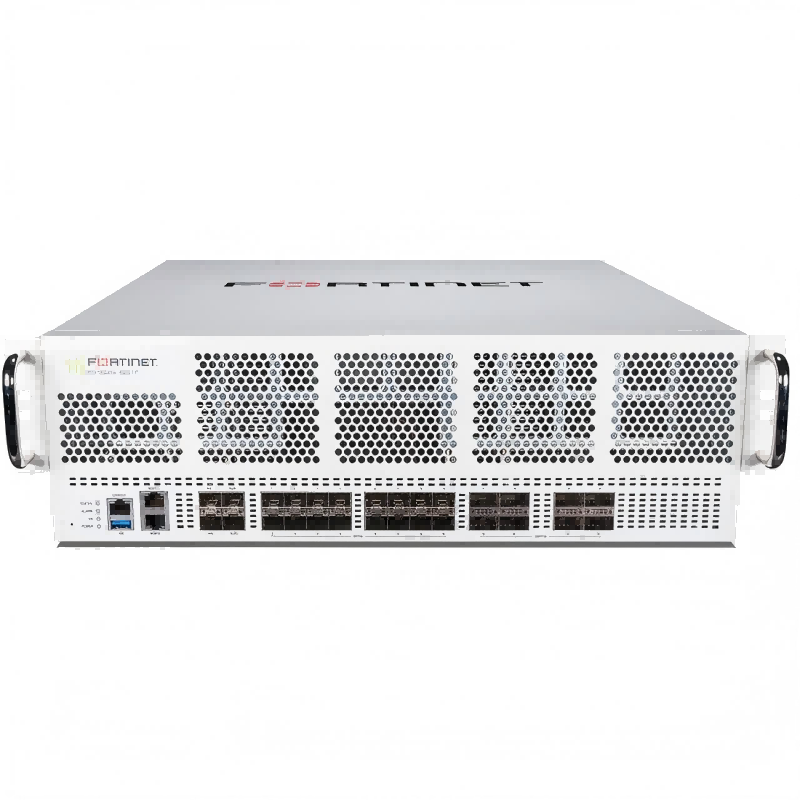

The FortiGate 4201F (FG-4201F) belongs to Fortinet’s 4200F series, built to address the most demanding security and networking requirements in modern data center and carrier environments. It integrates high-speed connectivity, hardware-accelerated security, and robust scalability into a compact 3U form factor.
At its core lies Fortinet’s custom Security Processing Unit (SPU), combining NP7 (network processor) for ultra-fast traffic forwarding and CP9 (content processor) for deep inspection, SSL decryption, and threat detection—offloading all security tasks from the main CPU to eliminate performance bottlenecks.
With 8×100G/40G QSFP28 and 18×25G/10G SFP28 ports, the FG-4201F delivers industry-leading port density for 100G/25G networks. Dual 2TB NVMe SSDs provide high-capacity logging and analytics, while redundant hot-swappable PSUs ensure maximum uptime.
Running on FortiOS, the FG-4201F unifies NGFW, IPS, antivirus, SSL inspection, SD-WAN, and zero-trust access (ZTNA) into a single platform, enabling security-driven networking that converges networking and security seamlessly.
Key Features & Business Benefits
7th-Gen SPU (NP7 + CP9) Acceleration
- Benefit: Delivers 198 Gbps firewall throughput, 52 Gbps IPS throughput, 47 Gbps NGFW throughput—even with full threat protection enabled.
- Value: Eliminates performance trade-offs; secures high-speed traffic without latency.
High-Density 100G/25G Interfaces
- Ports: 8×100G/40G QSFP28 + 18×25G/10G SFP28 + 2×GE RJ45 management.
- Value: Supports hyperscale data center spine-leaf architectures and high-bandwidth enterprise backbones.
Dual 2TB NVMe SSD Storage
- Benefit: High-speed, high-capacity logging, FortiAnalyzer integration, and local content caching.
- Value: Reduces dependency on external logging servers; enables faster threat analysis.
Redundant & Hot-Swappable Components
- Design: 1+1 redundant AC/DC PSUs, hot-swappable fans, front-to-back airflow.
- Value: 99.999% uptime for mission-critical data center and service provider networks.
All-In-One Security (NGFW/IPS/AV/SSL/SD-WAN/ZTNA)
- Benefit: Consolidates multiple security functions into one device.
- Value: Lower TCO, simplified management, and consistent security across hybrid environments.
FortiOS & Security-Driven Networking
- Benefit: Unifies networking and security; supports VXLAN, ZTP, and zero-trust access.
- Value: Enables agile, secure cloud migration and microsegmentation.
Technical Specifications
- Firewall Throughput: 198 Gbps
- NGFW Throughput: 47 Gbps
- IPS Throughput: 52 Gbps
- Threat Protection Throughput: 45 Gbps
- Concurrent TCP Sessions: 210,000,000
- New TCP Sessions/sec: 1,000,000
- SSL Inspection Concurrent Sessions: 9,000,000
- SSL Inspection CPS: 34,000
Interfaces
- 8 × 100GE/40GE QSFP28 slots
- 18 × 25GE/10GE SFP28 slots
- 2 × GE RJ45 management ports
- 1 × USB 3.0 port
- 1 × Console RJ45 port
Hardware
- Form Factor: 3U rackmount
- Dimensions: 5.22” H × 17.20” W × 26.17” D (132.6 × 436.9 × 664.7 mm)
- Weight: 61.07 lbs (27.7 kg)
- Storage: Dual 2TB NVMe SSDs
- Power Supply: Redundant 1+1 hot-swappable AC (100–240V) or DC (-48V)
- Power Consumption: 931W (avg) / 1291W (max)
- Noise Level: 57 dBA
Security & Networking
- Security: NGFW, IPS, antivirus, anti-malware, SSL/TLS inspection, DDoS protection, VPN (IPsec/SSL), ZTNA
- Networking: Static/dynamic routing, OSPF/BGP, VXLAN, SD-WAN, ZTP, virtual domains (up to 500)
- Management: FortiManager, FortiCloud, CLI, REST API, SNMP
Environment & Compliance
- Operating Temp: 0–40°C (32–104°F)
- Humidity: 20–90% non-condensing
- Certifications: FCC, CE, UL/cUL, CB, ICSA Labs (Firewall/IPS/AV/SSL-VPN)
Ideal Application Scenarios
- Hyperscale Data Centers: Core security gateway for 100G/25G spine-leaf architectures.
- Large Enterprise HQ & Data Centers: Secure high-speed inter-data center connections and internal segmentation.
- Service Providers & Carriers: High-performance NGFW for managed security services and peering points.
- Cloud & Hybrid Environments: Secure cloud onramps, multi-cloud connectivity, and zero-trust access.
- Financial & Regulated Industries: High-throughput, low-lat security for banking, trading, and compliance requirements.
Supported Accessories & Modules
Transceivers (Compatible)
- 100G QSFP28: SR4, LR4, ER4, ZR4
- 40G QSFP+: SR4, LR4, ER4
- 25G SFP28: SR, LR, ER
- 10G SFP+: SR, LR, ER, ZR
Power Supplies
- FG-4201F-PSU-AC: 100–240V AC hot-swappable PSU
- FG-4201F-PSU-DC: -48V DC hot-swappable PSU
Management & Mounting
- FG-RACK-3U: 3U rackmount kit (included)
- FortiManager: Centralized management platform
- FortiAnalyzer: Logging and analytics server
Frequently Asked Questions (FAQ)
Q1: What is the main difference between FG-4201F and FG-3501F?
A: The FG-4201F offers higher port density (8×100G vs 6×100G), higher throughput (198 Gbps vs 160 Gbps), and 3U vs 2U form factor, making it suitable for larger data centers and service providers.
Q2: Does the FG-4201F support SSL inspection for high-volume traffic?
A: Yes. It delivers 9 million concurrent SSL sessions and 34,000 SSL CPS, powered by the CP9 content processor, ideal for high-volume TLS 1.2/1.3 environments.
Q3: Can the FG-4201F be deployed in a zero-trust architecture?
A: Absolutely. It supports FortiSASE ZTNA, microsegmentation, and identity-based access control, enabling zero-trust security across hybrid networks.
Q4: What warranty and support options are available?
A: Typically includes 1-year hardware warranty and optional FortiCare 24×7 support (1–5 years) plus FortiGuard security subscriptions for antivirus, IPS, and application control.
Q5: Is the FG-4201F compatible with Fortinet’s FortiManager?
A: Yes. It is fully compatible with FortiManager for centralized configuration, policy management, and firmware updates across the FortiGate fleet.
