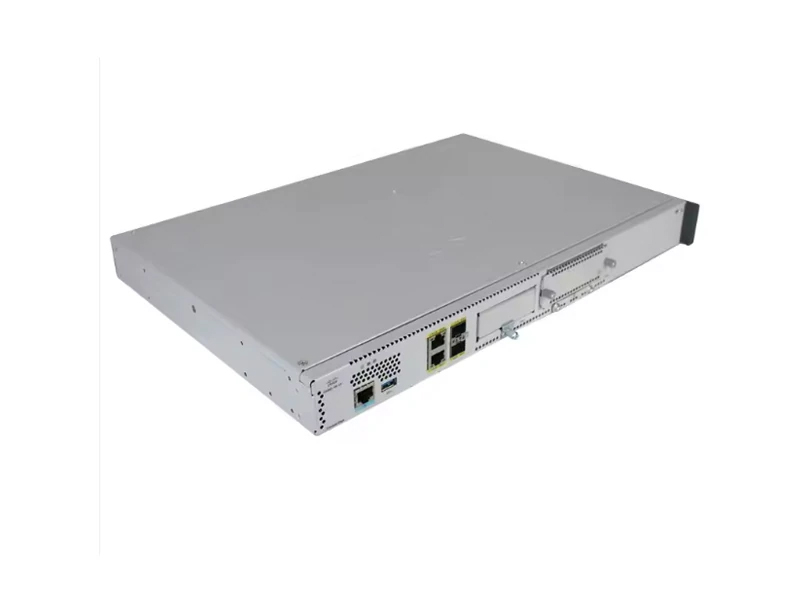

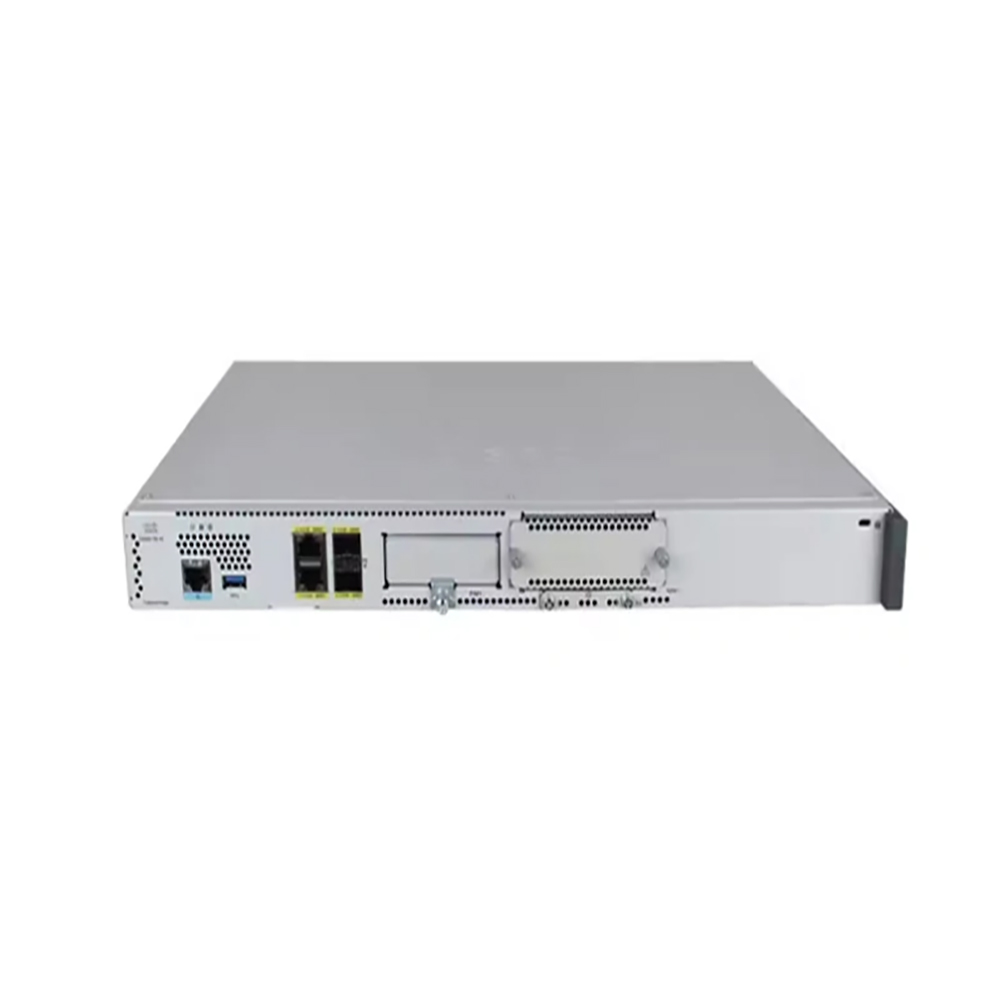

Enterprise routers in 2026 will need to provide secure SD-WAN, flexible connectivity, and cellular backup for branch offices, retail stores, and managed service providers. Crucially, these capabilities should be deployable without the need for complex on-site configuration. These functions should be implemented without relying on complex on-site configurations. The Cisco Catalyst C8200L-1N-4T is a cost-effective, cloud-ready edge router designed for branch offices of small and medium-sized enterprises .As the successor to the ISR 4221 and a core component of Cisco SASE architecture, it provides predictable cloud connectivity, hardware-based security, and modular expansion options including 5G backup.
1.Understanding Modern Branch Requirements (And Where the C8200L Fits)
1.1 The Ideal User Profile for the C8200L-1N-4T
Small and medium-sized branch offices: have a need to connect to cloud applications such as Microsoft 365.
Retail stores and bank branches: Required to provide 4G/5G failover functionality for POS/ATM transactions.
Managed Service Providers (MSPs): Ship routers directly to your customers. Customers simply need to plug in the power, and the device will automatically complete the configuration.
1.2 Key Pain Points Solved
Performance: Delivers up to 500 Mbps of IPsec SD-WAN throughput, ensuring zero-latency operation of cloud applications.
Connectivity: Dynamically route traffic between broadband, MPLS and 5G links.
Security: Hardware-based Secure Boot and Cisco Trust Anchor technology work together to protect the network perimeter of branch offices.
2.Hardware Deep Dive: Ports, Slots, and Throughput
You cannot choose a router without mapping its physical interfaces to your WAN/LAN strategy. The “1N-4T” nomenclature tells you exactly what you get.
2.1Quick Specs Overview
WAN/LAN Ports: 4×1G (2×RJ-45 Copper + 2×SFP Fiber
Module Slots: 1x NIM (Network Interface Module) + 1x PIM (Pluggable Interface Module for LTE/5G)
Memory / Storage: 4 GB RAM / 8 GB Flash
Form Factor: 1RU Desktop or Rack-mountable (1.73 x 17.25 x 11.8 inches)
3.Security and SD-WAN Features (The Business Benefit)
For business leaders, security should never be considered as an afterthought. The Cisco Catalyst C8200L-1N-4T is a core component of Cisco Secure Access Service Edge (SASE) and SD-WAN architectures.
3.1 Enterprise-Grade Security
Hardware Root of Trust: Cisco Trust Anchor technologies prevent firmware tampering.
Integrated Firewall: Layer 7 enterprise firewall to protect the branch perimeter.
Encryption: Advanced encryption for IPsec tunnels.
3.2SD-WAN Intelligence
Driven by a powerful multi-core x86 CPU, the router provides the ultimate flexibility to route traffic using traditional Cisco IOS XE protocols or transition to a centralized, software-defined WAN model via Cisco vManage.
Dynamic Path Control: Automatically steers traffic across MPLS, broadband, and LTE.
Cloud On-ramp: Accelerates performance for Microsoft 365 and Salesforce.
Benefit: Reduces WAN costs by replacing MPLS links with broadband.
4.Ideal Application Scenarios
Theoretical specs are useless without use cases. Here is exactly where the C8200L-1N-4T excels:
Scenario A: Small to Medium Branch Offices
Challenge: Slow access to cloud SaaS.
Solution: This router can intelligently switch between broadband and MPLS to ensure that Microsoft 365 runs smoothly without any delay.
Scenario B: Retail Stores & Bank Branches
Challenge: WAN link failure stops credit card transactions.
Solution: Insert a 5G PIM (P-5GS6-GL) into the PIM slot. The router provides cellular backup, ensuring POS and ATM transactions never go offline even if the primary broadband fails.
Scenario C: Managed IT Services (MSP CPE)
Challenge: Expensive truck rolls to install routers at remote sites.
Solution: An affordable, easily managed CPE device that MSPs can drop-ship to clients and provision remotely via zero-touch deployment.
5.Installation, Maintenance, and Form Factor
Compact and quiet design: With its compact 1RU form factor and highly optimized thermal design, the device can operate quietly and without interference.
Operating system support: Cisco IOS XE operating system. Users can choose to run the device in either “Traditional” mode (autonomous mode) or “SD-WAN” mode (controller mode).
In-House vs. Professional Help：Due to the complexity of SD-WAN policies and NIM/PIM insertion, medium enterprises may use a Cisco partner for initial setup. However, MSPs will appreciate the zero-touch deployment capabilities, allowing them to ship the router directly to the branch where it auto-provisions.
6.FAQ
Q1: What does “1N-4T” mean in the model number?
A: “1N” means the router has 1 slot for a Network Interface Module (NIM). 4T” means the router has 4 integrated Gigabit Ethernet ports (two RJ-45 copper and two SFP fiber) for WAN and LAN connectivity.
Q2: What can I add with the NIM slot?
A: You can add legacy T1/E1 ports, extra LAN ports (4 or 8 ports), or voice features. It lets you expand the router as your needs grow.
Q3: How fast is this router?
A: It delivers up to 500 Mbps of IPsec throughput for SD-WAN and up to 1.5 Gbps for regular IPv4 routing. Plenty for small to medium branch offices.
7.Conclusion
With four 1G ports, an NIM slot for expansion, and a PIM slot for 5G connectivity, the Cisco Catalyst C8200L-1N-4T strikes a perfect balance between cost, performance, and flexibility, making it ideal for small and medium-sized business branch offices.
Whether you’re a bank that needs backup for transactions or an MSP managing remote clients, this router gives you solid routing, security, and multi-cloud access—without costing a fortune. If you are interested in our products, please feel free to contact us for a quote.
