Introduction

Small and medium-sized businesses are under siege. Ransomware, phishing, and zero-day attacks are no longer concerns solely for large enterprises. In fact, some attackers specifically target SMBs because they often lack enterprise-grade security. At the same time, small businesses now depend more than ever on cloud applications (Microsoft 365, Google Workspace), video conferencing, and hybrid work models. Traditional firewalls or router-based security are no longer sufficient. That’s why a purpose-built NGFW with integrated SD-WAN is essential — the Fortinet FortiGate 40F (FG-40F) is built for this exact scenario.

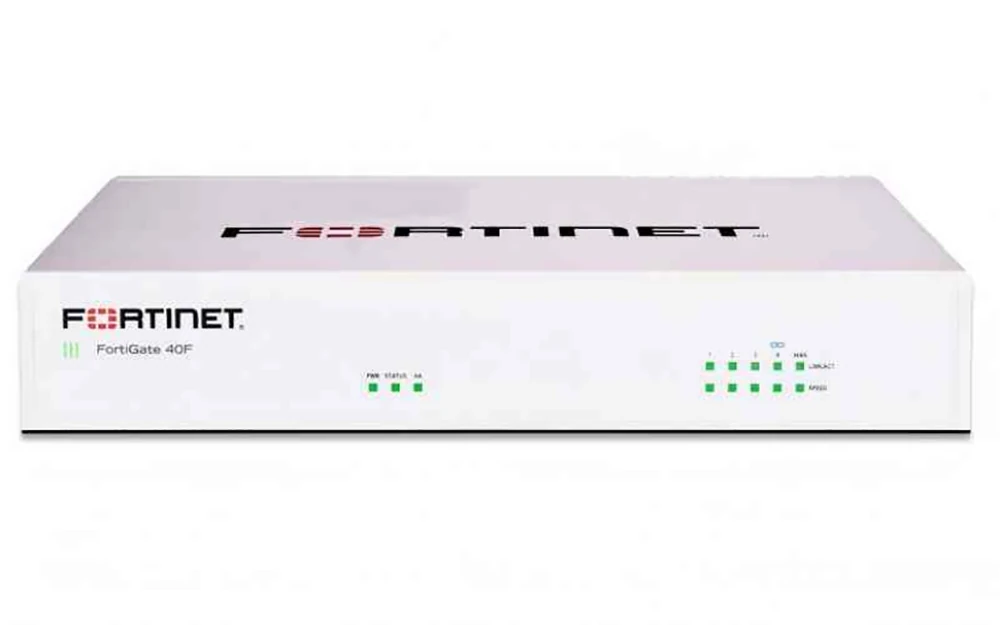

What Is FortiGate 40F

Overview of the FortiGate 40F Next-Generation Firewall

The FortiGate 40F next generation firewall is a compact desktop NGFW that combines firewall, secure SD-WAN, routing, and advanced security — all in one cost-effective appliance. Built on Fortinet’s custom Secure SD-WAN ASIC (SP4), it eliminates the performance bottlenecks of traditional CPU-based firewalls. It runs FortiOS — the industry’s first operating system that converges networking and security. As a core part of the Fortinet Security Fabric, it works seamlessly with FortiGuard AI-driven services to deliver real-time threat protection. The FG-40F is fanless, wall-mountable, and purpose-built for small businesses, branch offices, and retail locations with 30–50 users.

Key Specifications and Performance Highlights

The FG-40F delivers 5 Gbps firewall throughput and 800 Mbps NGFW performance. It provides 1 Gbps IPS throughput and 600 Mbps threat protection. For VPN, it delivers 4.4 Gbps IPsec throughput and 490 Mbps SSL-VPN throughput, with up to 200 gateway-to-gateway tunnels. Concurrent TCP sessions reach up to 700,000. All of this runs at a maximum power consumption of just 9.46W, with 0 dBA noise from its fanless design.

Why Is FortiGate 40F Ideal for Small Businesses

Designed for Offices with 30–50 Users

The FG-40F NGFW firewall is optimized for 30 to 50 concurrent users — right in the sweet spot for small business offices, retail stores, and branch locations. It handles mixed traffic patterns like virtualized applications, SaaS platforms, and video conferencing, all without slowing down.

Compact Fanless Design for Quiet Deployment

The FG-40F measures only 38.5 × 216 × 160 mm and weighs 1 kg. Its fanless design enables silent operation at 0 dBA, making it ideal for open-plan offices, retail environments, or wall-mounted deployments where quiet operation is required. The wall-mountable form factor also saves valuable desk or rack space.

Affordable Enterprise-Grade Security

Despite its compact size and low price point, the FG-40F delivers enterprise-grade security powered by Fortinet’s SP4 ASIC and FortiGuard AI-driven services. These include IPS, anti-malware, SSL/TLS 1.3 inspection, URL and DNS filtering, and zero-day threat prevention. So small businesses no longer need to compromise between cost and protection.

Advanced Security Features of FortiGate 40F

Intrusion Prevention System (IPS)

The FG-40F business firewall delivers 1 Gbps of IPS throughput. It inspects traffic in real time, blocking known and emerging exploits before they can reach your critical assets. FortiGuard IPS is continuously updated to protect against the latest vulnerabilities.

AI-Powered Malware and Ransomware Protection

FortiGuard anti-malware technology uses artificial intelligence to block ransomware, phishing, and file-based attacks, protecting small businesses from common and highly destructive threats.

SSL/TLS Inspection for Encrypted Traffic

Today, over 80% of network traffic is encrypted, and attackers frequently hide malware inside it. The FG-40F solves this by performing full TLS 1.3 inspection at up to 310 Mbps — giving you clear visibility into encrypted traffic without slowing down your network or breaking compliance. All from a single device, helping you meet GDPR, HIPAA, and other regulatory requirements while blocking threats hidden in SSL/TLS tunnels.

Web Filtering and DNS Security

URL and DNS filtering capabilities block malicious, phishing, or inappropriate websites, thereby reducing the risk of “drive-by downloads” and credential theft.

Zero-Day Threat Detection and Prevention

FortiGuard AI-powered security services can block previously unseen attacks in real time. The FG-40F does not rely solely on signature updates. Behavioral analysis and cloud-based threat intelligence catch never-before-seen threats.

How FortiGate 40F Improves Business Network Performance

High-Speed Firewall Throughput

With 5 Gbps firewall throughput, the FG-40F easily handles the total internet traffic of a 30–50 user office, including bandwidth-heavy applications like video conferencing and cloud backups.

Low Latency with SP4 ASIC Technology

Traditional firewalls use general-purpose CPUs, which introduce latency under load. Fortinet’s custom SP4 ASIC processes security operations in hardware. This means wire-speed performance with minimal latency, even with IPS and SSL inspection enabled.

Reliable Performance for Cloud Applications and Video Conferencing

The FG-40F ensures consistent performance for SaaS applications such as Microsoft 365, Google Workspace, and Zoom. Integrated SD-WAN further optimizes traffic routing to avoid congestion and jitter.

Integrated Secure SD-WAN for Modern Businesses

Optimizing Application Performance Across Multiple Links

Secure SD-WAN is native to the FG-40F at no extra cost. It continuously monitors link quality (latency, jitter, packet loss) and dynamically routes application traffic over the best available path. This ensures that critical applications like VoIP and video meetings perform reliably.

Reducing WAN Costs with Broadband and LTE Failover

Traditional WAN architectures force businesses to use expensive MPLS circuits. The FG-40F’s SD-WAN allows you to use broadband internet and LTE as primary or backup links. If a link fails, traffic automatically fails over to another connection, maintaining business continuity at a fraction of the cost.

Improving Branch-to-Cloud Connectivity

For branch offices, the FG-40F supports direct access to the cloud without having to send traffic back to the central data center. Branch offices can connect directly to SaaS and cloud platforms and enforce security on-site, reducing latency and improving the user experience.

Secure Remote Work and VPN Capabilities

SSL VPN for Remote Employees

The FG-40F provides 490 Mbps SSL-VPN throughput, allowing remote employees to securely access internal resources from anywhere. It also supports ZTNA (Zero Trust Network Access) controls for application-level access.

High-Performance IPsec VPN Connectivity

With 4.4 Gbps IPsec throughput and support for up to 200 tunnels, the FG-40F can connect multiple branch offices, cloud VPCs, and partner networks securely over the internet.

Supporting Hybrid Work Environments

Hybrid work requires consistent security whether employees are in the office, at home, or on the road. The FG-40F hardware firewall integrates with FortiClient for endpoint security and provides seamless VPN and SD-WAN policies across all locations.

Simplified Network Management with FortiOS

Centralized Management

FortiOS unifies firewall, SD-WAN, routing, and switching into a single operating system. You manage everything through one interface.

Real-Time Visibility

Real-time dashboards show application usage and security threats. Logs and alerts help you identify issues before they impact users.

Extending Security with the Fortinet Security Fabric

FortiSwitch Integration: The FG-40F can manage up to eight FortiSwitch units, extending NGFW security policies directly to the LAN edge.

FortiAP Integration: The FG-40F can also support up to 16 FortiAPs via FortiLink, applying the same security policies to your Wi-Fi.

Common Use Cases for FortiGate 40F

Small Business Offices

All-in-one security for offices with 30–50 users. Protects against malware, ransomware, and phishing. Supports SaaS applications and video conferencing.

Retail Stores and Point-of-Sale Networks

The fanless, compact design allows wall-mounting behind counters. The FG-40F secures POS systems, customer Wi-Fi, and surveillance cameras. SD-WAN with LTE failover keeps payment processing online even if the primary connection fails.

Branch Offices

Branch offices connect back to HQ or directly to the cloud using secure SD-WAN and IPsec VPN. FortiLink manages local FortiSwitches and FortiAPs from a single console.

Remote and Hybrid Workforces

SSL-VPN and ZTNA provide secure remote access. FortiClient integration extends endpoint protection. SD-WAN optimizes cloud application performance for remote workers.

IoT and Edge Network Security

Secures IoT and OT devices such as cameras, sensors, and access controllers. IoT detection and virtual patching protect devices that cannot run traditional endpoint security. Low power consumption (max 9.46W) makes it ideal for remote edge locations.

FortiGate 40F vs Traditional Firewalls

Traditional firewalls rely on general-purpose CPUs, which struggle when multiple security features are enabled. As soon as you turn on IPS, SSL inspection, or malware scanning, throughput often drops by 70–80%. The FG-40F uses a custom SP4 ASIC that processes security functions in hardware, maintaining near-wire-speed performance with all features enabled. Traditional firewalls also lack native SD-WAN, forcing businesses to buy separate appliances or pay expensive licensing. The FG-40F includes secure SD-WAN at no extra cost. Finally, traditional firewalls cannot integrate switching and wireless management, leaving LAN and Wi-Fi segments less protected. The FG-40F, as part of the Fortinet Security Fabric, manages FortiSwitches and FortiAPs through the same FortiOS interface.

Frequently Asked Questions

How many users can FortiGate 40F support?

It is optimized for 30 to 50 concurrent users in SMB or branch environments.

Does FortiGate 40F include secure SD-WAN?
Yes, secure SD-WAN is native and included at no extra cost.

Can FortiGate 40F protect against ransomware?
Yes. FortiGuard AI-powered anti-malware, IPS, and zero-day protection block ransomware and phishing attacks.

Is FortiGate 40F suitable for remote workers?
Yes. It provides 490 Mbps SSL-VPN throughput and supports ZTNA for secure remote access.

What makes FortiGate 40F different from traditional firewalls?
It uses a custom SP4 ASIC for hardware-accelerated performance, includes native SD-WAN, and integrates switching/wireless management through FortiLink.

Does FortiGate 40F support high availability?
Yes. HA support is available for critical branch deployments.

Does FortiGate 40F have built in WiFi?

The standard FortiGate 40F model does not include built in WiFi — it is a wired NGFW.

Conclusion: Is FortiGate 40F the Right Firewall for Your Small Business?

The FortiGate 40F is a device tailored for small businesses, retail outlets, branch offices, and edge sites with 30 to 50 users. It delivers enterprise-grade security—including IPS, anti-malware, TLS 1.3 traffic inspection, and zero-day threat protection—along with integrated Secure SD-WAN capabilities and unified switching and wireless management via FortiLink. Featuring a fanless, low-power design (maximum power consumption of 9.46W) and silent operation (0 dBA), it is ideally suited for deployment in quiet environments or space-constrained locations. The FortiGate 40F is an ideal choice for small businesses seeking robust security, optimized cloud application performance, and simplified management without the high costs typically associated with enterprise-grade solutions.
