Comprehensive Product Overview

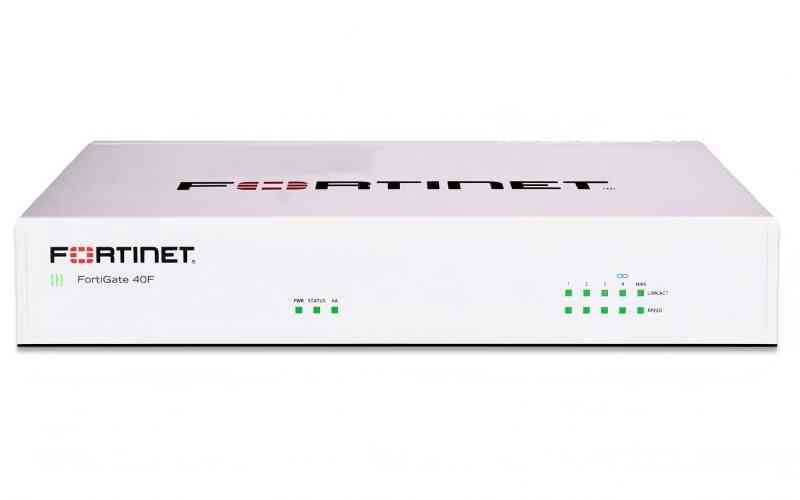

The Fortinet FortiGate 40F (FG-40F) is a desktop-form-factor NGFW that unifies firewalling, secure SD-WAN, routing, and advanced security into a single, cost-effective appliance. Built on Fortinet’s custom Secure SD-WAN ASIC (SP4), it eliminates the performance bottlenecks of traditional CPU-based firewalls, delivering high-speed security processing with ultra-low power consumption (max 9.46W).

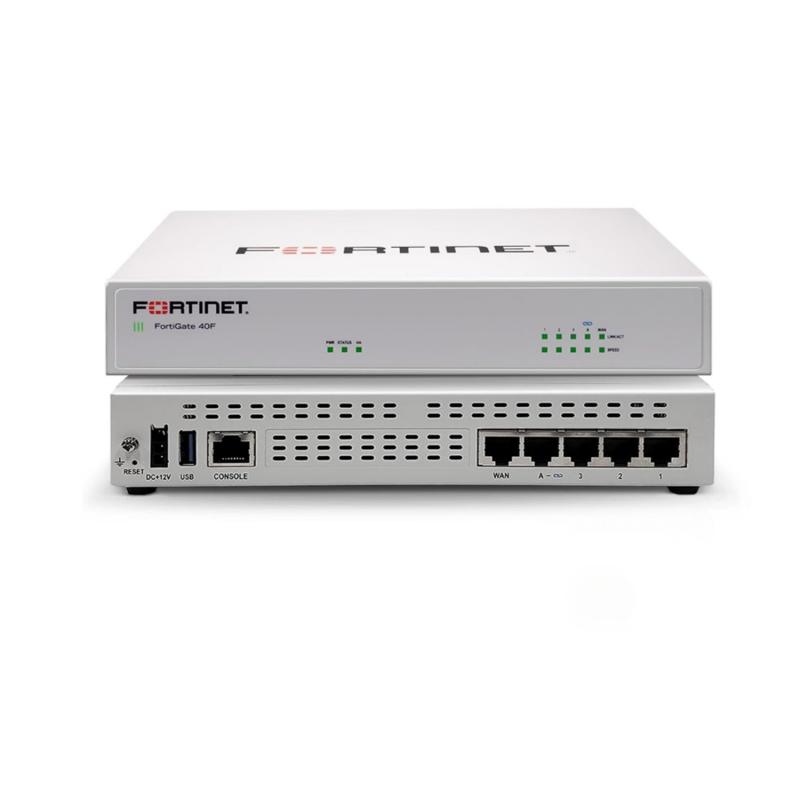

Engineered for small-to-medium businesses (SMB) and distributed enterprise branches, the FG-40F features a fanless design (0 dBA noise) for silent operation in offices, retail, or wall-mounted deployments. It includes 5x GE RJ45 ports (1x WAN, 3x internal, 1x FortiLink) for flexible connectivity, plus a USB port and console port for management.

As a Gartner Magic Quadrant Leader for Network Firewalls and SD-WAN, the FG-40F runs FortiOS—the industry’s first converged networking and security OS. It natively supports FortiGuard AI-Powered Security Services, including IPS, anti-malware, URL/DNS filtering, and zero-day threat prevention, delivering coordinated, end-to-end threat protection across hybrid environments. The FG-40F also supports FortiSwitch and FortiAP integration via FortiLink, enabling unified security for LAN/WLAN edges.

Key Features & Business Benefits

1. Fanless Compact Design (0 dBA Noise)
   • Fanless, lightweight (1kg) desktop form factor; wall-mountable.
   • Business Benefit: Silent operation for office/retail spaces; space-saving deployment; high reliability (superior MTBF) minimizes network downtime.
2. Patented SP4 ASIC & High Performance
   • 5 Gbps firewall throughput; 800 Mbps NGFW; 1 Gbps IPS; 600 Mbps threat protection.
   • Business Benefit: Wire-speed security processing without latency; handles 30–50 users with mixed traffic (virtualization, SaaS, video) efficiently.
3. Integrated Secure SD-WAN & VPN
   • Native SD-WAN; 4.4 Gbps IPsec VPN; 490 Mbps SSL-VPN; 200+ VPN tunnels.
   • Business Benefit: Secure hybrid work with seamless branch-to-cloud connectivity; optimizes SaaS application performance; reduces WAN costs via broadband/LTE failover.
4. FortiGuard AI-Driven Security
   • Real-time IPS, anti-malware, SSL/TLS 1.3 inspection, URL/DNS filtering, zero-day protection.
   • Business Benefit: Blocks ransomware, phishing, and zero-day attacks; meets compliance (GDPR, HIPAA); reduces breach risk with AI-powered threat intelligence.
5. FortiLink Unified Edge Security
   • 1x FortiLink port; supports up to 8x FortiSwitches and 16x FortiAPs.
   • Business Benefit: Extends NGFW security to LAN/Wi-Fi; simplifies management of switches/APs via single FortiOS; eliminates security silos.
6. Low Power & Eco-Friendly
   • Max 9.46W power consumption; 100–240V AC adapter; EPD compliant (ISO 14025).
   • Business Benefit: Cuts electricity costs; reduces carbon footprint; ideal for remote locations with limited power.

Technical Specifications

Ideal Application Scenarios

1. Small Business (30–50 Users)
   • All-in-one security for offices; protects against malware, ransomware, and phishing; supports SaaS (Microsoft 365, Google Workspace) and video conferencing.
2. Retail & Branch Offices
   • Fanless, compact design for wall-mounting; secure POS systems and customer Wi-Fi; SD-WAN connects branches to HQ/cloud; LTE failover for redundant connectivity.
3. Remote & Hybrid Work
   • SSL-VPN for secure remote access; ZTNA controls app access; SD-WAN optimizes cloud app performance; integrates with FortiClient for endpoint security.
4. Distributed Enterprise Edges
   • Extends Security Fabric to branches; FortiLink manages FortiSwitches/FortiAPs; centralized management via FortiManager; HA support for critical branches.
5. Edge Computing & IoT
   • Secures IoT/OT devices (cameras, sensors); IoT detection and virtual patching; low power for remote edge locations.

Supported Accessories & Modules

• Mounting: Wall Mount Kit (SP-FG60F-MOUNT-20); Rack Mount Tray (SP-RACKTRAY-02).
• Power: AC Power Adapter (SP-FG-40F-PA-10) (100–240V, interchangeable plugs).
• Wireless: FortiAP Wi-Fi Access Points (up to 16 total, 8 tunnel mode).
• Switching: FortiSwitch Managed Switches (up to 8 units via FortiLink).
• Security: FortiGuard Security Subscriptions (IPS, Anti-Malware, URL Filtering, Zero-Day Protection).
• Management: FortiGate Cloud License; FortiManager License (centralized management).

Frequently Asked Questions (FAQ)

Q1: What is the user capacity of the FortiGate 40F?

A1: Optimized for 30–50 concurrent users (SMB/branch environments).

Q2: Does the FG-40F support SSL/TLS 1.3 inspection?

A2: Yes, it provides full TLS 1.3 inspection (310 Mbps throughput) for encrypted traffic visibility.

Q3: Can the FG-40F be wall-mounted?

A3: Yes, it includes a wall-mount kit (optional accessory) for flexible deployment.

Q4: What is the power consumption of the FG-40F?

A4: Max 9.46W (average 7.74W) with an external 100–240V AC adapter.

Q5: Does the FG-40F support SD-WAN?

A5: Yes, secure SD-WAN is native (no extra cost) for hybrid WAN connectivity and cloud optimization.

Q6: What is the warranty for the FortiGate 40F?

A6: 1-year hardware warranty; optional FortiCare Premium/Elite support (24/7, NBD replacement).

Q7: Can the FG-40F manage Wi-Fi access points?

A7: Yes, via FortiLink it supports up to 16 FortiAPs (8 tunnel mode) for unified Wi-Fi security.
