Comprehensive Product Overview

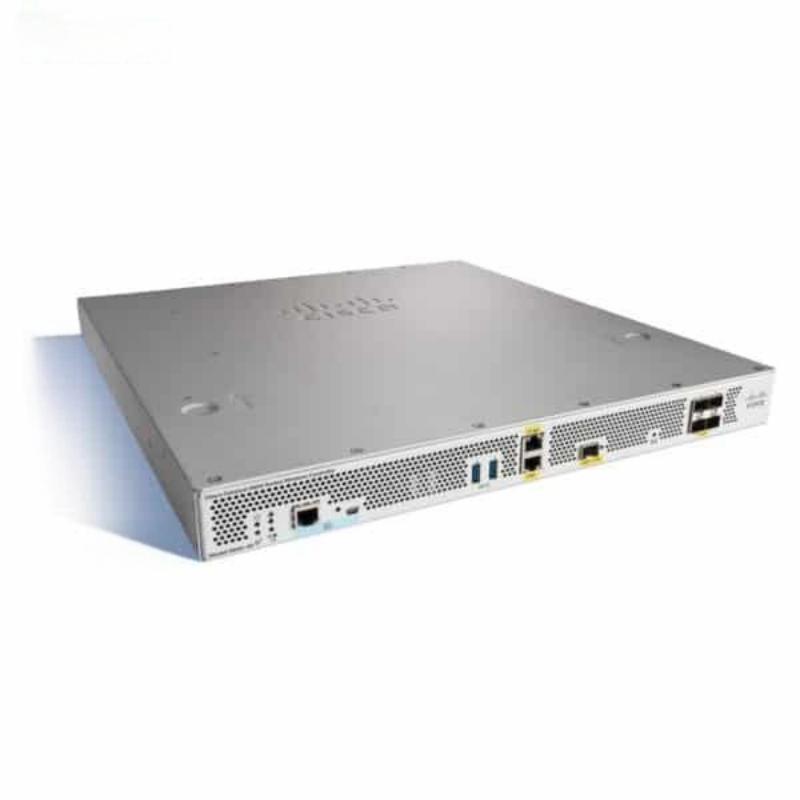

The Cisco C9800-40-K9 is a flagship fixed wireless controller from the Catalyst 9800 Series, purpose-built for modern, large-scale enterprise wireless networks. It is engineered to address the exponential growth of mobile devices, IoT, and bandwidth-intensive applications, providing a robust, secure, and scalable foundation for Wi-Fi 6 (802.11ax) and legacy Wi-Fi deployments.

At its core, the C9800-40-K9 leverages the Cisco IOS XE operating system, which unifies wired and wireless management, enabling seamless integration with Cisco’s intent-based networking architecture (Cisco DNA). This controller supports a massive scale, managing up to 2000 access points (APs) and 32,000 concurrent clients with a total throughput capacity of 40 Gbps, making it ideal for large campuses, multi-building enterprises, and high-density environments.

A key architectural advantage is its always-on resiliency. Featuring In-Service Software Upgrade (ISSU), hot/cold patching, and 1:1 Stateful Switchover (SSO), the controller ensures zero downtime for client sessions and critical services during maintenance or hardware failures. This is critical for mission-critical operations where network continuity is paramount.

Security is embedded at every level. The C9800-40-K9 provides a comprehensive security framework including Secure Boot, Cisco Trust Anchor, WPA3 support, Encrypted Traffic Analytics (ETA), and integrated Wireless Intrusion Prevention System (WIPS). It also integrates with Cisco Software-Defined Access (SD-Access), creating a zero-trust security perimeter for wireless users and devices.

Designed for flexibility, the controller supports multiple deployment modes: Centralized, Cisco FlexConnect, and Fabric Wireless (SD-Access). This allows it to be deployed on-premises, in the cloud, or as part of a hybrid architecture, adapting to diverse network topologies and business requirements.

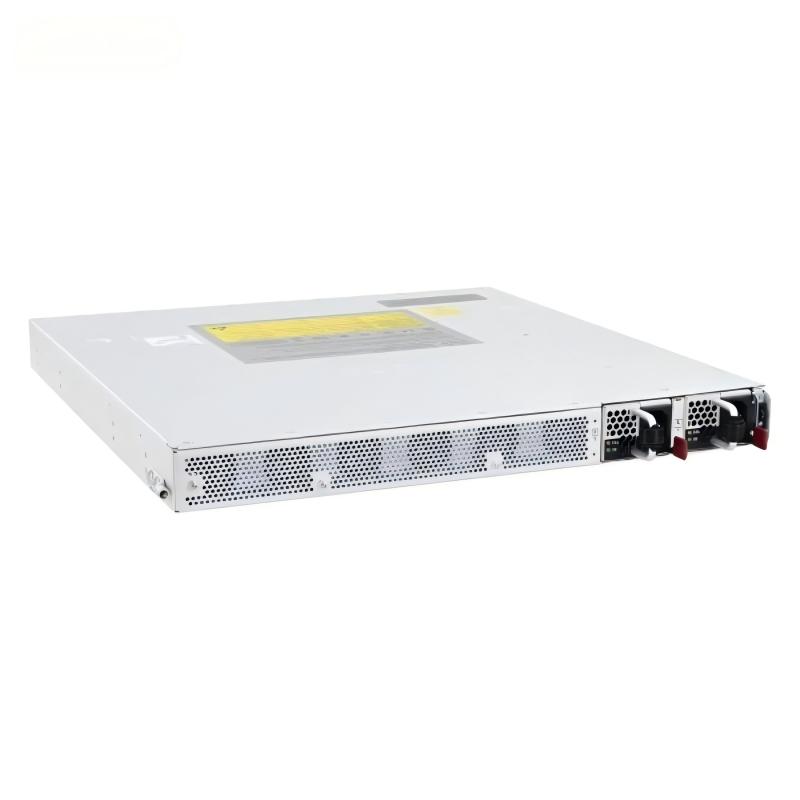

With a compact 1RU form factor, the C9800-40-K9 optimizes rack space in data centers and wiring closets. It features 4 x 10G/1G SFP+/SFP data ports and a dedicated 1G management port, offering high-speed uplink connectivity and efficient traffic handling. The controller is also highly programmable, supporting open APIs (NETCONF/RESTCONF) and YANG models for automation and integration with third-party management systems.

Key Features & Business Benefits

Technical Specifications

Ideal Application Scenarios

1. Large Enterprise Campuses & Headquarters
   • Manages wireless networks across multi-building campuses, supporting thousands of employees, guests, and IoT devices with reliable, high-speed Wi-Fi 6 connectivity.
2. Data Center Wireless Backhaul
   • Provides secure, high-throughput wireless connectivity for data center edge devices, IoT sensors, and mobile workstations in modern, software-defined data centers.
3. Service Provider & Managed Service Networks
   • Enables service providers to deliver managed Wi-Fi services to enterprise clients, offering scalable, secure, and centrally managed wireless infrastructure.
4. High-Density Public Venues
   • Supports dense wireless environments like convention centers, airports, and stadiums, ensuring consistent performance for a massive number of concurrent users.
5. Healthcare & Education Institutions
   • Delivers secure, reliable wireless for critical healthcare applications (e.g., patient monitoring) and educational environments (e.g., 1:1 device learning), meeting strict compliance and performance requirements.
6. Retail & Hospitality
   • Powers seamless guest Wi-Fi, point-of-sale (POS) systems, and inventory management IoT devices in large retail chains and hotel complexes.

Supported Accessories & Modules

Transceiver Modules (SFP/SFP+)

• 10GBASE-SR SFP+: Short-reach (up to 300m) over OM3/OM4 MMF (e.g., SFP-10G-SR-S)
• 10GBASE-LR SFP+: Long-reach (up to 10km) over SMF (e.g., SFP-10G-LR-S)
• 1GBASE-SX SFP: Short-reach (up to 550m) over MMF (e.g., GLC-SX-MMD)
• 1GBASE-LX/LH SFP: Long-reach (up to 10km) over SMF (e.g., GLC-LH-SMD)

Cabling & Connectivity

• Duplex SMF/MMF Patch Cords: LC/LC, SC/LC for SFP/SFP+ ports
• Cat6a/Cat7 Ethernet Cables: For management and redundancy ports
• Fiber Optic Cleaning Kits: For optimal transceiver performance

Rack & Power Accessories

• 1RU Rack Mount Kits: Standard 19” rack mounting hardware
• Redundant AC Power Supplies: Spare power supplies for 1+1 redundancy (e.g., C9800-40-PWR-AC)
• Power Cords: Region-specific AC power cords

Related Cisco Products

• Cisco Catalyst 9100 Series Access Points: Wi-Fi 6 APs (9105, 9115, 9120) optimized for C9800 controllers
• Cisco DNA Center: Central management, automation, and assurance platform
• Cisco Prime Infrastructure: Traditional wired/wireless network management tool
• Cisco 9800-80-K9: Higher-capacity 2RU controller (80Gbps, 6000 APs) for ultra-large deployments

Frequently Asked Questions (FAQ)

Q: What is the maximum number of APs and clients the C9800-40-K9 supports?

A: The C9800-40-K9 supports up to 2,000 access points and 32,000 concurrent wireless clients with a total throughput of 40 Gbps.

Q: Is the C9800-40-K9 compatible with older Cisco APs?

A: Yes. It fully supports Cisco Aironet 802.11ac Wave 1/2 APs and the latest Catalyst 9100 Series Wi-Fi 6 (802.11ax) APs, ensuring seamless migration and coexistence.

Q: Does the controller support non-stop software upgrades?

A: Yes. It features In-Service Software Upgrade (ISSU) and hot/cold patching, allowing software updates without dropping client sessions or disrupting network services.

Q: What security features are built into the C9800-40-K9?

A: It includes Secure Boot, Cisco Trust Anchor, WPA3, Encrypted Traffic Analytics (ETA), integrated WIPS, and deep integration with Cisco SD-Access for end-to-end zero-trust security.

Q: Can the C9800-40-K9 be deployed in the cloud?

A: Yes. It supports cloud-based deployment and management via Cisco DNA Center, enabling centralized control of distributed on-premises and cloud wireless networks.

Q: What is the form factor and rack space requirement?

A: The C9800-40-K9 is a compact 1RU (1 Rack Unit) device, fitting into standard 19” data center racks to maximize space efficiency.

Q: Does it support high availability (HA)?

A: Yes. It supports 1:1 Stateful Switchover (SSO) for active/standby redundancy, ensuring automatic failover and zero downtime if one controller fails.

Q: What management interfaces are available?

A: It can be managed via Cisco DNA Center, Cisco Prime Infrastructure, a built-in WebUI, CLI, and open APIs (NETCONF/RESTCONF) for automation and third-party integration.

Q: What is the power requirement and consumption?

A: It uses dual AC power supplies (100–240V) with optional 1+1 redundancy. Maximum power consumption is 381W under full load.

Q: How does the C9800-40-K9 differ from the C9800-80-K9?

A: The C9800-40-K9 is a 1RU controller with 40Gbps throughput, supporting 2000 APs. The C9800-80-K9 is a 2RU model with 80Gbps throughput, supporting up to 6000 APs for larger networks.
