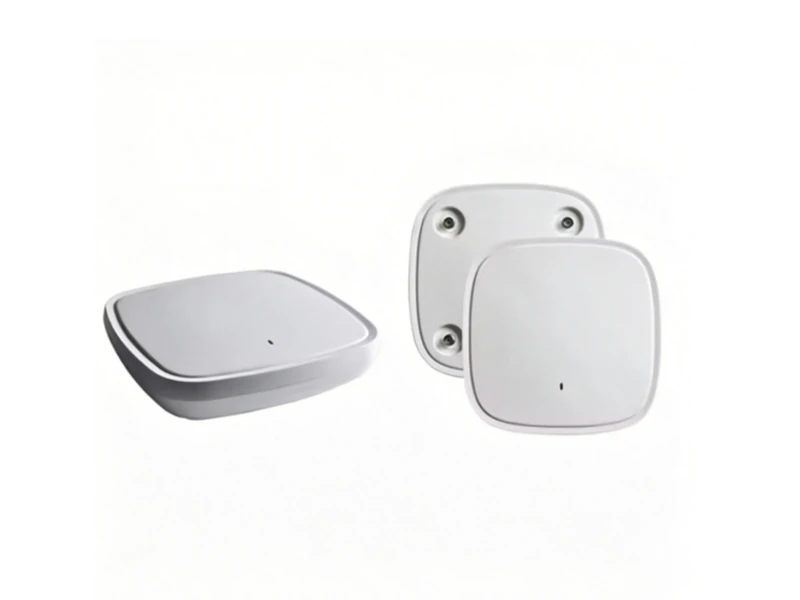

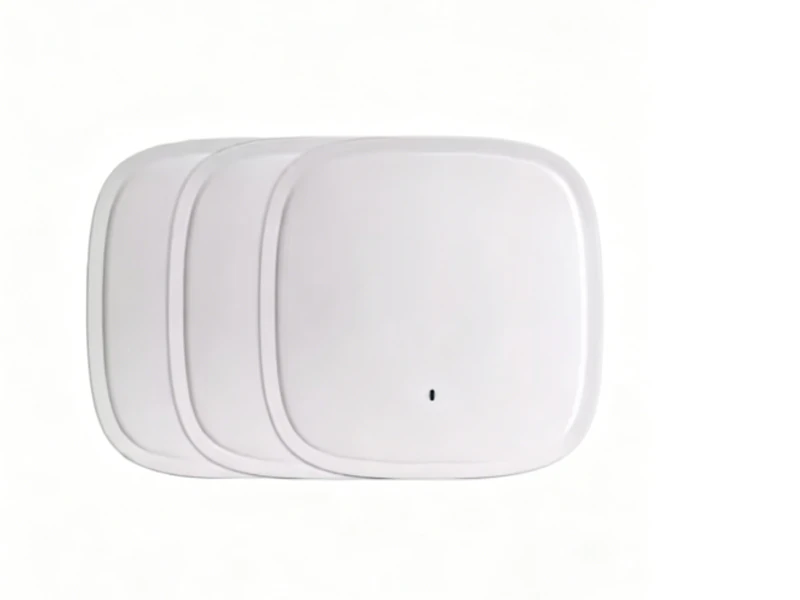

The Cisco Catalyst C9130AXI is a flagship Wi-Fi 6 access point built for ultra-high-density environments. Featuring an 8x8 MU-MIMO 5GHz radio, Custom RF ASIC, and 5G mGig uplink, it delivers unparalleled capacity, security, and performance for enterprise networks.
Quick Specs:
· Wi-Fi Standard: Wi-Fi 6 (802.11ax)
· Radios: 5GHz (8x8) + 2.4GHz (4x4) OR Tri-Radio Mode + RF ASIC
· Antennas: Internal Omnidirectional
· Uplink: 1x 5Gbps Multigigabit (mGig)
· Power: 802.3bt (UPOE/PoE++) Recommended
· IoT Ready: Integrated Bluetooth 5.0 (BLE)
Comprehensive Product Overview
The Cisco Catalyst C9130AXI represents the pinnacle of Cisco’s Wi-Fi 6 (802.11ax) portfolio. Engineered specifically for organizations that demand the absolute highest wireless performance, this flagship access point is built to handle ultra-dense environments—such as large auditoriums, university lecture halls, stadiums, and crowded corporate headquarters—without breaking a sweat. Equipped with a massive 8×8:8 spatial stream architecture on the 5 GHz band, the C9130AXI can serve twice as many concurrent clients as standard enterprise APs. When combined with Cisco’s Custom RF ASIC for real-time spectrum intelligence, Flexible Radio Assignment (FRA) for Tri-Radio operations, and an ultra-fast 5-Gigabit Ethernet uplink, this access point guarantees a flawless, zero-bottleneck experience for 4K/8K video streaming, AR/VR applications, and massive IoT deployments.
Key Features & Business Benefits
Massive 8×8 MU-MIMO Capacity: The 5 GHz radio supports 8 spatial streams, doubling the throughput and client capacity of standard 4×4 APs. This allows the network to process massive amounts of concurrent data from hundreds of smartphones and laptops with ultra-low latency.
Tri-Radio Mode via FRA: Thanks to Flexible Radio Assignment, the massive 8×8 5GHz radio can intelligently split into two separate 4×4 5GHz radios. Combined with the 2.4GHz radio, the AP operates in a Tri-Radio mode, maximizing channel utilization in ultra-dense client areas.
Ultra-Fast 5G mGig Uplink: A standard 1G or even 2.5G port cannot handle the theoretical throughput of an 8×8 Wi-Fi 6 AP. The C9130AXI is equipped with a 5 Gbps Multigigabit (mGig) port, ensuring wired backhaul speeds match the blazing-fast wireless speeds.
Custom RF ASIC for Advanced Security: Features a dedicated, programmable 3rd radio that continuously monitors the RF environment. It provides real-time Cisco CleanAir® interference mitigation and Wireless Intrusion Prevention (wIPS) without degrading user traffic.
Enhanced Battery Life for IoT: By utilizing Target Wake Time (TWT), the AP intelligently schedules client communications, significantly conserving the battery life of connected mobile devices and IoT sensors.
Ultra-Dense Public Venues: Perfect for convention centers, airport terminals, and indoor stadiums where thousands of users are concurrently trying to access high-bandwidth applications.
Higher Education Lecture Halls: Effortlessly supports hundreds of students simultaneously streaming educational videos, taking online exams, or downloading large files in a single room.
Heavy R&D and Engineering Campuses: Provides the massive throughput and zero-latency required for wireless Augmented Reality (AR), Virtual Reality (VR), and advanced CAD modeling environments.
Supported Accessories & Power Infrastructure
Crucial Note: To unlock the full power of the C9130AXI, your switching infrastructure must support UPOE. Cisco Catalyst 9300 / 9400 Series Switches: Ensure you use models supporting 802.3bt UPOE (e.g., C9300-48U-E) and mGig ports. AIR-PWRINJ7=: Cisco Multi-Gigabit 802.3bt Power Injector (Required if your current switches only support standard PoE+). AIR-AP-BRACKET-1= / AIR-AP-BRACKET-2=: Standard mounting brackets for drop ceilings or solid walls.
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between the Catalyst 9120 and 9130?
A1: The C9130AXI is significantly more powerful. While the 9120 has a 4×4 5GHz radio and a 2.5G uplink, the 9130 boasts a massive 8×8 5GHz radio (which can be split into two 4×4 5GHz radios) and a faster 5G mGig uplink, making it the choice for ultra-high-density deployments.
Q2: What happens if I plug the C9130AXI into a standard 802.3at (PoE+) switch?
A2: The AP will boot and function, but in a degraded mode. Because the 8×8 radio and 5G mGig port draw significant power, connecting it to a 30W PoE+ switch will typically cause the AP to downgrade its 5GHz radio to 4×4 and reduce its ethernet uplink speed. 802.3bt (UPOE) providing 60W is strongly recommended.
Q3: Does the C9130AXI support the Embedded Wireless Controller (EWC)?
A3: Yes. Like the rest of the Catalyst 9100 family, the C9130AXI can run the Cisco EWC software, allowing it to act as a controller for up to 100 other APs in a branch environment without needing a physical Catalyst 9800 appliance.
Q4: Does the “I” in the part number mean it can only be used indoors?
A4: The “I” stands for Internal Antennas. While it is primarily designed for indoor carpeted enterprise environments, the main distinction is that it does not have external antenna connectors. (If you need to attach directional stadium antennas, you need the C9130AXE).
Q5: What is Tri-Radio mode?
A5: Using Cisco’s Flexible Radio Assignment (FRA), the physical 8×8 5GHz radio inside the C9130AXI can be divided into two separate, independent 4×4 5GHz radios. Along with the dedicated 2.4GHz radio, the AP essentially operates three separate client-serving radios simultaneously to maximize capacity in crowded rooms.
