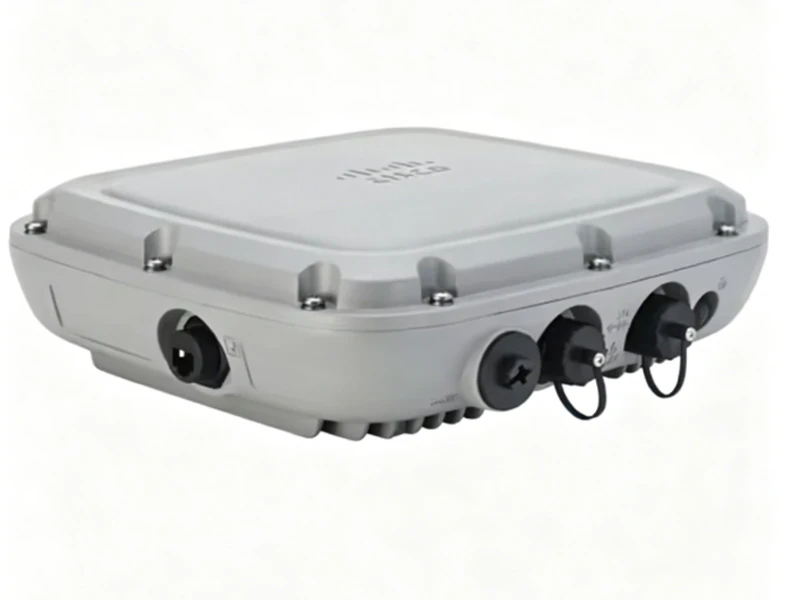

Cisco Catalyst C9124AXE Outdoor Wi-Fi 6 Access Point
The Cisco Catalyst C9124AXE is a ruggedized, IP67-rated Wi-Fi 6 access point built for harsh outdoor environments. Featuring external antenna connectors, a 2.5G mGig uplink, and 4x4 MU-MIMO, it delivers secure, high-performance connectivity for stadiums, warehouses, and campuses.
Quick Specs:
· Wi-Fi Standard: Wi-Fi 6 (802.11ax)
· Environment Rating: IP67 (Rugged / Outdoor)
· Antennas: External (Requires separate N-Type antennas)
· Radios: 2.4 GHz (4x4) & 5 GHz (4x4) MU-MIMO
· Uplink: 1x 2.5Gbps Multigigabit (mGig)
· Operating Temp: -40°C to 65°C (-40°F to 149°F)
Comprehensive Product Overview
The Cisco Catalyst C9124AXE brings the unparalleled speed, capacity, and security of Wi-Fi 6 (802.11ax) to the great outdoors and demanding industrial environments. As a key component of Cisco’s intent-based networking architecture, this rugged access point is designed to extend your corporate network beyond the carpeted office, providing seamless roaming and continuous connectivity in courtyards, manufacturing plants, and public venues. Unlike APs with internal antennas, the C9124AXE provides network architects with ultimate RF (Radio Frequency) flexibility. By utilizing its standard N-Type connectors, engineers can attach specific external antennas—such as narrow-patch antennas for warehouse aisles or high-gain directional antennas for stadium seating—to precisely direct Wi-Fi coverage exactly where it is needed, while mitigating unwanted interference.
Key Features & Business Benefits

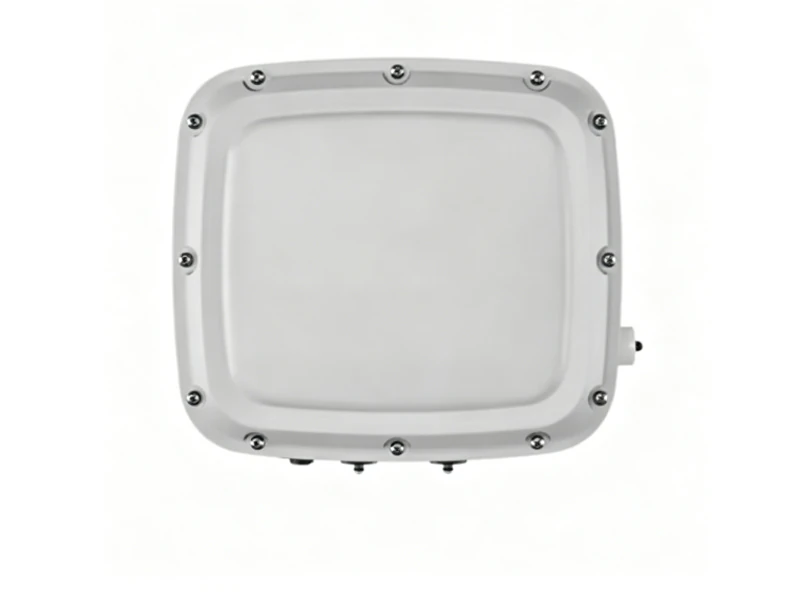

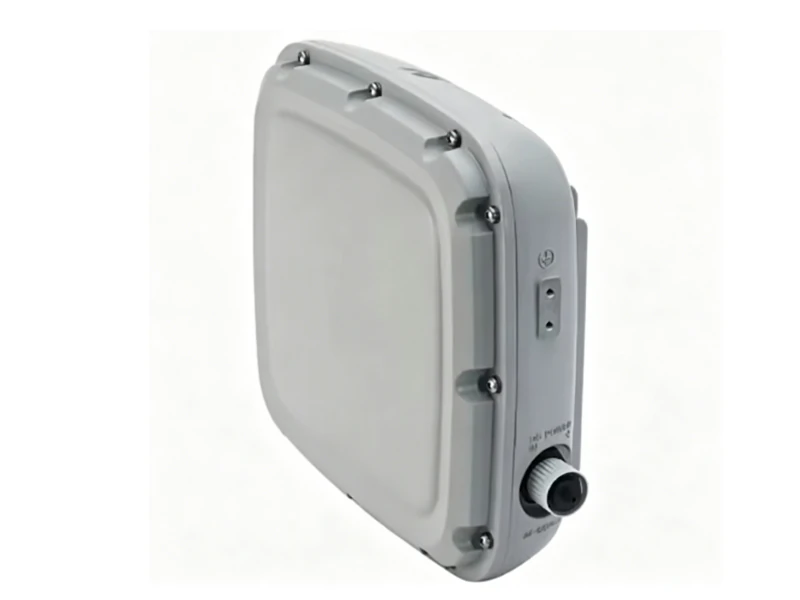

Extreme Ruggedness (IP67): Built to survive the harshest elements. The die-cast aluminum enclosure is completely sealed against dust and moisture (IP67 rated) and operates flawlessly in extreme temperatures ranging from -40°C to 65°C, ensuring zero weather-related downtime.
External Antenna Flexibility: Features multiple N-Type connectors, allowing IT teams to customize the RF coverage pattern. Whether you need omnidirectional coverage for an open park or highly directional beams for a narrow shipping corridor, the C9124AXE adapts to your physical environment.
Next-Gen Wi-Fi 6 Performance: Delivers up to three times more capacity than 802.11ac APs. Features like OFDMA and 4×4 MU-MIMO ensure that hundreds of mobile devices, ruggedized barcode scanners, and IoT sensors remain connected with ultra-low latency.
High-Speed 2.5G Uplink & Mesh Support: Equipped with a 2.5 Gbps (mGig) Ethernet port to handle heavy Wi-Fi 6 traffic. Additionally, it supports Cisco wireless mesh technology, allowing you to bridge network connectivity to remote locations where running ethernet cable is impossible.
Advanced Security & IoT Ready: Includes a built-in Bluetooth Low Energy (BLE) radio for location tracking and asset management, alongside hardware-level security to protect outdoor wireless traffic from rogue intrusions.
Technical Specifications
Specification
Details for C9124AXE
Product Series
Cisco Catalyst 9124AX Series
Deployment Environment
Outdoor / Industrial Ruggedized
Ingress Protection (IP) Rating
IP67 (Dust-tight and waterproof)
Wireless Standard
Wi-Fi 6 (IEEE 802.11ax), backwards compatible
Antenna Connectors
6 x N-Type connectors (Antennas sold separately)
Radio Configuration
2.4 GHz (4x4) and 5 GHz (4x4)
Network Interface (Uplink)
1 x 100/1000/2500 Mbps (2.5G mGig) RJ-45
IoT / Bluetooth
Integrated Bluetooth 5.0 (BLE)
Power Requirements
802.3at (PoE+) minimum; 802.3bt (UPOE) recommended for full features
Operating Temperature
-40°C to 65°C (-40°F to 149°F)
Surge Protection
Built-in severe surge protection
Ideal Application Scenarios
Stadiums and Public Arenas: Pair with high-gain directional antennas to shoot concentrated Wi-Fi signals down into specific seating sections, providing fans with reliable internet for streaming and social media.
Warehouses & Distribution Centers: Perfect for long, narrow storage aisles. Use patch antennas to focus the signal directly down the corridor, ensuring autonomous robots and forklift-mounted scanners never lose connection.
University Campus Courtyards: Extend the secure corporate/student network to outdoor common areas, parking lots, and walkways, maintaining seamless roaming as users walk from building to building.
Required Accessories (Build Your BOM)
Critical Note: The C9124AXE does not include antennas or mounting hardware out of the box. You must add the following to your order: External Antennas: Choose compatible Cisco outdoor antennas (e.g., AIR-ANT2547V-N= for omnidirectional, or specific directional patch antennas) based on your RF design. Mounting Brackets: AIR-MNT-VERT2= (Vertical pole/wall mount) or AIR-MNT-ART1= (Articulating mount). Power Supply: AIR-PWRINJ-60RGD1= (Ruggedized 60W Outdoor PoE Injector) if not connecting directly to an indoor PoE+ switch.
Frequently Asked Questions (FAQ)
Q1: What does the “E” stand for in C9124AXE?
A1: The “E” indicates External Antennas. This model is designed for environments that require custom radio coverage patterns. If you want a simpler outdoor AP with antennas already built inside the casing, you should select the C9124AXI model.
Q2: Does the C9124AXE come with antennas included?
A2: No. The AP features 6 standard N-Type connectors on the chassis. You must purchase the appropriate Cisco external antennas separately based on whether you need omnidirectional or directional coverage.
Q3: Can this access point survive freezing temperatures and heavy rain?
A3: Absolutely. The C9124AXE is housed in a rugged, die-cast aluminum enclosure that is IP67 rated, meaning it is completely dust-tight and can withstand heavy rain and water immersion. It operates reliably in temperatures as low as -40°C (-40°F).
Q4: Can I use this AP to create a wireless bridge between two buildings?
A4: Yes. The Catalyst 9124 series supports Cisco’s wireless mesh and bridge modes. By attaching high-gain directional antennas, you can create a high-speed point-to-point (P2P) wireless link to connect a remote building where laying fiber optic cable is too expensive or physically impossible.
Q5: What are the power requirements for this outdoor AP?
A5: The AP requires standard 802.3at (PoE+) to operate, but to utilize all features at maximum capacity across all ports and radios, 802.3bt (UPOE/60W) is recommended. If your switch is indoors and too far away, you can use a ruggedized outdoor Cisco PoE injector.
