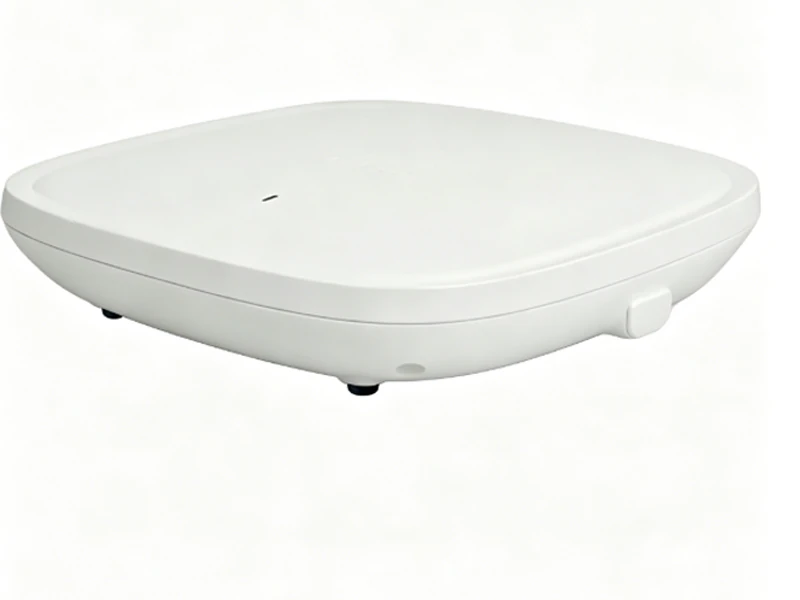

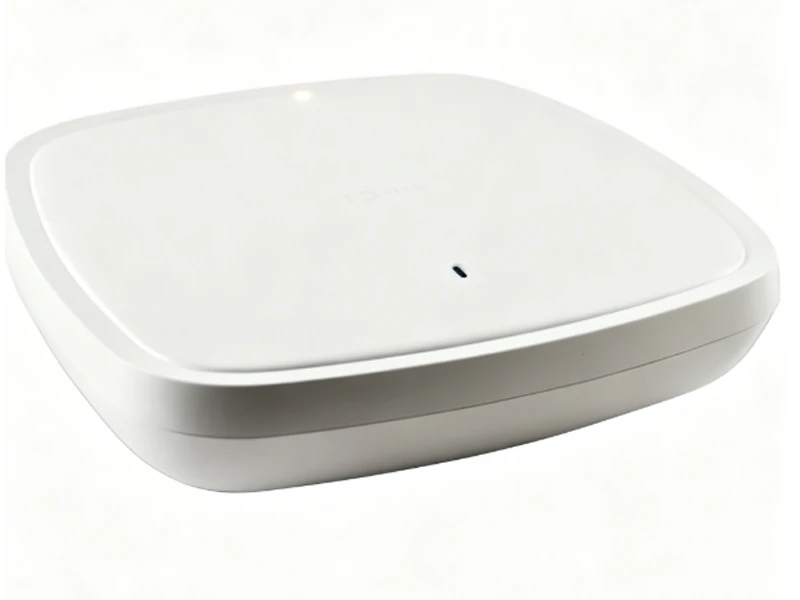

The Cisco Catalyst C9120AXI is a premium Wi-Fi 6 access point featuring an exclusive RF ASIC for advanced spectrum intelligence. Delivering 4x4 MU-MIMO, dual 5-GHz mode, and a 2.5G uplink, it ensures flawless performance in mission-critical environments.
Quick Specs:
· Wi-Fi Standard: Wi-Fi 6 (802.11ax)
· Radios: 2.4/5 GHz or Dual 5 GHz (FRA) + Dedicated RF ASIC
· Antennas: Internal Omnidirectional
· Uplink: 1x 2.5Gbps Multigigabit (mGig)
· Power: 802.3at (PoE+) Recommended
· IoT Ready: Integrated Bluetooth 5.0 (BLE)
Comprehensive Product Overview
The Cisco Catalyst C9120AXI pushes the boundaries of what enterprise wireless networks can achieve. Built on the Wi-Fi 6 (802.11ax) standard, this access point is specifically engineered for mission-critical deployments where network downtime or radio interference is simply not an option. What sets the C9120AXI apart from standard Wi-Fi 6 APs is its Cisco Custom RF ASIC. This dedicated, programmable silicon provides real-time spectrum analytics, Cisco CleanAir® technology, and Wireless Intrusion Prevention Systems (wIPS) without ever degrading the performance of client traffic. Combined with automated intent-based networking via Cisco DNA Center, the C9120AXI delivers a highly secure, reliable, and intelligent wireless edge.
Key Features & Business Benefits
Custom RF ASIC for Unmatched Security: The embedded Cisco RF ASIC acts as a dedicated security and spectrum analyzer. It constantly monitors the wireless environment for interference and malicious threats (wIPS/wIDS), ensuring optimal RF health and data security.
Flexible Radio Assignment (FRA): Adapt to changing network demands instantly. The AP can dynamically change its radio configuration from traditional 2.4 GHz/5 GHz to a Dual 5-GHz mode, doubling the bandwidth available to high-performance client devices in ultra-dense areas.
Next-Generation Wi-Fi 6 Performance: Utilizes OFDMA and 4×4 MU-MIMO to communicate with multiple devices simultaneously. This drastically reduces latency for voice, video, and IoT applications, even in highly congested environments.
High-Speed 2.5G Multigigabit Uplink: To prevent the wired network from bottlenecking the massive throughput of Wi-Fi 6, the C9120AXI features a 2.5 Gbps (mGig) Ethernet uplink, allowing you to maximize bandwidth over existing Cat5e/Cat6 cabling.
Integrated IoT Hub: Features a built-in Bluetooth Low Energy (BLE) 5.0 radio, eliminating the need for a separate overlay network for IoT use cases such as asset tracking, location analytics, and smart building integrations.
Technical Specifications
Specification
Details for C9120AXI
Product Series
Cisco Catalyst 9120 Series
Wireless Standard
Wi-Fi 6 (IEEE 802.11ax), backwards compatible with 802.11ac/n/g/b/a
Mission-Critical Healthcare: The dedicated RF ASIC easily detects and mitigates interference from medical equipment, ensuring that life-saving communication devices and Wi-Fi-enabled monitors remain connected.
Ultra-Dense Corporate Auditoriums: By utilizing the Dual 5-GHz (FRA) mode, IT administrators can provide massive bandwidth to hundreds of employees simultaneously attending video conferences or town halls.
High-Security Financial Institutions: The hardware-level Wireless Intrusion Prevention System (wIPS) continuously scans for rogue APs and wireless threats, protecting sensitive financial data from being intercepted.
Supported Accessories & Controllers
Ensure seamless deployment by pairing your C9120AXI with these official Cisco ecosystem components: Cisco Catalyst 9800 Series Controllers: (e.g., C9800-40, C9800-80) for large-scale enterprise campus management. AIR-AP-BRACKET-1= / AIR-AP-BRACKET-2=: Low-profile or universal mounting brackets for ceiling/wall installations. AIR-PWRINJ6=: Cisco Gigabit Power over Ethernet Plus (PoE+) Injector (Use if connecting to a non-PoE switch).
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the Catalyst 9115 and Catalyst 9120 APs?
A1: While both are excellent Wi-Fi 6 APs, the Catalyst 9120 introduces two major enterprise features: the Cisco Custom RF ASIC (a dedicated chip for spectrum analysis and security) and Flexible Radio Assignment (FRA), which allows the AP to operate in a high-capacity Dual 5-GHz mode. The 9115 does not have these features.
Q2: What does the “I” stand for in C9120AXI?
A2: The “I” denotes Internal Antennas, making this AP ideal for carpeted indoor environments like offices where aesthetics matter. For manufacturing or warehouse environments requiring external directional antennas, you should select the C9120AXE model.
Q3: Does the C9120AXI require a physical Wireless LAN Controller (WLC)?
A3: It depends on your deployment size. For large networks, a hardware controller (like the Catalyst 9800) is recommended. However, for smaller branches, the C9120AXI supports the Cisco Embedded Wireless Controller (EWC) software, allowing the AP itself to manage a small cluster of access points without a physical WLC.
Q4: How much power does the C9120AXI need?
A4: To operate with all features enabled (including 4×4 MIMO, the dedicated RF ASIC, and the 2.5G mGig port), the AP requires an 802.3at (PoE+) power source delivering 30W. If connected to older 802.3af (15.4W) PoE, the AP will boot but will disable several critical radios and features.
Q5: What is the purpose of the Custom RF ASIC?
A5: In traditional APs, the radio must briefly stop serving client data to scan the environment for interference or security threats. The Cisco Custom RF ASIC is a dedicated 3rd radio that performs continuous spectrum analysis, CleanAir interference mitigation, and wIPS threat detection without ever interrupting Wi-Fi service to connected users.
