Comprehensive Product Overview

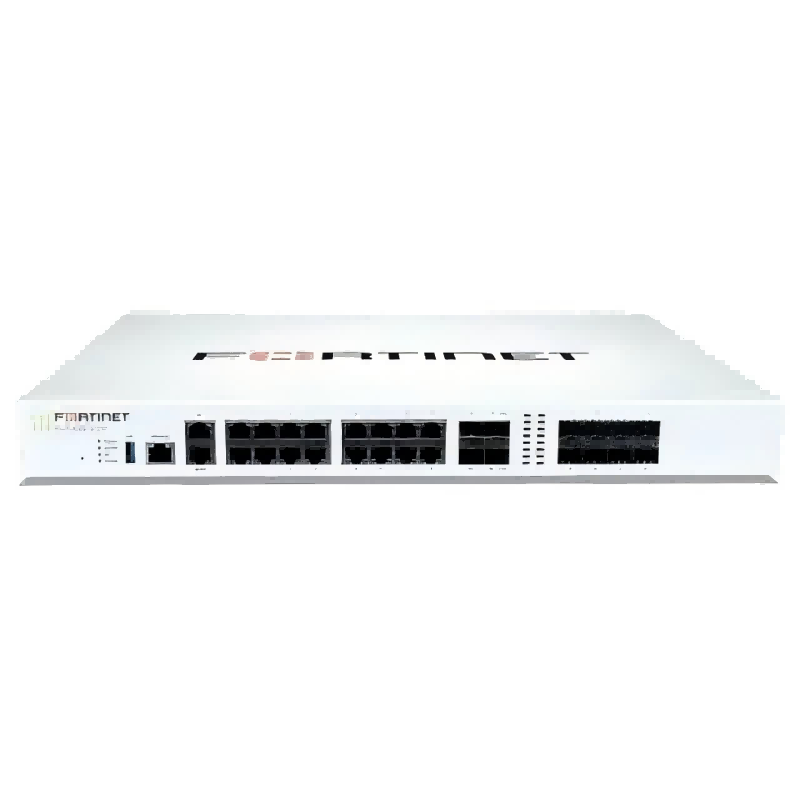

The FortiGate FG-200F (FG-200F) is a flagship mid-range NGFW from Fortinet’s 200F series, engineered to address the evolving security and connectivity demands of modern businesses. As a 1U rack-mountable appliance, it balances port density, performance, and security capabilities, making it suitable for enterprise headquarters, regional branches, educational institutions, healthcare facilities, and managed service providers (MSPs).

Built on FortiOS, Fortinet’s intuitive operating system, the FG-200F unifies firewall, intrusion prevention system (IPS), antivirus (AV), web filtering, anti-spam, zero-trust network access (ZTNA), and SD-WAN into a single platform. Its NP6XLite network processor and CP9 content processor enable hardware-accelerated threat inspection, ensuring high throughput even under heavy SSL/TLS encrypted traffic loads.

With a rich port configuration—18x GE RJ45 (including 1x MGMT, 1x HA, 16x switch ports), 8x GE SFP slots, and 4x 10GE SFP+ slots—the FG-200F supports flexible LAN/WAN deployments, high-speed fiber connectivity, and seamless integration with FortiSwitches and FortiAPs for end-to-end network security. Redundant AC power supplies and high-availability (HA) clustering (active-active/passive) ensure 99.99% uptime for business-critical operations.

The FG-200F is optimized for centralized management via FortiManager or FortiCloud, simplifying policy orchestration, firmware updates, and threat monitoring across distributed networks. It also supports FortiGuard subscriptions for real-time threat intelligence, AI-powered malware prevention, and advanced security services, making it a future-proof solution for growing organizations.

Key Features & Business Benefits

1. High-Performance Hardware Acceleration

• Features: NP6XLite network processor + CP9 content processor; 5 Gbps IPS throughput, 3.5 Gbps NGFW throughput, 3 Gbps threat protection throughput.
• Benefits: Delivers wire-speed security inspection without performance degradation; handles high-volume SSL/TLS traffic (4 Gbps SSL inspection throughput) for modern encrypted environments.

2. Enterprise-Grade Security Integration

• Features: Next-gen firewall, IPS, gateway AV, anti-spyware, web/DNS filtering, ZTNA, sandboxing, and AI-driven threat prevention.
• Benefits: Blocks malware, ransomware, phishing, and zero-day attacks at the gateway; ensures compliance with data protection regulations (GDPR, HIPAA) and reduces breach risks.

3. High-Density, Flexible Connectivity

• Features: 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+; supports FortiLink (SFP+), HA, and dedicated management ports.
• Benefits: Enables mixed copper/fiber deployments; scales from 1G to 10G WAN links; integrates seamlessly with Fortinet’s switching and wireless ecosystem.

4. Robust VPN & SD-WAN Capabilities

• Features: 13 Gbps IPsec VPN throughput (2,500 gateway-to-gateway tunnels, 16,000 client-to-gateway tunnels); 2 Gbps SSL-VPN throughput (500 concurrent users); enterprise SD-WAN.
• Benefits: Secures remote work and branch connectivity; optimizes multi-cloud traffic; reduces MPLS costs with broadband/4G/5G SD-WAN links.

5. High Availability & Reliability

• Features: Redundant AC power supplies; HA active-active/passive clustering; 10 virtual domains (VDOMs).
• Benefits: Eliminates single points of failure; ensures business continuity during hardware/software updates; supports multi-tenant deployments for MSPs.

6. Simplified Management & Scalability

• Features: FortiOS GUI/CLI; FortiManager/FortiCloud centralized management; supports 256 FortiAPs, 64 FortiSwitches, and 5,000 FortiTokens.
• Benefits: Reduces IT administrative overhead; scales seamlessly from 50 to 250 users; future-proofs with upgradable security subscriptions.

Technical Specifications

Performance

• Firewall Throughput: 27 Gbps (1518-byte UDP)
• IPS Throughput: 5 Gbps
• NGFW Throughput: 3.5 Gbps
• Threat Protection Throughput: 3 Gbps
• SSL Inspection Throughput: 4 Gbps; 300,000 concurrent sessions; 3,500 CPS
• IPsec VPN Throughput: 13 Gbps (512-byte)
• SSL-VPN Throughput: 2 Gbps; 500 concurrent users
• Concurrent TCP Sessions: 3,000,000
• New TCP Sessions per Second: 280,000
• Firewall Policies: 10,000

Interfaces

• 18x GE RJ45 Ports (1x MGMT, 1x HA, 16x switch ports)
• 8x GE SFP Slots (mini-GBIC)
• 4x 10GE SFP+ Slots (2x FortiLink)
• 1x Console Port (RJ-45)
• 1x USB 2.0 Port (Type A)

Physical & Environmental

• Form Factor: 1U rack-mountable
• Dimensions: 432 × 342 × 44 mm
• Weight: 4.5 kg

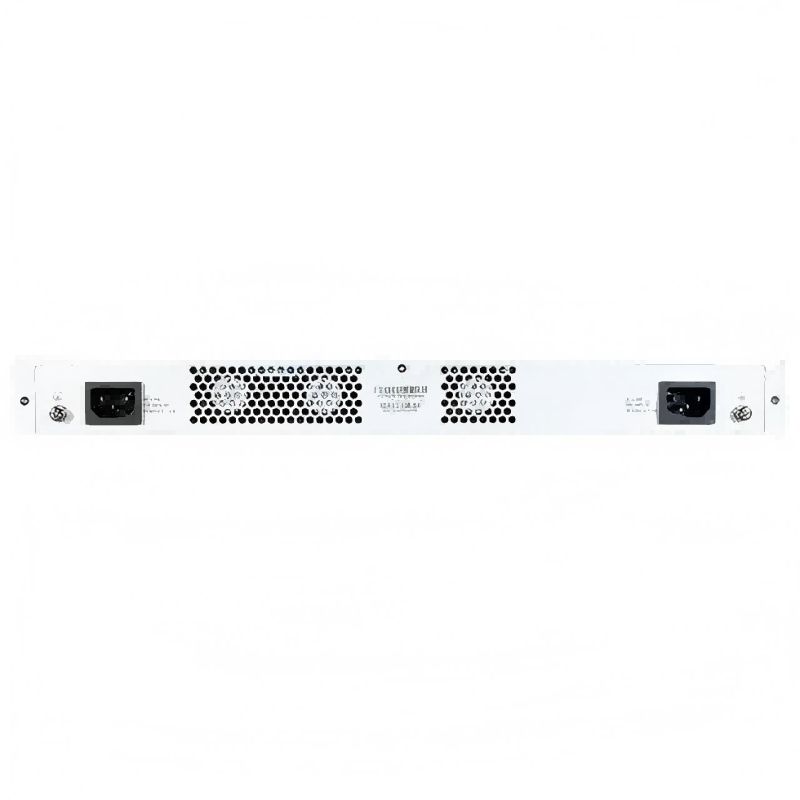

• Power Supply: Redundant AC (100–240V, 50/60Hz)
• Operating Temperature: 0°C to 40°C
• Storage: No onboard SSD (FG-201F includes 480GB SSD)

Scalability & Management

• Virtual Domains (VDOMs): 10
• FortiAP Support: 256 (128 tunnel mode)
• FortiSwitch Support: 64
• FortiToken Support: 5,000
• Management: FortiOS GUI/CLI, FortiManager, FortiCloud
• Compliance: GDPR, HIPAA, PCI-DSS, ISO 27001

Ideal Application Scenarios

1. Medium Enterprise Headquarters: Secures core networks with 50–250 users; supports multi-branch SD-WAN connectivity and centralized security management.
2. Regional Branch Offices: Delivers enterprise-grade security for remote branches; optimizes broadband/4G/5G WAN links via SD-WAN; integrates with headquarter VPNs.
3. Educational Institutions: Enforces web filtering and application control for student/staff networks; secures campus Wi-Fi (FortiAP integration); complies with student data privacy regulations.
4. Healthcare Facilities: Protects patient data (HIPAA compliance); secures medical device networks; supports remote clinician VPN access.
5. Managed Service Providers (MSPs): Multi-tenant deployments via VDOMs; centralized management of multiple customer networks; scalable security subscriptions.
6. Retail & Hospitality: Secures POS systems and guest Wi-Fi; supports SD-WAN for multi-location connectivity; prevents data breaches and fraud.

Supported Accessories & Modules

Transceiver Modules (SFP/SFP+)

• FN-TRAN-GC: 1 GE SFP RJ45 Transceiver
• FN-TRAN-SX: 1 GE SFP SX Transceiver (multimode fiber)
• FN-TRAN-LX: 1 GE SFP LX Transceiver (single-mode fiber)
• FN-TRAN-SFP+GC: 10 GE SFP+ RJ45 Transceiver
• FN-TRAN-SR: 10 GE SFP+ SR Transceiver (multimode fiber)
• FN-TRAN-LR: 10 GE SFP+ LR Transceiver (single-mode fiber)

Power & Mounting

• Redundant AC Power Supply Unit (PSU)
• 1U Rack Mount Brackets & Screws
• Rubber Feet (desktop deployment)

Cables & Adapters

• Console Cable (RJ-45 to DB9)
• Ethernet Cable (CAT5e/CAT6)
• USB Console Cable (Type A to Micro-USB)

Security Subscriptions

• FortiGuard Unified Threat Protection (UTP): Gateway AV, IPS, web filtering, anti-spyware
• FortiGuard Enterprise Protection: Advanced malware protection, CASB, DLP, ZTNA, sandboxing
• FortiCare Premium Support: 24/7 technical support, NBD hardware replacement, firmware updates

Frequently Asked Questions (FAQ)

Q1: What is the difference between FG-200F and FG-201F?

A: The FG-201F includes a 480GB onboard SSD for local logging and sandboxing, while the FG-200F has no SSD. All other hardware (ports, performance, acceleration) is identical.

Q2: How many concurrent SSL-VPN users can the FG-200F support?

A: The FG-200F supports 500 concurrent SSL-VPN users with 2 Gbps SSL-VPN throughput, ideal for remote work and branch access.

Q3: Can the FG-200F be managed via the cloud?

A: Yes, it supports FortiCloud for cloud-based centralized management, policy configuration, and threat monitoring across distributed networks.

Q4: What is the maximum number of FortiAPs the FG-200F can manage?

A: It supports up to 256 FortiAPs (128 in tunnel mode), enabling seamless integration with Fortinet’s wireless ecosystem.

Q5: Does the FG-200F support high availability (HA)?

A: Yes, it supports active-active and active-passive HA clustering with redundant power supplies to ensure 99.99% uptime for business-critical operations.

Q6: What security subscriptions are required for full functionality?

A: Base hardware includes firewall functionality. For full threat protection, FortiGuard UTP or Enterprise Protection subscriptions are required; FortiCare Premium is recommended for support and hardware replacement.
