Comprehensive Product Overview

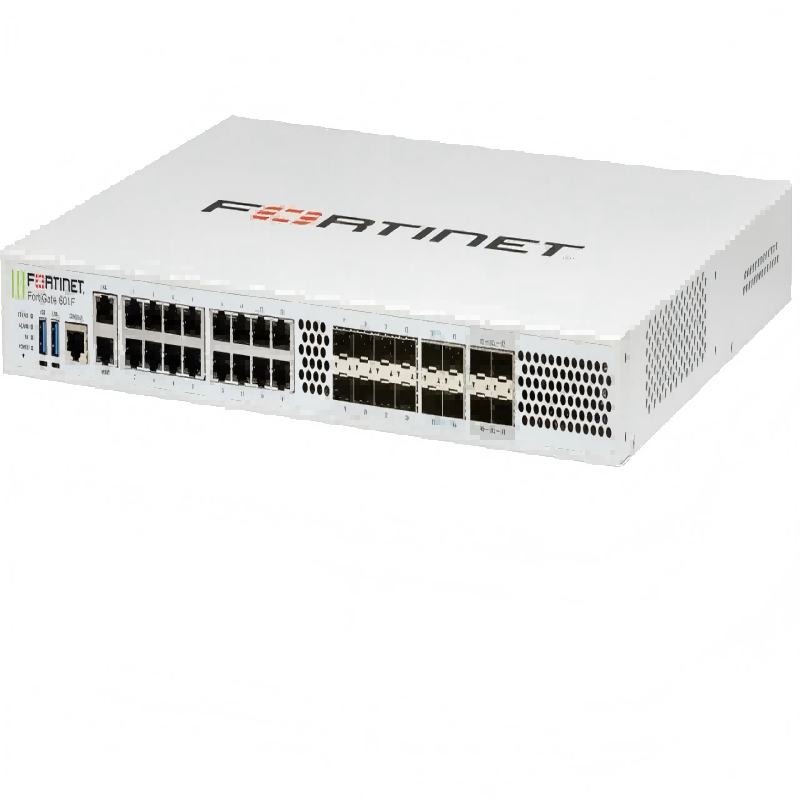

The FortiGate 601F (FG-601F) is a flagship enterprise security appliance in Fortinet’s 600F series (paired with FG-600F), built on Security-Driven Networking architecture. It unifies NGFW, secure SD-WAN, ZTNA, SSL inspection, IPS, application control, and advanced malware protection into a single 1U platform—with the key difference of dual 240GB SSDs for onboard logging, reducing reliance on external servers.
Designed for 1U rackmount deployment, the FG-601F uses dedicated NP7 (network processing) and CP9 (content processing) SPUs to offload security tasks, ensuring wire-speed performance even with full security policies enabled. High-density 25G/10G fiber and GE copper ports support high-bandwidth enterprise backbones, data center interconnections, and large branch SD-WAN.
As part of the Fortinet Security Fabric, it integrates seamlessly with FortiAP, FortiSwitch, FortiNAC, and FortiGuard, delivering end-to-end security across on-premises, cloud, and edge environments. Certified for enterprise reliability, it features dual hot-swappable AC PSUs, TPM 2.0, and a rugged chassis for 24/7 operation—with local SSD storage for compliant log retention and faster troubleshooting.
Key Features & Business Benefits
Key Features
- NP7 + CP9 Hardware Acceleration: Wire-speed performance for firewall, IPS, SSL inspection, and application control.
- 2x 240GB Onboard SSDs: Local logging/storage for compliance, reduced external server dependency, and faster log access.
- High-Density 25G/10G/GE Interfaces: 4x25G SFP28, 4x10G SFP+, 8xGE SFP, 18xGE RJ45 (16x switch, 1x MGMT, 1x HA), 2x USB, 1x Console.
- AI/ML-Powered FortiGuard Services: Real-time protection against ransomware, zero-days, malware, phishing, and APTs.
- Secure SD-WAN & ZTNA: Application-aware SD-WAN routing; Universal ZTNA for granular user-to-application access.
- Ultra-High Throughput: 139Gbps IPv4 firewall, 14Gbps IPS, 11.5Gbps NGFW, 9Gbps SSL inspection.
- Redundant & Reliable: Dual hot-swappable AC PSUs, 1U rackmount, TPM 2.0, 55dBA low noise.
- FortiOS Unified Management: Single OS for firewall/SD-WAN/switching/wireless; GUI/CLI or cloud management via FortiManager.
Business Benefits
- Simplify Compliance & Logging: Onboard SSDs enable local log retention for regulatory requirements (PCI DSS, HIPAA), reducing external logging costs.
- Reduce Security Complexity: Consolidate 10+ security/networking functions into one appliance, cutting management overhead.
- Boost Network Performance: Hardware acceleration ensures security doesn’t slow traffic—supporting video, cloud, and VoIP.
- Strengthen Threat Protection: AI-driven FortiGuard Labs blocks emerging threats before they impact operations.
- Enable Secure Hybrid Work: ZTNA/SSL VPN deliver safe remote access; SD-WAN optimizes cloud/data center connectivity.
- Lower TCO: 1U design saves rack space; redundant components reduce downtime; unified management cuts training/maintenance costs.
- Scale with Growth: High-density 25G/10G ports support future upgrades; VDOMs enable multi-tenant deployments.
Technical Specifications (FG-601F)
- IPv4 Firewall Throughput (1518/512/64 byte UDP): 139 / 137.5 / 70 Gbps
- IPv6 Firewall Throughput: 139 Gbps
- IPS Throughput (Enterprise Mix): 14 Gbps
- NGFW Throughput (Enterprise Mix): 11.5 Gbps
- Threat Protection Throughput: 10.5 Gbps
- SSL Inspection Throughput (HTTPS): 9 Gbps
- Application Control Throughput: 32 Gbps
- Concurrent TCP Sessions: 8 Million
- New TCP Sessions/Second: 550,000
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL VPN Throughput: 4.3 Gbps
- Virtual Domains (Default/Max): 10 / 10

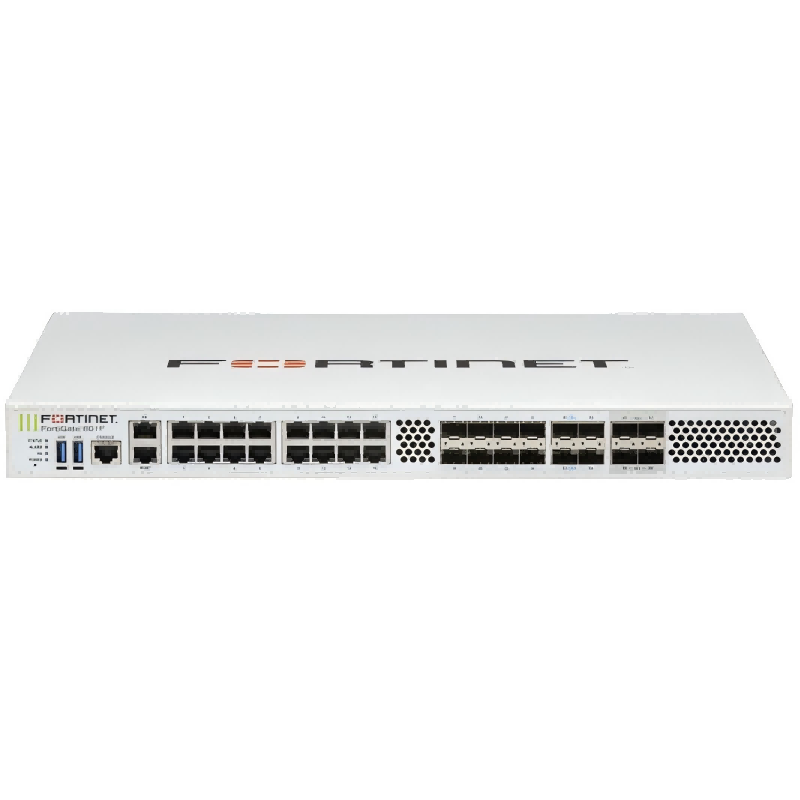

Interfaces & Ports
- 4x 25GE SFP28 (ultra-low latency)
- 4x 10GE SFP+
- 8x GE SFP
- 18x GE RJ45 (16x switch ports, 1x MGMT, 1x HA)
- 2x USB 3.0
- 1x RJ45 Console (9600 baud)
Hardware & Physical
- Form Factor: 1U Rackmount
- Dimensions (H×W×D): 1.75 × 17.0 × 15.0 in (44.45 × 432 × 380 mm)
- Weight: 15.6 lbs (7.1 kg)

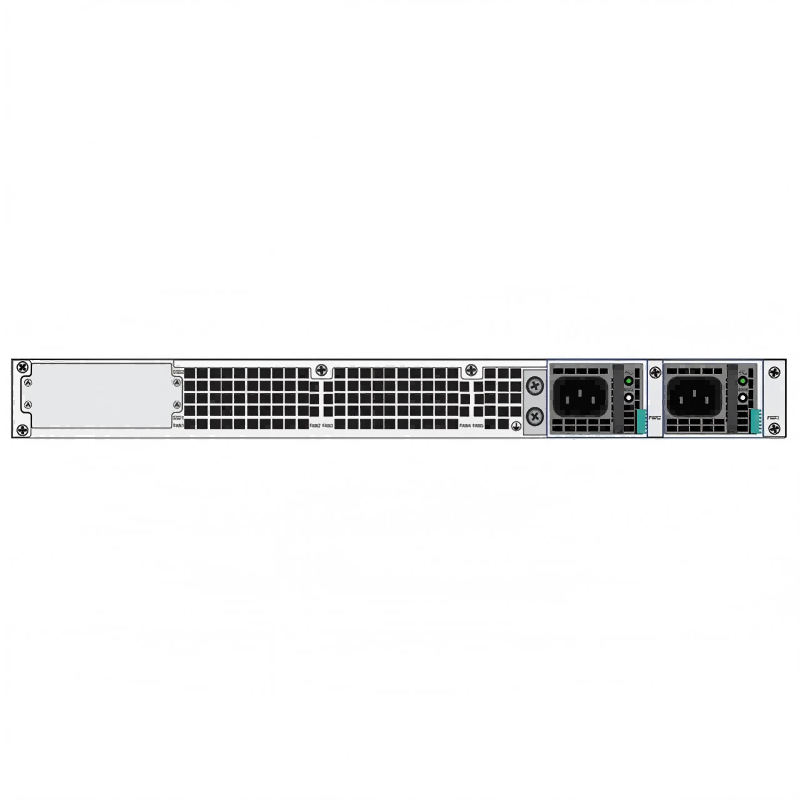

- Power Supply: Dual Hot-Swappable AC (100–240V AC, 50/60Hz)
- Power Consumption: 169W (avg) / 255W (max)
- Heat Dissipation: 871 BTU/h
- Operating Temperature: 32°–104°F (0°–40°C)
- Humidity: 5%–90% non-condensing
- Noise Level: 55 dBA
- Security: TPM 2.0, secure boot, encrypted storage support
- Onboard Storage: 2x 240 GB SSD (FG-601F only; FG-600F has no storage)
Licensing & Management
- Supported FortiOS Versions: 7.0+
- Management: FortiManager (on-prem/cloud), FortiGate GUI/CLI, FortiCloud
- Security Subscriptions: FortiGuard Enterprise (IPS, malware, URL/DNS filtering, CASB, DLP), FortiCare Premium (24/7 support, NBD replacement)
Ideal Application Scenarios
- Enterprise Campus Networks: High-speed backbone security for large university, corporate, or government campuses.
- Large Enterprise Branches: Secure SD-WAN gateway for regional HQ or 500+ user branches needing local log storage.
- Data Center Edge Security: Perimeter firewall for data centers, protecting servers/storage/cloud interconnections with compliant logging.
- Hybrid & Multi-Cloud Security: Secure on-prem/cloud connectivity via IPsec/SSL VPN; local SSDs log cloud traffic for audits.
- Zero Trust Network Access (ZTNA): Granular access control for remote/on-site employees; logs track access for compliance.
- High-Bandwidth Application Environments: Networks running video conferencing, big data, VoIP, or e-commerce needing low-lat security.
- Regulated Industries: Finance, healthcare, and government requiring local log retention (PCI DSS, HIPAA, GDPR).
Supported Accessories & Modules
Transceiver Modules (Compatible)
- 25G SFP28: SR (multimode), LR (single-mode), ER (extended reach)
- 10G SFP+: SR, LR, ER, ZR, DAC (direct attach copper)
- GE SFP: SX (multimode), LX (single-mode), BX (bidirectional)
Power Supplies
- FG-601F AC Power Supply (hot-swappable replacement)
Mounting & Cabling
- 1U Rackmount Kit (included)
- Console Cable (RJ45-to-USB, included)
- Ethernet Cables (CAT5e/CAT6 for RJ45 ports)
Management & Security
- FortiManager VM/Appliance (centralized management)
- FortiGuard Enterprise Protection License (1/3/5-year terms)
- FortiCare Premium Support Contract (24/7 support, NBD replacement)
Frequently Asked Questions (FAQ)
Q1: What is the main difference between FG-601F and FG-600F?
A: The FG-601F includes 2x 240GB SSDs for local logging/storage, while the FG-600F has no onboard storage. All other hardware (interfaces, performance, processors) is identical.
Q2: Why choose FG-601F over FG-600F?
A: The FG-601F’s dual SSDs enable local log retention for compliance (PCI DSS, HIPAA), reduce external logging server costs, and speed up log access/troubleshooting—ideal for regulated industries or data centers.
Q3: Does the FG-601F support secure SD-WAN?
A: Yes. It includes FortiGate SD-WAN with application-aware routing, ZTP, and FortiCloud integration for centralized management.
Q4: Can the FG-601F be deployed in HA mode?
A: Yes. It supports Active-Active and Active-Passive HA, plus clustering for scalability/redundancy.
Q5: What is the maximum SSL VPN user count?
A: The FG-601F supports up to 10,000 recommended concurrent SSL VPN users (tunnel mode).
Q6: Is the FG-601F certified for enterprise standards?
A: Yes. It complies with FIPS 140-2, Common Criteria (EAL4+), and PCI DSS—suitable for government, finance, and regulated industries.
Q7: How is data stored on the FG-601F’s SSDs secured?
A: The SSDs support encrypted storage with TPM 2.0 and secure boot, ensuring log data remains tamper-proof and compliant with data security regulations.
