Comprehensive Product Overview

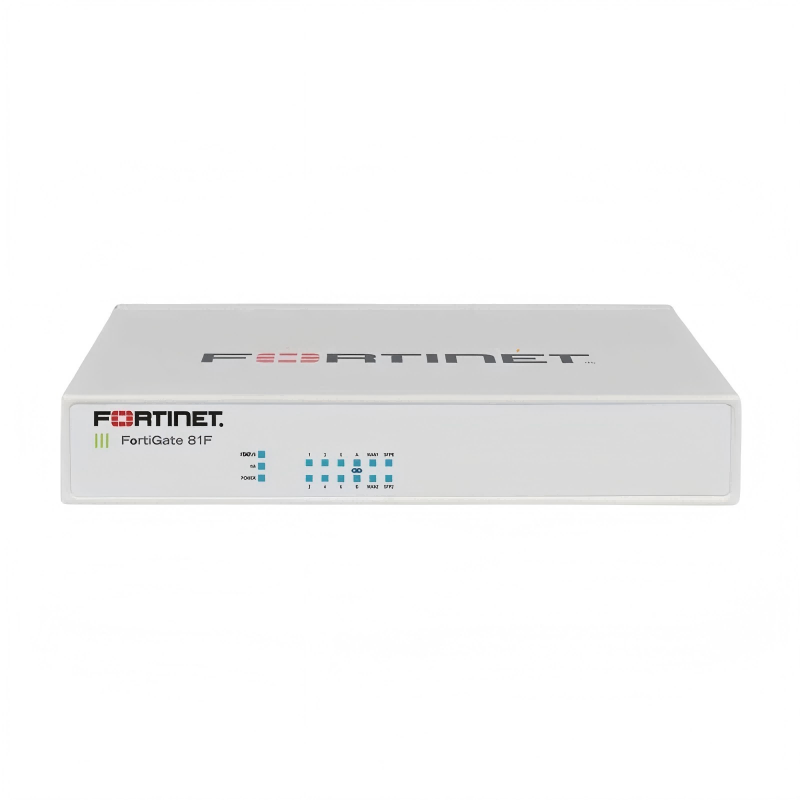

The FortiGate 81F (FG-81F) is the top-performing model in Fortinet’s 80F series, built for mid-sized businesses and branch networks requiring high-speed security and SD-WAN capabilities in a compact form factor. As a fanless desktop appliance, it operates silently (0 dBA) with low power consumption (max 16.5W), making it ideal for office environments, retail locations, and remote sites where noise and heat are concerns.
Engineered with Fortinet’s proprietary SoC4 (System-on-Chip 4), the FG-81F combines network acceleration (NP6) and content processing (CP9) into a single chip, delivering industry-leading performance without compromising security. It supports 1.5 million concurrent TCP sessions and 45,000 new sessions per second, ensuring reliable connectivity for up to 200 users. The 128GB SSD provides ample local storage for logs, reports, and configurations, eliminating the need for external storage in most deployments.
As a unified security platform, the FG-81F integrates NGFW, secure SD-WAN, IPS, antivirus, web filtering, application control, and SSL VPN into one device, simplifying network architecture and reducing operational complexity. It is certified by ICSA Labs for firewall, IPsec, IPS, antivirus, and SSL-VPN, ensuring compliance with enterprise security standards.
Key Features & Business Benefits
Key Features
- SoC4 Security Processor: Hardware-accelerated firewall, VPN, and threat protection.
- 10 Gbps Firewall Throughput: Handles high-bandwidth connections with low latency.
- 6.5 Gbps IPsec VPN: Fast, secure site-to-site and remote access VPN.
- 900 Mbps Threat Protection: Simultaneous firewall, IPS, antivirus, and application control.
- 128GB Onboard SSD: Local logging, storage, and reporting.
- Fanless Design: 0 dBA noise, passive cooling, high reliability.
- 10x GE Ports: 2x RJ45/SFP shared WAN, 6x internal, 2x FortiLink.
- Secure SD-WAN: Intelligent traffic routing, multi-WAN support, zero-touch deployment.
- FortiLink Integration: Manage up to 16 FortiSwitches directly from the FG-81F.
- AI-Powered FortiGuard: Real-time threat intelligence, zero-day protection.
Business Benefits
- Lower TCO: All-in-one security + SD-WAN reduces hardware and management costs.
- High Performance: SoC4 acceleration eliminates bottlenecks for 100–200 user networks.
- Quiet & Reliable: Fanless design reduces failure points, perfect for 24/7 operation.
- Simplified Management: Single-pane control for security, SD-WAN, and switches.
- Scalable Security: Supports up to 96 FortiAPs and 500 FortiTokens for growing networks.
- Compliance Ready: ICSA-certified, meets regulatory requirements for data protection.
Technical Specifications
- Firewall Throughput (64-byte UDP): 7 Gbps
- Firewall Throughput (1518-byte UDP): 10 Gbps
- NGFW Throughput: 1 Gbps
- IPS Throughput: 1.4 Gbps
- Threat Protection Throughput: 900 Mbps
- IPsec VPN Throughput (512-bit): 6.5 Gbps
- SSL VPN Throughput: 950 Mbps
- SSL Inspection Throughput: 715 Mbps
- Max Concurrent TCP Sessions: 1,500,000
- New Sessions per Second: 45,000
- Supported Users: Up to 200
Interfaces
- 2x GE RJ45/SFP Shared Media WAN Ports
- 6x GE RJ45 Internal Ports
- 2x GE RJ45 FortiLink Ports
- 1x USB 3.0 Port
- 1x RJ45 Console Port
Hardware
- Processor: Fortinet SoC4 (NP6 + CP9)
- Storage: 128GB SSD (onboard)
- Form Factor: Desktop (fanless)
- Dimensions (H×W×D): 38.5 × 216 × 160 mm (1.5 × 8.5 × 6.3 in)
- Weight: 1.1 kg (2.4 lbs)
- Power Consumption: 12.6W (avg) / 16.5W (max)
- Power Input: 100–240V AC, 50/60 Hz (1 adapter included)
- Noise Level: 0 dBA (fanless)
- Operating Temperature: 0–40°C (32–104°F)
- Humidity: 10–90% non-condensing
Security & Compliance
- Security Features: Firewall, NGFW, IPS, Antivirus, Web Filtering, Application Control, SSL VPN, IPsec VPN, FortiGuard AI Security
- Certifications: ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN), FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
- Virtual Domains: 10 (default) / 10 (max)
Ideal Application Scenarios
- Small-to-Medium Businesses (SMBs): 50–200 users, all-in-one security + SD-WAN for headquarters.
- Enterprise Branch Offices: Secure connectivity, local breakout, and SD-WAN for distributed branches.
- Retail & POS Networks: Fanless, compact design for retail locations, PCI DSS compliance.
- Remote Work & VPN Hubs: High-performance SSL/IPsec VPN for 500+ remote users.
- SD-Branch Deployments: FortiLink integration for unified security, switching, and wireless.
- Education & Healthcare: Quiet operation, compliance, and scalable security for small campuses/clinics.
Supported Accessories & Modules
- Power Adapter: SP-FG60E-PDC-5 (5-pack AC adapters for FG-81F)
- Rack Mount Tray: RM-FR-T15 (19” rack mount kit for desktop deployment)
- SFP Transceivers: Fortinet-compatible GE SFP (SX, LX, EX, ZX) for WAN ports
- FortiSwitch: FS-108E, FS-124E, FS-248E (managed via FortiLink)
- FortiAP: FAP-221E, FAP-321E, FAP-421E (Wi-Fi 5/6 access points)
- FortiCare & FortiGuard Subscriptions: 1/3/5-year UTP, ATP, SD-WAN, and support services
Frequently Asked Questions (FAQ)
Q1: What is the difference between FG-80F and FG-81F?
A: The FG-81F includes 128GB onboard SSD for local logging/storage, while the FG-80F has no built-in storage. Both share the same port count and SoC4 performance.
Q2: How many users can the FG-81F support?
A: The FG-81F is recommended for up to 200 concurrent users in typical office environments.
Q3: Does the FG-81F support SD-WAN?
A: Yes. It includes secure SD-WAN with multi-WAN load balancing, intelligent traffic steering, and zero-touch provisioning.
Q4: Can I manage FortiSwitches from the FG-81F?
A: Yes. FortiLink protocol allows managing up to 16 FortiSwitches directly from the FG-81F, simplifying SD-Branch deployments.
Q5: Is the FG-81F fanless?
A: Yes. It uses passive cooling with no moving parts, operating silently at 0 dBA for high reliability.
Q6: What subscriptions are required for full security?
A: FortiGuard Unified Threat Protection (UTP) or Advanced Threat Protection (ATP) subscriptions are required for antivirus, IPS, web filtering, and application control.
