Comprehensive Product Overview

The FortiGate 60F (FG-60F) is part of Fortinet’s 60F series, built on the Security-Driven Networking framework to unify network connectivity and advanced cybersecurity. At its core lies the FortiASIC SOC4, a purpose-built security processor that offloads compute-intensive tasks like deep packet inspection (DPI), SSL/TLS decryption, and threat detection—ensuring line-rate performance even under full security loads.

Key Design & Purpose

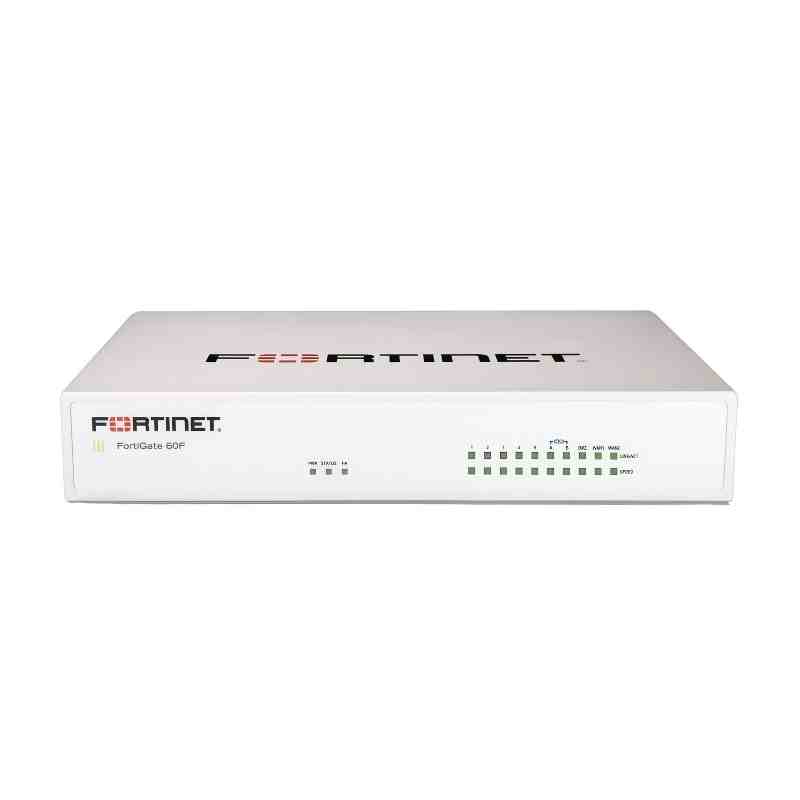

• Form Factor: Fanless desktop (wall-mountable), compact dimensions (38.5 x 216 x 160 mm), low power consumption (10.17–17W) for silent, reliable 24/7 operation.
• Target Users: SMBs, enterprise branch offices, retail chains, remote work hubs, and mid-sized organizations with 25–100 users.
• Core Mission: Replace legacy firewalls and disjointed security tools with a unified NGFW + SD-WAN solution that reduces complexity, lowers TCO, and protects against modern threats (ransomware, zero-day exploits, encrypted malware).
• FortiOS Integration: Runs on Fortinet’s FortiOS, the industry-leading OS with centralized management, AI-driven FortiGuard services, and seamless integration with Fortinet’s Security Fabric (FortiSwitch, FortiAP, FortiManager).

Unique Value Proposition

Unlike competing firewalls that sacrifice performance for security, the FG-60F delivers 750Mbps SSL inspection throughput (TLS 1.3 compliant) and 1Gbps NGFW throughput—critical for securing encrypted SaaS, multi-cloud, and unified communications traffic without latency. Its Secure SD-WAN capabilities optimize application routing across broadband, 4G/5G, and MPLS links, reducing WAN costs while ensuring business-critical app performance.

Key Features & Business Benefits

1. Hardware-Accelerated Security (FortiASIC SOC4)

• Features: Dedicated security processor for DPI, SSL/TLS 1.3 decryption, IPS, and antivirus; no performance degradation with all security services enabled.
• Business Benefit: Blocks advanced threats (ransomware, zero-days, encrypted malware) in real time; avoids bottlenecks from software-only security solutions.

2. High-Performance NGFW & Threat Protection

• Features: 6Gbps firewall throughput, 1.4Gbps IPS throughput, 700Mbps threat protection throughput; 700,000 concurrent TCP sessions.
• Business Benefit: Supports high-bandwidth networks and heavy user traffic; ensures seamless performance for SaaS, video conferencing, and cloud apps.

3. Secure SD-WAN with Intelligent Traffic Steering

• Features: Patented SOC4 SD-WAN ASIC; application-aware routing; auto-failover across WAN links; TLS 1.3 encrypted traffic optimization.
• Business Benefit: Reduces reliance on expensive MPLS lines; improves user experience for business-critical apps (Microsoft 365, Salesforce, Zoom); cuts WAN costs by 30–50%.

4. Comprehensive Connectivity & FortiLink Integration

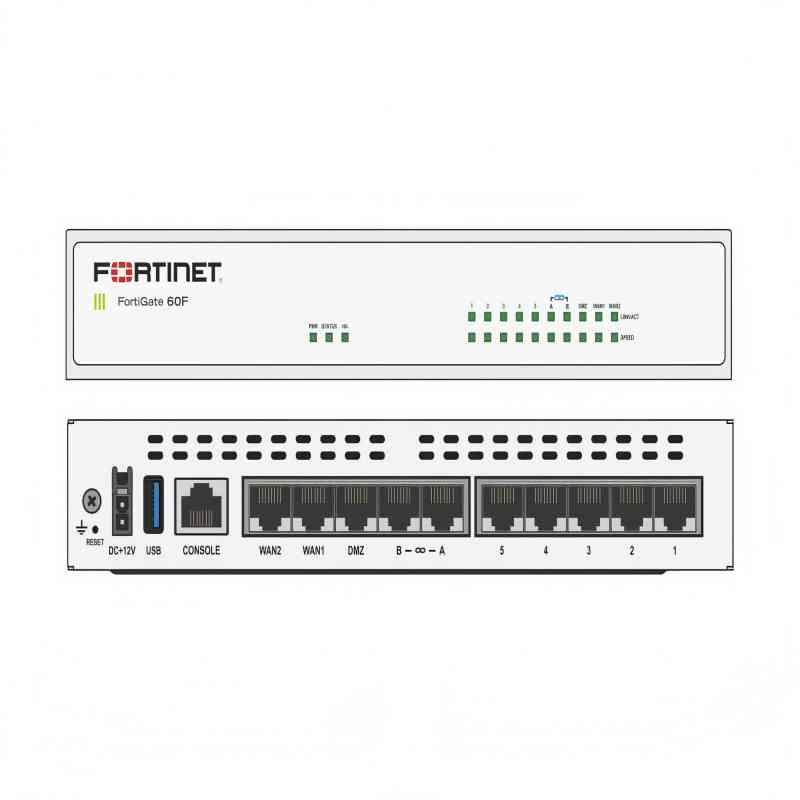

• Features: 10x GE RJ45 ports (2x WAN, 1x DMZ, 5x internal, 2x FortiLink); 1x USB 3.0 (3G/4G modem support); 1x RJ45 console port.
• Business Benefit: Flexible network design (redundant WAN, DMZ for public servers); FortiLink manages up to 16 FortiSwitches and 64 FortiAPs, unifying security and access management.

5. Robust VPN & Remote Access

• Features: 200x IPSec VPN tunnels, 200x concurrent SSL VPN users; 900Mbps SSL VPN throughput; AES-256 encryption.
• Business Benefit: Securely connects remote employees, branch offices, and cloud resources; supports hybrid work models with fast, reliable remote access.

6. Fanless, Compact & Low-Maintenance Design

• Features: Silent fanless operation; wall-mountable; low power (10.17W); high MTBF for minimal downtime.
• Business Benefit: Reduces IT maintenance costs; ideal for noise-sensitive environments (offices, retail); reliable 24/7 operation with no moving parts.

7. Zero-Touch Deployment & Centralized Management

• Features: FortiGate Cloud for remote management; FortiManager integration for global policy control; auto-provisioning and analytics.
• Business Benefit: Eliminates on-site IT setup; scales easily for multi-branch networks; reduces operational overhead with centralized visibility.

Technical Specifications

Hardware Specifications

Performance Specifications

Security & Networking Features

Ideal Application Scenarios

1. SMB & Mid-Size Business Networks

• Use Case: Secure main office networks with 25–100 users; protect against malware, ransomware, and unauthorized access.
• Why FG-60F: Compact, affordable, and easy to manage; delivers enterprise-grade security without enterprise complexity.

2. Enterprise Branch Offices & Retail Chains

• Use Case: Connect 5–50 branch locations via Secure SD-WAN; centralize security policies; optimize SaaS/UC traffic.
• Why FG-60F: Zero-touch deployment for remote branches; auto-failover ensures uptime; FortiManager unifies global management.

3. Hybrid Work & Remote Access Hubs

• Use Case: Securely connect remote employees, contractors, and third-party vendors; support VPN and cloud app access.
• Why FG-60F: 200 concurrent SSL VPN users; 900Mbps SSL VPN throughput; integrates with FortiClient endpoint protection.

4. Multi-Cloud & SaaS-First Environments

• Use Case: Secure traffic to AWS, Azure, Microsoft 365, and Salesforce; inspect encrypted TLS 1.3 traffic.
• Why FG-60F: Hardware-accelerated SSL inspection; SD-WAN optimizes cloud traffic paths; application control enforces cloud access policies.

5. Small Data Centers & Edge Networks

• Use Case: Protect small data centers, server rooms, and edge locations; segment networks with DMZ and internal zones.
• Why FG-60F: Dedicated DMZ port; high firewall throughput; FortiLink integrates switches for end-to-end security.

Supported Accessories & Modules

Official Fortinet Accessories

1. FortiSwitch Series: FortiSwitch 108E/124E (managed via FortiLink for secure access switching).
2. FortiAP Series: FortiAP 221E/321E (Wi-Fi 5/6 access points, managed via FortiLink).
3. FortiCare Support: 1–5 year FortiCare Premium (24/7 technical support, firmware updates, hardware replacement).
4. FortiGuard Subscriptions: Unified Threat Protection (UTP), Web Filtering, Application Control, Anti-Malware, and AI-Powered Threat Intelligence.
5. 3G/4G USB Modems: Compatible with FG-60F’s USB 3.0 port for redundant WAN connectivity.
6. Wall-Mount Kit: Official Fortinet wall-mount brackets for secure installation.

Compatible Third-Party Accessories

• USB 3.0 4G/LTE Modems: For backup WAN links in remote areas.
• RJ45 Console Cables: For local initial configuration.
• External Power Adapters: Replacement 100–240V AC adapters.

Frequently Asked Questions (FAQ)

Q1: What is the user capacity of the Fortinet FG-60F?

A1: Optimized for 25–100 concurrent users in SMB and branch office environments.

Q2: Does the FG-60F support TLS 1.3 inspection?

A2: Yes—powered by the SOC4 ASIC, it delivers 750Mbps TLS 1.3 SSL inspection throughput for encrypted traffic protection.

Q3: Can the FG-60F be deployed as a Secure SD-WAN hub?

A3: Absolutely—its patented SOC4 SD-WAN ASIC enables multi-link traffic steering, auto-failover, and application-aware routing for branch and SMB SD-WAN deployments.

Q4: What is the difference between FG-60F and FG-61F?

A4: The FG-61F includes a 128GB internal SSD for local logging and storage, while the FG-60F does not. All other performance and security features are identical.

Q5: Does the FG-60F require additional software licenses?

A5: The base hardware includes FortiOS. FortiGuard security subscriptions (UTP, Web Filtering) and FortiCare support are sold separately.

Q6: Can the FG-60F be managed remotely?

A6: Yes—via FortiGate Cloud (free basic management) or FortiManager (enterprise-grade centralized management for multi-device environments).

Q7: What is the power consumption of the FG-60F?

A7: 10.17W (operational)—fanless design ensures silent operation and low energy costs.

Q8: How many FortiSwitches and FortiAPs can the FG-60F manage via FortiLink?

A8: Up to 16 FortiSwitches and 64 FortiAPs for unified security and access management.
