Comprehensive Product Overview

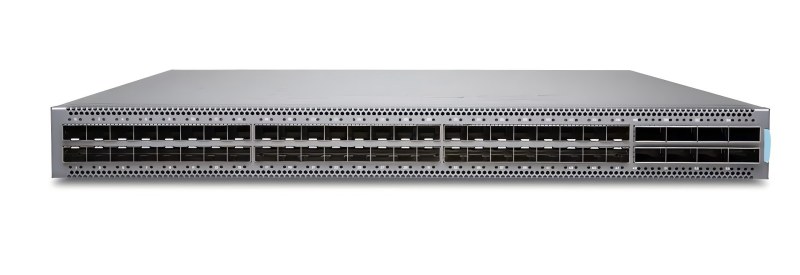

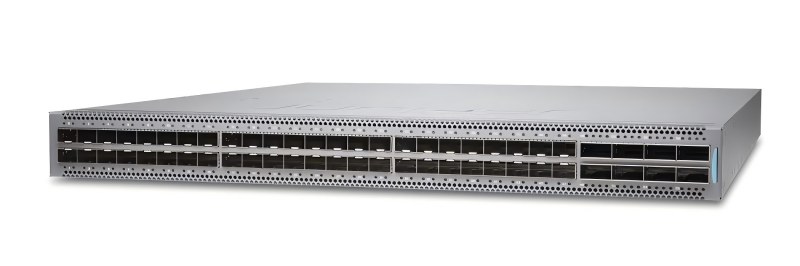

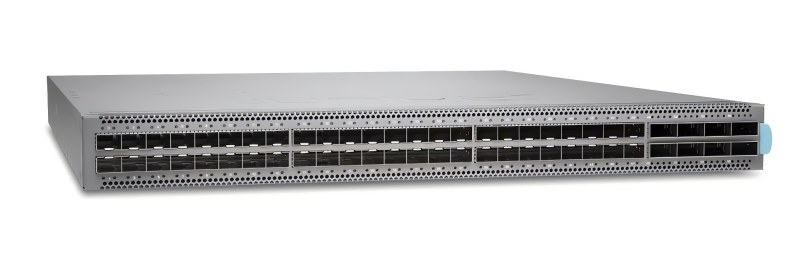

The Juniper QFX5120-48Y-AFO is a flagship high-speed model in Juniper’s QFX5120 Series of fixed-configuration data center switches, engineered to meet the demands of agile, bandwidth-intensive modern networks. Optimized for top-of-rack (ToR), leaf, and collapsed-core deployments, it balances native 25GbE access density with 100GbE uplink scalability, making it ideal for EVPN-VXLAN overlay fabrics and high-throughput server connectivity.

Designed for low-latency performance (as low as 550ns), the switch is powered by a 2.2 GHz quad-core Intel CPU with 16 GB ECC DRAM and 50 GB SSD storage, ensuring robust processing for complex Layer 3 routing, VXLAN encapsulation, and automation tasks. The front-to-back airflow (AFO) design aligns with hot-aisle containment strategies, while redundant hot-swappable fans and 550W AC/DC power supplies deliver carrier-grade reliability for 24/7 mission-critical operations.

Running on Junos OS, it provides consistent feature sets across Juniper’s routing and switching portfolio, supporting unified management, advanced security, and seamless integration with Mist AI cloud automation. The QFX5120-48Y-AFO’s flexible port configuration—with QSFP28 ports configurable as 4×25GbE via breakout cables—future-proofs investments for evolving bandwidth requirements.

Key Features & Business Benefits

1. 48×25GbE SFP28 + 8×100GbE QSFP28 Ports

• Ports: 48×1/10/25GbE SFP28; 8×40/100GbE QSFP28 (configurable as 4×25GbE each)
• Benefit: High-density 25GbE access for servers/storage; 100GbE uplinks eliminate bottlenecks for spine-leaf fabrics and support high-speed stacking.

2. 4 Tbps High Performance & Ultra-Low Latency

• Capacity: 4 Tbps bidirectional switching; 1.31 Bpps wire-speed forwarding
• Latency: As low as 550ns (cut-through switching)
• Benefit: Wire-speed performance for east-west traffic; ultra-low latency optimizes AI/ML, big data, and real-time application workloads.

3. EVPN-VXLAN & Cloud-Native Automation

• Virtualization: Native EVPN-VXLAN, VXLAN routing, and segment routing
• Management: Juniper Mist AI, ZTP, Junos OS, and REST API
• Benefit: Enables scalable layer 3 fabrics for multi-cloud environments; AI-driven automation reduces deployment time and operational costs.

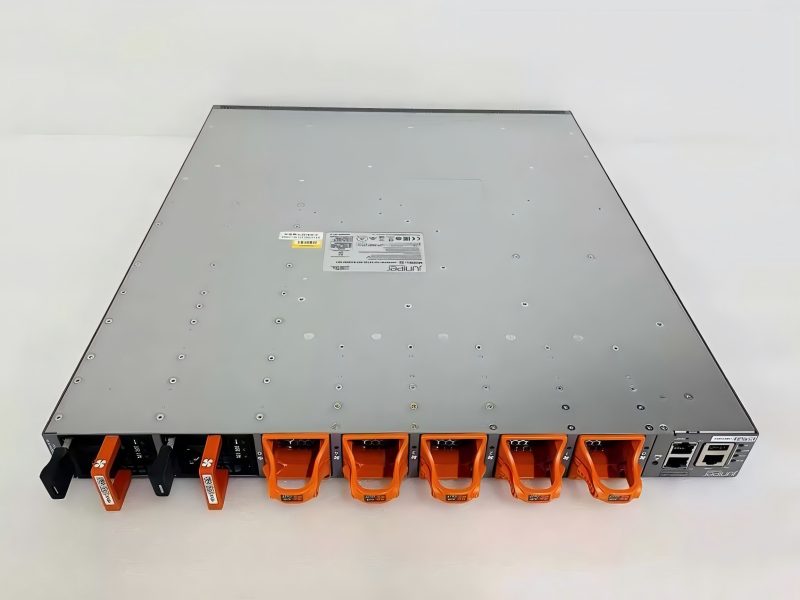

4. Front-to-Back Airflow & Redundant Hardware

• Airflow: Front-to-back (AFO) for hot-aisle containment
• Redundancy: Hot-swappable fans; redundant 550W AC/DC power supplies
• Benefit: Data center-optimized cooling; 99.999% uptime for mission-critical networks with minimal maintenance.

5. Enterprise-Grade Security & Advanced QoS

• Security: MACsec AES256, 802.1X, ACLs, 4096 VLANs, and port security
• QoS: 8 queues per port, strict priority, and traffic shaping
• Benefit: Protects sensitive data and prevents unauthorized access; prioritizes critical traffic for consistent user experience.

Technical Specifications

Ideal Application Scenarios

1. Cloud Data Center ToR/Leaf Layers: 25GbE server access + 100GbE spine uplinks for virtualized and containerized workloads.
2. EVPN-VXLAN Fabric Deployments: Native VXLAN routing and segment routing for scalable multi-cloud networks.
3. High-Performance Computing (HPC): Ultra-low latency for AI/ML, big data, and high-frequency trading applications.
4. Enterprise Campus Aggregation: 25GbE uplinks to access switches; Layer 3 routing for large campus networks.
5. Storage Area Networks (SAN): 25GbE connectivity for NVMe-oF and iSCSI storage systems.

Supported Accessories & Modules

• Transceivers (100G/25G/10G): 100GBASE-SR4/LR4; 25GBASE-SR/LR; 10GBASE-SR/LR/ER; DAC/active optical cables.
• Breakout Cables: 100G-to-4×25G; 40G-to-4×10G for QSFP28 ports.
• Power Supplies: 550W AC (included); 550W DC (optional).
• Fan Modules: Front-to-back (standard); back-to-front (optional).
• Mounting Kits: 19” rack-mount brackets; cable management arms; front/rear rack guides.

Frequently Asked Questions (FAQ)

Q1: What does “AFO” mean in QFX5120-48Y-AFO?

A: AFO stands for Airflow Out (front-to-back airflow), ideal for hot-aisle containment in data centers.

Q2: Can QSFP28 ports be split into lower-speed ports?

A: Yes. Each 100GbE QSFP28 port supports breakout cables to 4×25GbE; 40GbE QSFP+ ports support 4×10GbE.

Q3: Does it support EVPN-VXLAN?

A: Yes. It provides native EVPN-VXLAN with VXLAN routing, segment routing, and symmetric IRB for modern fabrics.

Q4: What is the latency of the QFX5120-48Y-AFO?

A: 550ns (cut-through switching) and 800ns (store-and-forward), minimizing delay for real-time workloads.

Q5: Is it compatible with Juniper Mist Cloud?

A: Yes. It supports Mist AI Wired Assurance for zero-touch provisioning, real-time analytics, and predictive maintenance.
