Comprehensive Product Overview

The Juniper MX204-HW-BASE is a high-performance, fixed-port member of Juniper’s MX Series Universal Routing Platforms, built to bridge the gap between compact branch routers and large core switches. Packaged in a 1U rack-mountable form factor, it delivers enterprise and service provider-grade performance without the footprint of modular chassis-based systems.

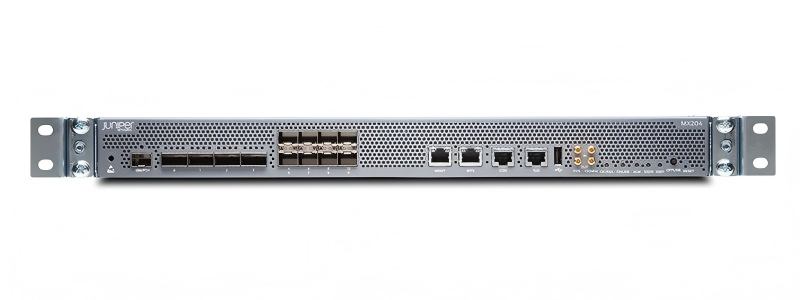

Equipped with 8×10GbE SFP+ ports and 4×rate-selectable 40/100GbE QSFP28 ports (each QSFP28 can break out to 4×10GbE via cables), it offers flexible, high-density connectivity for LAN/WAN aggregation, data center interconnection, and cloud peering. The router supports front-to-back airflow and redundant hot-swappable AC power supplies, ensuring reliability for 24/7 mission-critical operations.

Powered by Junos OS Base, it provides a consistent, modular operating system across Juniper’s portfolio, enabling unified management, automation, and seamless integration with Juniper Mist AI and cloud orchestration tools. The MX204-HW-BASE is ideal for organizations needing a compact, scalable routing platform to support bandwidth-heavy applications, 5G edge, and multi-cloud strategies.

Key Features & Business Benefits

1. 400Gbps Capacity & High-Density Ports

• Ports: 8×10GbE SFP+; 4×40/100GbE QSFP28 (breakout to 4×10GbE each)
• Performance: 400Gbps switching capacity; 300Mpps forwarding rate; 10M maximum routes
• Benefit: Future-ready 10G/40G/100G connectivity; breakout flexibility reduces port costs for high-density 10G deployments.

2. Compact 1U Design & Power Efficiency

• Form Factor: 1U rack-mountable (1.75” × 17.5” × 20”)
• Weight: 21 lbs (9.5 kg); front-to-back airflow
• Benefit: Saves valuable data center rack space; lower power consumption reduces OPEX for distributed and power-constrained environments.

3. Redundant Hardware & Carrier-Grade Reliability

• Power: Redundant hot-swappable AC (1+1); optional DC

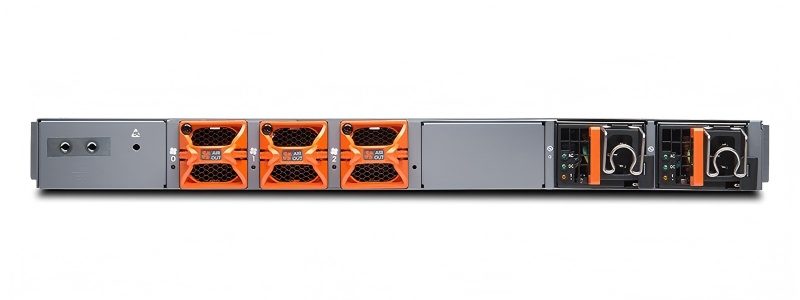

• Cooling: 3 hot-swappable fan trays; front-to-back airflow
• Benefit: Minimizes downtime with redundant components; 99.999% uptime for mission-critical service provider and enterprise networks.

4. Junos OS Base & SDN-Ready Management

• Software: Junos OS Base (routing, switching, security, MPLS, Segment Routing)
• Management: CLI, SNMP, REST API, ZTP, Juniper Mist AI, Junos Space
• Benefit: Unified management across Juniper devices; AI-driven automation simplifies deployment and reduces operational costs.

5. Advanced Routing & Security Features

• Protocols: OSPF, BGP, IS-IS, MPLS, Segment Routing, EVPN
• Security: MACsec, IPsec VPN, ACLs, inline security, 802.1X
• Benefit: Supports modern networking architectures; robust security protects against advanced threats for enterprise and service provider environments.

Technical Specifications

Ideal Application Scenarios

1. Service Provider Metro Edge: High-density 10G/40G/100G aggregation for residential and business broadband services.
2. Enterprise Data Center & Campus Core: 10G/40G server aggregation, spine-leaf switching, and campus backbone routing.
3. Multi-Cloud Gateway: EVPN/MPLS connectivity between on-premises data centers and public cloud environments.
4. 5G & Mobile Edge: Low-latency routing for 5G radio access network (RAN) aggregation and edge computing.
5. Mid-Size Enterprise WAN: VPN, SD-WAN, and branch connectivity for organizations with 1,000–10,000 users.

Supported Accessories & Modules

• Transceivers: 10GBASE-SR/LR/ER/ZR; 40GBASE-SR4/LR4; 100GBASE-SR4/LR4/ER4; DAC/active optical cables for SFP+/QSFP28 ports.
• Power Supplies: Redundant AC PSU (included); DC PSU (optional).
• Mounting Kits: 19” rack-mount brackets; cable management arms; front/rear rack guides.
• Fan Trays: Hot-swappable front-to-back fan trays (included).
• Management Accessories: Console cables; USB adapters; out-of-band management switches.

Frequently Asked Questions (FAQ)

Q1: What does “HW-BASE” mean?

A: HW-BASE = Base hardware configuration (chassis, fans, redundant AC PSUs) + Junos OS Base license (perpetual, includes core routing/switching features).

Q2: Can QSFP28 ports be used for 10G connectivity?

A: Yes. Each QSFP28 port supports breakout cables to split into 4×10GbE SFP+ ports, maximizing 10G density.

Q3: Does it support high availability (HA)?

A: Yes. It supports VRRP/HSRP for gateway redundancy and ** Graceful Restart (GR)** for routing protocol HA; redundant PSUs/fans enhance reliability.

Q4: What security features are included in Junos OS Base?

A: MACsec, IPsec VPN, ACLs, 802.1X, port security, and basic inline threat protection.

Q5: Is it compatible with Juniper Mist AI?

A: Yes. It supports Mist AI Wired Assurance for zero-touch provisioning, real-time analytics, and predictive maintenance.
