Comprehensive Product Overview

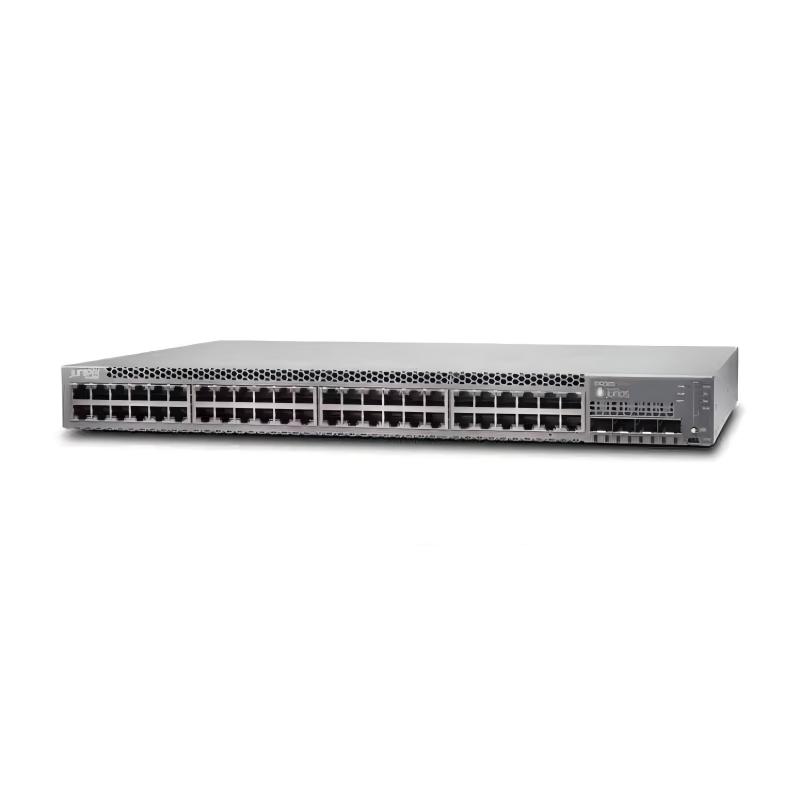

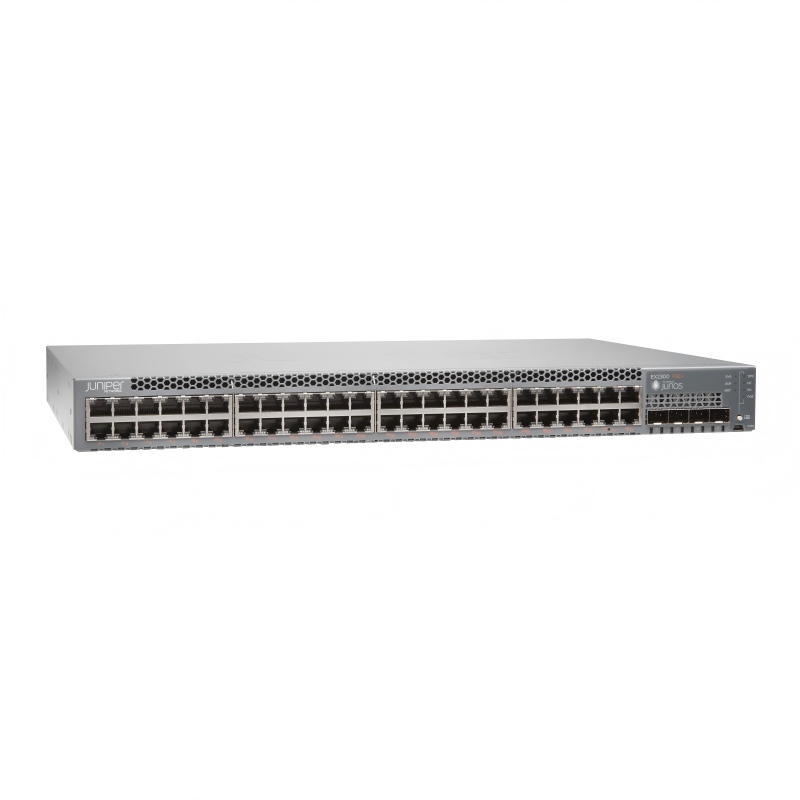

The Juniper EX2300-48T is a fixed-configuration, 1U rackmount Ethernet switch built for entry-level enterprise access layers, branch offices, remote sites, and small-to-medium campus networks. As part of Juniper’s EX2300 series, it balances high port density, performance, and affordability for converged data, voice, and video traffic.

Equipped with 48x 10/100/1000BASE-T copper ports for end-device connectivity (PCs, printers, IP cameras, wireless APs) and 4x SFP/SFP+ slots for flexible 1GbE or 10GbE fiber uplinks to aggregation/core switches. Powered by Juniper’s ASIC-based Packet Forwarding Engine (PFE) and a 1.25GHz ARM CPU, it delivers 176 Gbps switching capacity and 130 Mpps wire-rate Layer 2 throughput without performance degradation.

Running on Junos OS, the EX2300-48T provides consistent, carrier-grade reliability across Juniper’s product portfolio, simplifying management and reducing operational complexity. It supports Virtual Chassis (up to 4 switches as one logical device) and Junos Fusion Enterprise (satellite mode), enabling scalable, unified network management for growing environments. With Energy Efficient Ethernet (EEE) and robust security features, it meets modern enterprise demands for efficiency, security, and scalability.

Key Features & Business Benefits

1. High-Density Port Configuration

• 48x 10/100/1000BASE-T ports: Wire-speed Gigabit connectivity for end devices; auto-sensing for seamless integration.
• 4x SFP/SFP+ uplinks: Flexible 1GbE (SFP) or 10GbE (SFP+) fiber connections for high-speed aggregation/core links; supports diverse fiber media.
• Business Benefit: Maximize connectivity in 1U space; reduce hardware costs by eliminating external uplink adapters.

2. Wire-Speed Performance & Reliability

• 176 Gbps switching capacity and 130 Mpps Layer 2 throughput: Non-blocking performance for all ports, even under full load.
• ASIC-based PFE + Junos OS: Carrier-grade reliability; consistent performance with all control-plane features enabled.
• Business Benefit: Eliminate network bottlenecks; ensure stable performance for latency-sensitive applications (VoIP, video conferencing).

3. Scalable Virtual Chassis & Fusion Support

• Virtual Chassis: Connect up to 4 EX2300 switches into a single logical device via SFP+ uplinks; one IP address for management.
• Junos Fusion Enterprise: Operate as a satellite device to merge multiple wiring closets into one management platform.
• Business Benefit: Scale networks without reconfiguring management; reduce IT overhead for multi-switch environments.

4. Layer 2 & Basic Layer 3 Capabilities

• Layer 2: VLANs (4096), STP/RSTP/MSTP, LACP (802.3ad), LLDP, MAC address filtering (16K MAC table).
• Layer 3: Static routing, RIP, OSPF Lite, policy-based routing (PBR).
• Business Benefit: Support segmented networks and basic routing; eliminate need for separate routers in small campuses/branches.

5. Simplified Management & Cloud Integration

• Junos OS: Unified CLI, J-Web GUI, SNMP, and Junos Space management; consistent experience across Juniper devices.
• Juniper Mist Wired Assurance: AI-powered cloud management for automated onboarding, provisioning, and troubleshooting.
• Business Benefit: Reduce IT training costs; accelerate deployment and resolve issues faster with cloud-driven automation.

6. Enterprise-Grade Security

• Port security: MAC limiting, 802.1X authentication, PEAP/TTLS support.
• Junos OS firewall filters: Control traffic access; prevent spoofing and unauthorized network entry.
• Business Benefit: Protect sensitive data; comply with enterprise security policies and regulatory requirements.

7. Energy Efficiency & Compact Design

• 1U rackmount: Space-saving form factor for standard 19-inch racks.
• Energy Efficient Ethernet (EEE): Reduce power consumption during low traffic; fixed 100–240V AC power supply.
• Business Benefit: Lower energy bills; fit in space-constrained environments (branch closets, retail racks).

Technical Specifications

Ideal Application Scenarios

1. Enterprise Campus Access Layers: High-density Gigabit connectivity for end devices in office buildings, classrooms, and workgroups.
2. Branch & Remote Offices: Compact, cost-effective switching for small-to-medium branches; supports VoIP, video, and data convergence.
3. Retail & Hospitality: Connect IP cameras, POS systems, wireless APs, and guest networks in stores, hotels, and restaurants.
4. Small-to-Medium Data Centers: Top-of-rack (ToR) access switching for server connectivity with 10GbE uplinks to aggregation layers.
5. Converged Network Environments: Unified data/voice/video networks; supports 802.11ac Wave 2 wireless APs via Gigabit ports.

Supported Accessories & Modules

Compatible Transceivers (SFP/SFP+ Uplinks)

• 1GbE SFP: Juniper EX-SFP-1GE-SX (multimode, 550m), EX-SFP-1GE-LX (singlemode, 10km), EX-SFP-1GE-T (copper, 100m).
• 10GbE SFP+: Juniper EX-SFP-10GE-SR (multimode, 300m), EX-SFP-10GE-LR (singlemode, 10km), EX-SFP-10GE-ER (singlemode, 40km).

Management & Power Accessories

• RJ45 Console Cable: For local CLI management.
• USB Flash Drive: For Junos OS upgrades and configuration backups.
• Rack Mount Kits: Included for 19-inch rack installation.
• Power Cords: Standard AC power cable (100–240V).

Frequently Asked Questions (FAQ)

Q1: What is the difference between EX2300-48T and EX2300-48P?

A1: The EX2300-48T is a non-PoE switch, while the EX2300-48P supports IEEE 802.3af/at PoE+ (up to 30W per port) for powering wireless APs, IP cameras, and PoE-enabled devices.

Q2: Can the EX2300-48T be managed via the cloud?

A2: Yes. It supports Juniper Mist Wired Assurance, a cloud-based management platform for automated onboarding, monitoring, and troubleshooting via AI-driven insights.

Q3: Does the EX2300-48T support 10GbE uplinks?

A3: Yes. The 4x SFP/SFP+ slots support both 1GbE (SFP) and 10GbE (SFP+) transceivers for flexible high-speed uplink connectivity.

Q4: What is Virtual Chassis, and how many switches can I connect?

A4: Virtual Chassis is a Juniper technology that merges multiple switches into one logical device. The EX2300-48T supports up to 4 switches in a Virtual Chassis via SFP+ uplink ports.

Q5: Is the EX2300-48T suitable for small data centers?

A5: Absolutely. It functions as a cost-effective top-of-rack (ToR) switch, providing 48x Gigabit server ports with 10GbE uplinks to core/aggregation switches.

Q6: What operating system does the EX2300-48T use?

A6: It runs on Junos OS, Juniper’s unified operating system that delivers consistent features, security, and management across routers, switches, and firewalls.
