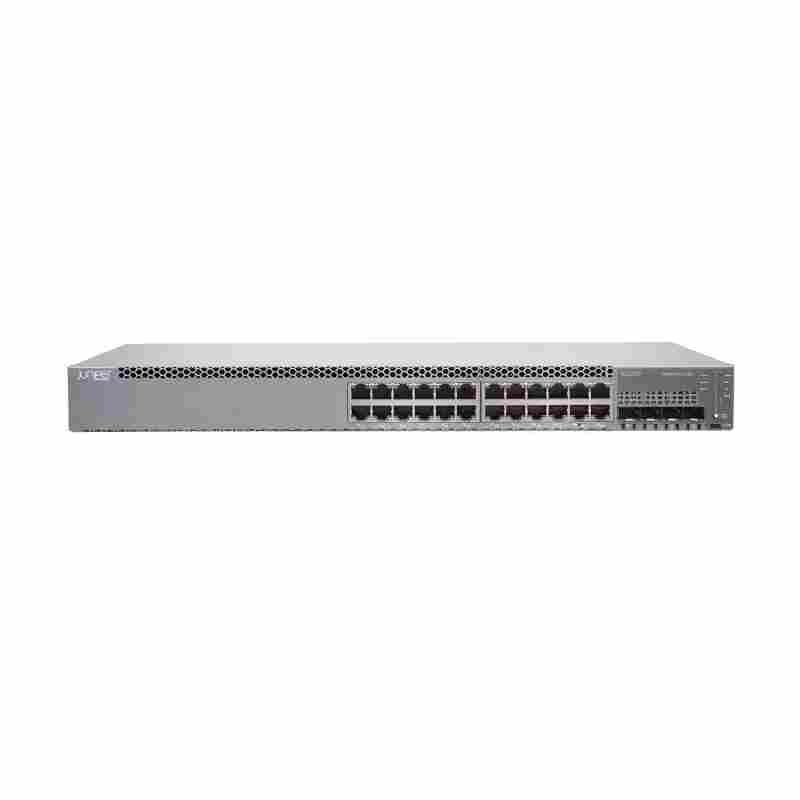

The Juniper EX2300-24T is an entry-level, fixed-form-factor Ethernet switch designed for access-layer deployments in enterprise campuses, branch offices, retail locations, and small-to-medium businesses (SMB). As part of the Juniper EX2300 series, it delivers robust Layer 2 switching and basic Layer 3 routing capabilities in a space-saving 1RU form factor, making it ideal for environments where rack space, power efficiency, and cost optimization are critical.
Equipped with 24x 10/100/1000BASE-T copper ports for end-device connectivity (PCs, printers, IP cameras, wireless APs) and 4x SFP/SFP+ uplink ports supporting 1GbE or 10GbE fiber connections, the EX2300-24T offers flexible uplink options to aggregation switches or core routers. Powered by Junos OS, Juniper’s industry-proven operating system, it ensures consistent performance, security, and manageability across the network. It supports Virtual Chassis technology (up to 4 switches stacked as one logical device) and Junos Fusion Enterprise (as a satellite device), simplifying network scaling and management. With wire-rate performance, energy-efficient design, and comprehensive QoS/security features, the EX2300-24T serves as a reliable foundation for converged voice, video, and data networks.
| Feature | Business Benefit |
|---|---|
| 24x 10/100/1000BASE-T + 4x SFP/SFP+ Uplinks | High-density Gigabit access; flexible 1G/10G fiber uplinks; investment protection |
| 1RU Compact Form Factor | Saves rack space; reduces power/cooling costs; easy deployment in wiring closets |
| Wire-Rate Performance (95 Mpps) | Non-blocking throughput for bandwidth-intensive applications; no traffic bottlenecks |
| Virtual Chassis (Up to 4 Switches) | Simplifies scaling; single IP management; reduces operational overhead |
| Junos OS Reliability & Consistency | Field-proven stability; consistent CLI; reduced training and maintenance costs |
| Layer 2 + Basic Layer 3 Routing | Supports VLANs, OSPF, static routing; meets enterprise access-layer requirementsJuniper Networks |
| Juniper Mist Wired Assurance Support | AI-powered cloud management; zero-touch provisioning; proactive monitoringJuniper Networks |
| Energy Efficient Ethernet (EEE) | Low power consumption; reduces data center energy costs; eco-friendly operationJuniper Networks |
| Comprehensive Security & QoS | ACLs, port security, 802.1X; traffic prioritization for voice/video; enhanced network safety |
| Parameter | Specification |
|---|---|
| Part Number | EX2300-24T |
| Form Factor | 1RU (44.19 × 4.45 × 25.9 cm) |
| Ports | 24 × 10/100/1000BASE-T (RJ45); 4 × SFP/SFP+ (1G/10G) |
| Switching Capacity | 128 Gbps (bidirectional) |
| Forwarding Rate | 95 Mpps (wire-speed) |
| MAC Address Table | 16,000 entries |
| VLANs | 4,093 |
| IPv4 Routing | 4,096 unicast; 2,048 multicast routes |
| IPv6 Routing | 2,048 unicast; 1,024 multicast routes |
| Virtual Chassis | Up to 4 EX2300 switches |
| Operating System | Junos OS |
| Power Supply | Internal AC (100–240V) |
| Power Consumption | < 50W (typical) |
| Operating Temperature | 0°C to +50°C |
| Management | 1 × RJ45 console; 1 × USB; out-of-band management port |
| Compliance | IEEE 802.3, 802.1Q, 802.1X, CE, FCC, RoHS |
A: The EX2300-24T is a non-PoE model with 24 Gigabit copper ports, while the EX2300-24P supports IEEE 802.3af/at PoE+ (up to 30W per port) for powering wireless APs, IP cameras, and PoE-enabled devices.
A: Yes. It supports Virtual Chassis technology, allowing up to 4 EX2300 switches (including 24T, 24P, 48T, 48P models) to be interconnected and managed as a single logical switch.
A: Absolutely. It is compatible with Juniper Mist Wired Assurance, enabling AI-powered cloud management, zero-touch provisioning, real-time monitoring, and automated troubleshooting.
A: The 4 uplink ports accept both 1G SFP and 10G SFP+ transceivers, supporting a maximum uplink speed of 10Gbps per port.
A: No. It supports basic Layer 3 routing (static routes, OSPF) for access-layer and distribution-layer applications. For core-layer routing, Juniper recommends MX series routers or EX4300/EX4600 switches.
A: It runs on Junos OS, Juniper’s proprietary operating system known for its stability, security, and consistent CLI across Juniper’s routing and switching portfolio
