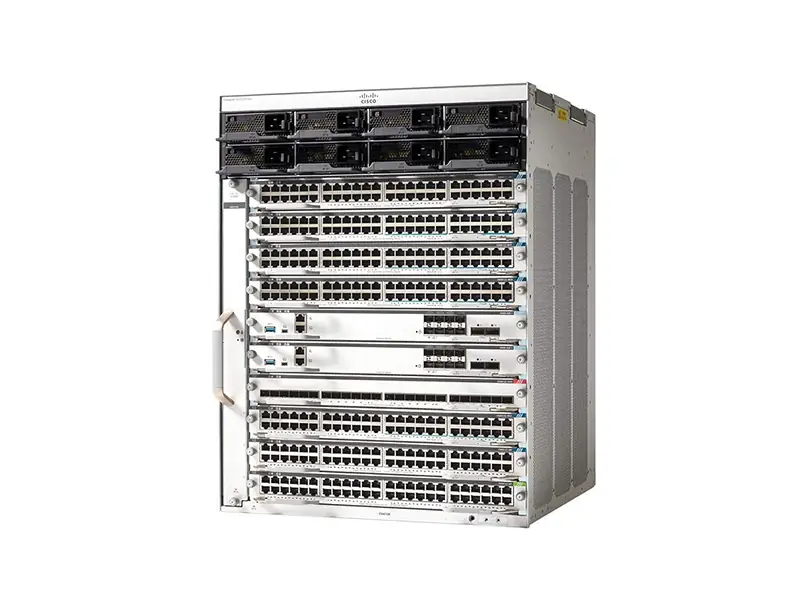

The Cisco Catalyst C9410R-E is the ultimate 10-slot modular chassis for large-scale campus networks. Supporting dual supervisors, 8 line cards (up to 384 ports), and Network Essentials software, it delivers unmatched high-density access and backbone resilience.
Quick Specs:
· Total Slots: 10 (2 for Supervisors, 8 for Line Cards)
· Max Port Density: Up to 384 Gigabit/mGig ports
· High Availability: Dual Supervisor & up to 8 Power Supplies
· Software: Cisco IOS XE Network Essentials
· Form Factor: 13RU Rack-mountable
Comprehensive Product Overview
The Cisco Catalyst C9410R-E is the flagship 10-slot chassis of the industry-leading Catalyst 9400 Series. Engineered for large enterprises, universities, and healthcare campuses that demand uncompromising scalability, this massive 13-Rack-Unit (13RU) modular switch serves as the critical backbone for intent-based networking and Cisco Software-Defined Access (SD-Access).
By providing an astonishing 8 dedicated slots for operational line cards, the C9410R-E allows organizations to scale up to 384 non-blocking Gigabit or Multigigabit ports in a single chassis. This unparalleled density drastically reduces the number of network nodes required, simplifying IT management while providing a robust, highly available foundation capable of powering next-generation IoT devices and multi-gigabit wireless infrastructure for the next decade.
Key Features & Business Benefits
Unmatched Port Density: Replace multiple stacks of fixed switches. With 8 available line card slots, you can deploy up to 384 copper (10/100/1000 or mGig) ports, or high-density fiber (SFP/SFP+) ports, centralizing your network access layer into one powerful, easily managed node.
Mission-Critical High Availability: Designed for 99.999% uptime. It supports dual redundant Supervisor Engines (in Slots 5 and 6) enabling Non-Stop Forwarding and Stateful Switchover (NSF/SSO). If one supervisor fails, the secondary seamlessly takes over without dropping active sessions.
Massive UPOE+ Power Capacity: Equipped with 8 redundant power supply bays, the chassis can deliver enormous amounts of Power over Ethernet. It easily supports 90W Cisco UPOE+ across hundreds of ports, simultaneously powering Wi-Fi 6E APs, IP cameras, and smart building sensors.
Advanced Thermal Design: The 13RU chassis features a heavy-duty, dual-serviceable fan tray with N+1 redundancy. Its highly optimized front-to-back airflow ensures the system remains cool even when fully populated with high-bandwidth, high-power line cards.
Secure & Programmable Foundation: Includes the foundational Network Essentials software license. Built on Cisco IOS XE, it natively supports MACsec AES-256 encryption, Trustworthy Systems, and zero-touch automation via Cisco DNA Center.
Technical Specifications
Specification
Details for C9410R-E
Product Series
Cisco Catalyst 9400 Series
Chassis Type
10-Slot Modular Chassis
Supervisor Slots
2 dedicated slots (Slots 5 and 6)
Line Card Slots
8 dedicated slots (Slots 1-4, 7-10)
Software License
Cisco IOS XE Network Essentials (Perpetual)
Maximum Port Density
Up to 384 ports (with eight 48-port line cards)
System Bandwidth
Scalable (Dependent on installed Supervisor Engine)
Power Supply Slots
Up to 8 redundant AC/DC power supply bays
Fan Tray
1 field-replaceable fan tray (N+1 redundant fans)
Rack Units (RU)
13 RU
Dimensions (H x W x D)
22.61 x 17.30 x 16.30 in. (57.43 x 43.94 x 41.40 cm)
Ideal Application Scenarios
High-Density Campus Access Core: The ultimate solution for large campus buildings (like university dormitories or corporate headquarters) needing to securely connect 300+ endpoint devices, PCs, and phones from a single wiring closet.
Enterprise Aggregation Node: Positioned in a main distribution frame (MDF), the C9410R-E populated with 10G/25G fiber line cards can aggregate vast amounts of uplink traffic from dozens of edge switches and route it to the data center spine.
Smart Building & IoT Power Hub: Leverage the massive power supply capacity and 384-port UPOE+ potential to centrally power and manage an entire smart building’s LED lighting systems, biometric scanners, and digital signage.
Required Components (Build Your BOM)
Critical Note: The C9410R-E is a baseline chassis bundle. To create a fully functioning enterprise switch, you must add the following modular components to your order: ·Supervisor Engines: At least one Catalyst 9400 Supervisor (e.g., C9400-SUP-1XL, or C9400-SUP-2). Two are highly recommended for enterprise redundancy. ·Line Cards: 1 to 8 business line cards (e.g., C9400-LC-48U for PoE/copper, C9400-LC-24S for fiber). ·Power Supplies: Multiple power supplies depending on the required PoE budget (e.g., C9400-PWR-3200AC). ·Cisco DNA License: A mandatory 3, 5, or 7-year DNA term subscription must be purchased alongside the hardware.
Frequently Asked Questions (FAQ)
Q1: Which slots are reserved for the Supervisor Engines in the C9410R chassis?
A1: In the 10-slot C9410R chassis, the Supervisor Engines must be installed in the two center slots: Slot 5 and Slot 6. The remaining eight slots (1-4 and 7-10) are exclusively for Line Cards.
Q2: What is the maximum number of ports supported by the C9410R-E?
A2: By populating all 8 available line card slots with 48-port line cards (such as the C9400-LC-48T or C9400-LC-48U), the chassis supports a maximum of 384 Gigabit or Multigigabit ports.
Q3: Does the C9410R-E include the power supplies?
A3: No. The C9410R-E bundle includes the metal chassis, the fan tray assembly, and the Network Essentials software license. Power supplies, Supervisors, and Line Cards must be configured and purchased separately based on your specific power and bandwidth needs.
Q4: Can I upgrade the software license to Network Advantage later?
A4: Yes. The chassis comes with the perpetual Network Essentials license for basic routing and switching. If you later require advanced routing protocols (like BGP or full OSPF) or Cisco SD-Access features, you can upgrade to Network Advantage via Cisco Smart Licensing.
Q5: Is special rack reinforcement required to mount this switch?
A5: The C9410R chassis is 13RU tall and can weigh over 150 lbs (68 kg) when fully populated with line cards and power supplies. It requires a standard 19-inch, 4-post equipment rack capable of supporting heavy modular equipment. Proper rack-mount brackets are included.
