The Cisco Catalyst C9200L-48P-4X-E is a high-density enterprise access switch designed for demanding PoE deployments. It easily powers Wi-Fi 6, IoT, and IP cameras while delivering secure, high-speed 10G uplink connectivity.
Quick Specs:
· Ports: 48 x 1G Base-T (PoE+)
· Uplinks: 4 x 10G SFP+
· PoE Budget: 740W
· Software: Network Essentials
· Form Factor: 1RU Rack-mountable
Comprehensive Product Overview

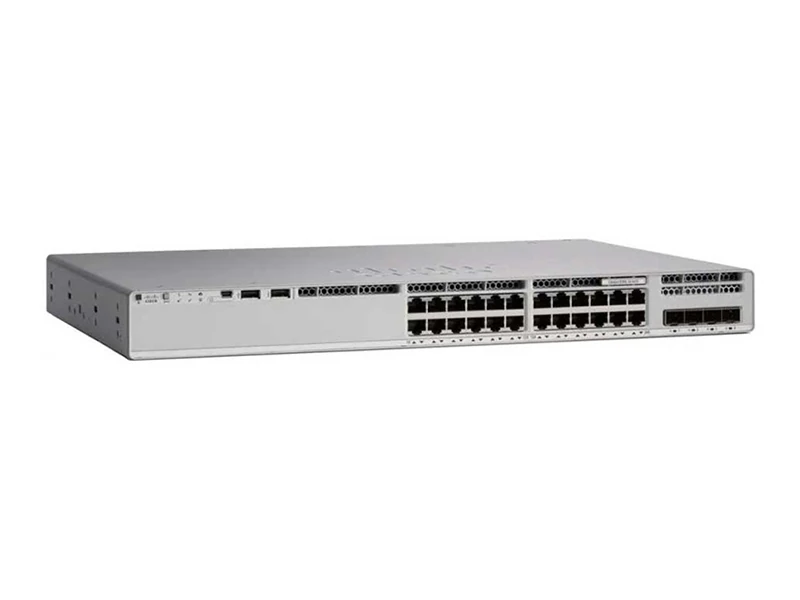

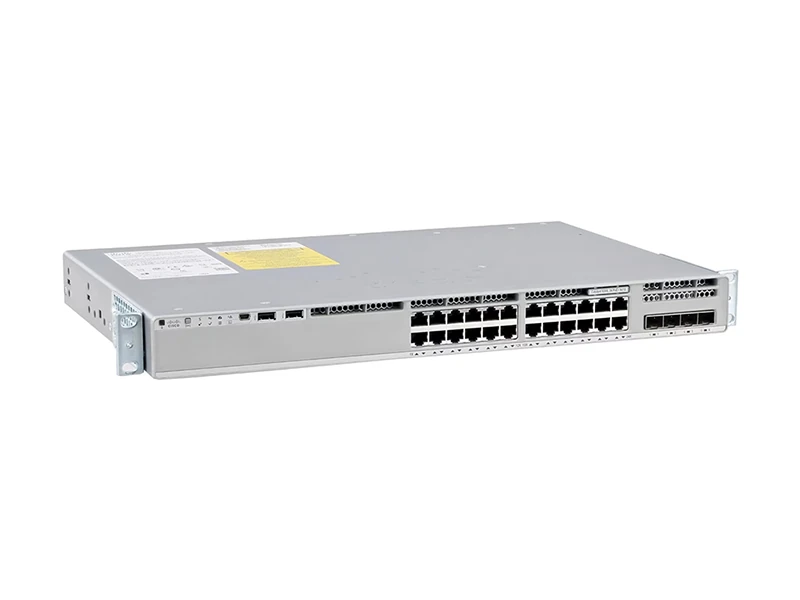

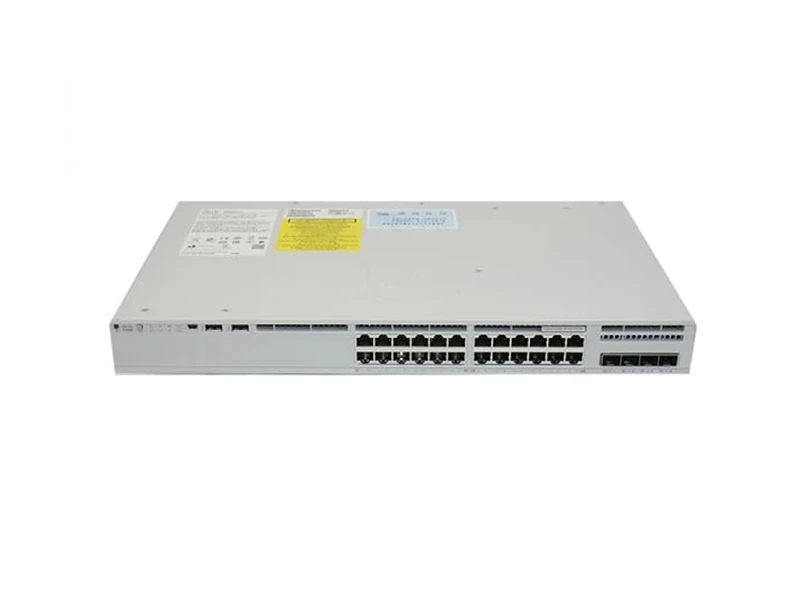

As a key component of the Cisco Catalyst 9000 family, the C9200L-24P-4X-E brings the principles of intent-based networking to the enterprise branch and mid-market campus access layer. Built on the custom UADP 2.0 Mini ASIC, it delivers unmatched performance, programmability, and investment protection.
Unlike basic data switches, this model provides up to 30W of power per port (PoE+) directly over Ethernet cables, significantly simplifying the deployment of IoT devices and wireless access points. Coupled with 10-Gigabit fiber uplinks, it ensures that your network core receives data at lightning-fast speeds, making it a perfect upgrade from legacy Cisco 2960-X or 2960-XR PoE switches.
Key Features & Business Benefits
Robust PoE+ Power Delivery: Delivers up to 30 Watts per port via IEEE 802.3at (PoE+), with a default system budget of 370W. Perfect for powering next-generation devices like Wi-Fi 6 access points, PTZ security cameras, and IP telephony without needing extra electrical wiring.
High-Speed 10G Uplinks: Equipped with four 10-Gigabit SFP+ uplink ports, ensuring high-bandwidth, non-blocking data aggregation back to your core or distribution switches.
Enterprise-Class Resiliency: Supports field-replaceable redundant power supplies (FRU) and redundant fans. The optional StackWise-80 architecture allows managing up to 8 switches as a single virtual chassis to maximize network uptime.
Advanced Security Foundation: Fortify your network with MACsec AES-128 link encryption, Secure Boot, Trustworthy Systems, and Cisco TrustSec for identity-based access control and micro-segmentation.
Technical Specifications
Specification
Details for C9200L-24P-4X-E
Product Series
Cisco Catalyst 9200L Series
Downlink Ports
24 x 10/100/1000 Ethernet with Full PoE+ (802.3at)
Uplink Ports
4 x 10G SFP+ (Supports both 1G and 10G transceivers)
Wi-Fi 6 & Wireless Centric Networks: The combination of PoE+ to power advanced Access Points and 10G uplinks to handle massive wireless data traffic makes this switch the perfect access-layer foundation for wireless-first offices.
IP Surveillance and Security Systems: Centrally power and connect dozens of high-definition Pan-Tilt-Zoom (PTZ) IP cameras, card readers, and biometric scanners across corporate facilities.
High-Performance Branch Offices: Provide regional branches with enterprise-grade speed, routing, and power delivery in a compact, easy-to-manage 1RU footprint via Cisco DNA Center.
Supported Accessories & Transceiver Modules
Maximize the performance of your C9200L-24P-4X-E with these fully compatible, genuine Cisco accessories: ·PWR-C5-500WAC=: 505W AC Config 5 Power Supply (Purchase for secondary redundancy or to increase total PoE budget). ·C9200L-STACK-KIT=: Catalyst 9200L Stacking Kit (Required for switch stacking). ·SFP-10G-SR: 10GBASE-SR SFP+ transceiver module for Multi-Mode Fiber (Short reach). ·SFP-10G-LR: 10GBASE-LR SFP+ transceiver module for Single-Mode Fiber (Long reach). ·GLC-SX-MMD / GLC-LH-SMD: 1G SFP transceivers (Fully compatible with the 10G ports).
Frequently Asked Questions (FAQ)
Q1: What is the total PoE power budget for the C9200L-24P-4X-E?
A1: With the default 505W primary power supply (PWR-C5-500WAC), the switch provides a PoE budget of 370W. If you install a secondary 505W power supply, you can increase redundancy or potentially boost the total available PoE budget depending on the configuration.
Q2: Are the 10G SFP+ uplink ports backwards compatible with 1G SFP modules?
A2: Yes. The four 10G SFP+ uplink ports on the C9200L-24P-4X-E are fully backwards compatible. You can plug in standard 1G SFP modules (like GLC-SX-MMD) if your core network is not yet ready for 10G speeds.
Q3: What does the “P” stand for in C9200L-24P-4X-E?
A3: In Cisco’s naming convention, the “P” indicates that the switch supports PoE+ (Power over Ethernet Plus, IEEE 802.3at) on all of its downlink ports. “T” indicates Data-only, and “UX” indicates mGig and UPOE.
Q4: Does this switch support advanced routing protocols like BGP?
A4: No. This specific model ends with “-E”, which means it comes with the Network Essentials license. This covers basic Layer 3 routing (OSPF stub, RIP, Static). To get full routing capabilities like BGP and full OSPF, you need a model with the Network Advantage (“-A”) license or an upgraded license tier.
Q5: Can I stack the C9200L-24P-4X-E with a Cisco 9200 (non-L) series switch?
A5: No. The Catalyst 9200L series uses the StackWise-80 architecture, which is distinct from the StackWise-160 architecture used in the standard Catalyst 9200 series. You can only stack a 9200L switch with other 9200L switches.
