Comprehensive Product Overview

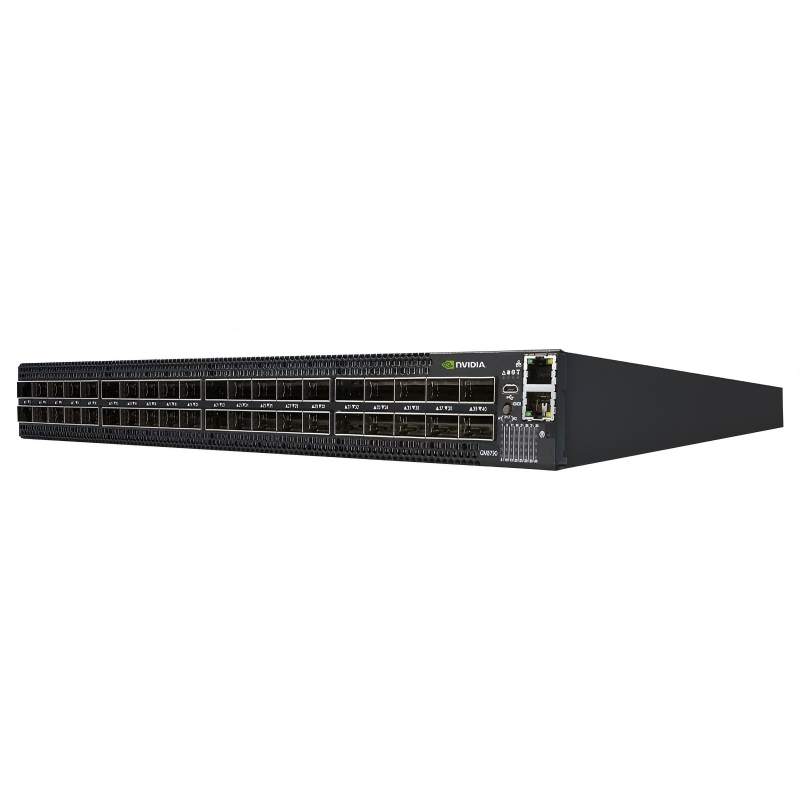

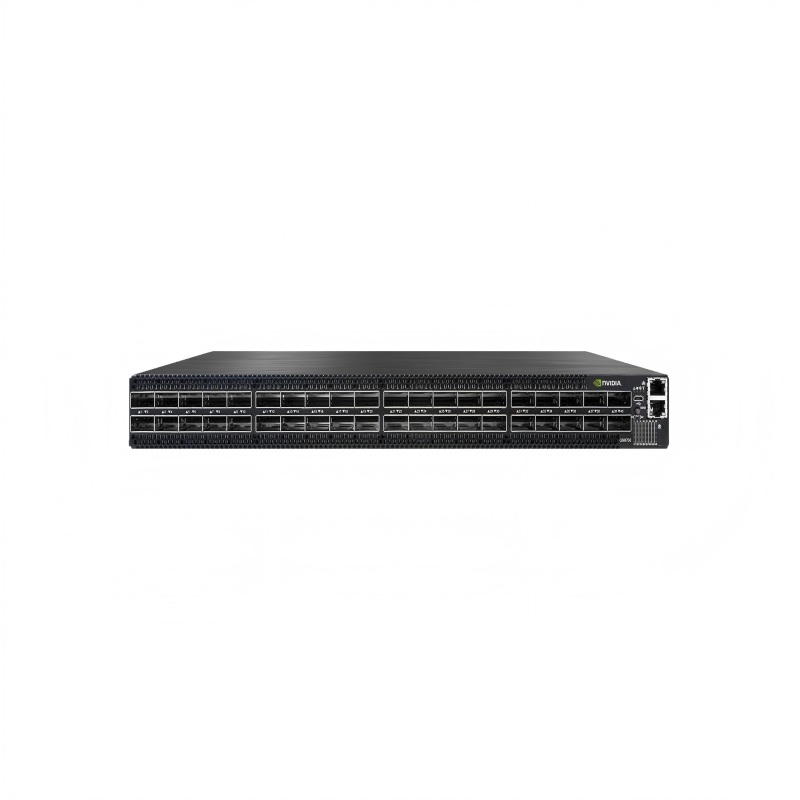

The Mellanox MQM8700-HS2F is a flagship Quantum-series HDR InfiniBand switch engineered by NVIDIA Mellanox to address the exponential bandwidth and latency demands of modern HPC, AI, and big data environments. As a 1U form-factor solution, it packs 40 non-blocking QSFP56 ports supporting 200Gb/s HDR InfiniBand, with the flexibility to split into 80 x 100Gb/s HDR100 ports via breakout cables.

Built on the Mellanox Quantum switch ASIC and driven by an x86 ComEx Broadwell dual-core CPU, the MQM8700-HS2F runs on the robust MLNX-OS for comprehensive management and fabric control. It features port-to-cable (P2C/front-to-rear) airflow, redundant hot-swap 1100W AC power supplies (1+1), and hot-swap fans (N+1) for maximum uptime in mission-critical deployments. With a total switching capacity of 16Tb/s and forwarding rate of 7,200 Mpps, it delivers wire-speed performance across all ports while maintaining ultra-low latency (<130ns) for latency-sensitive applications.

Ideal for building scalable, high-density InfiniBand fabrics, the MQM8700-HS2F supports the SHARP v2 scalable hierarchical aggregation and reduction protocol, adaptive routing, and advanced congestion management—making it the backbone of large-scale HPC clusters, AI training infrastructure, and enterprise storage networks.

Key Features & Business Benefits

Key Features

• 40 x QSFP56 Ports: 200Gb/s HDR InfiniBand per port; splits to 80 x 100Gb/s HDR100 ports.
• 16Tb/s Non-Blocking Throughput: Wire-speed performance for all ports.
• Ultra-Low Latency: <130ns port-to-port latency (InfiniBand).
• 1U Rack-Mount Form Factor: Standard depth (23.2”) for easy integration.
• P2C (Front-to-Rear) Airflow: Optimized for standard data center cooling layouts.
• Redundant Hot-Swap Components: 1+1 1100W AC power supplies; N+1 hot-swap fans.
• x86 Dual-Core CPU: ComEx Broadwell D-1508 (2.20GHz) with 8GB system memory.
• MLNX-OS: Feature-rich OS with comprehensive fabric management.
• SHARP v2 Support: Accelerates collective operations for HPC/AI workloads.
• Adaptive Routing & Congestion Control: Optimizes fabric efficiency and reliability.

Business Benefits

• Accelerate HPC/AI Workloads: 200Gb/s bandwidth and <130ns latency slash job completion times for AI training, simulation, and modeling.
• Maximize Data Center Density: 40 ports in 1U reduces rack space and cabling complexity, lowering TCO.
• Ensure 99.999% Uptime: Redundant hot-swap power/fans and robust MLNX-OS minimize downtime.
• Simplify Fabric Scalability: Supports up to 2K nodes with on-board Subnet Manager (SM) for seamless cluster expansion.
• Reduce Operational Costs: Energy-efficient design (80+ Platinum-certified power supplies) cuts power consumption.
• Future-Proof Investment: Backward compatible with EDR/FDR/QDR InfiniBand (100G/56G/40G) for legacy integration.

Technical Specifications

Ideal Application Scenarios

• High-Performance Computing (HPC) Clusters: Supercomputing, scientific simulation, computational fluid dynamics (CFD), and finite element analysis (FEA).
• AI & Machine Learning (AI/ML) Infrastructure: Large-scale model training, deep learning, and GPU cluster networking (e.g., NVIDIA DGX).
• Enterprise Data Centers (EDC): High-density virtualization, big data analytics, and distributed storage (NVMe-oF).
• Cloud & Hyperscale Environments: Scalable InfiniBand fabrics for cloud HPC/AI services.
• Research & Academic Labs: University supercomputing centers and research clusters.

Supported Accessories & Modules

• QSFP56 Optics: 200Gb/s HDR InfiniBand transceivers (SR4, LR4, ER4).
• Breakout Cables: 200Gb/s-to-2x100Gb/s HDR100 passive/active copper cables.
• Power Supplies: MTEF-PSF-AC-C (1100W AC, P2C airflow).
• Fan Modules: MTEF-FANF-C (P2C airflow, hot-swap).
• Rack Accessories: Rail kit (included), cable management arms, and 1U blanking panels.
• Management Tools: NVIDIA Mellanox OFED, MLNX-OS Manager, and SNMP monitoring software.

Frequently Asked Questions (FAQ)

Q1: What is the difference between MQM8700-HS2F and MQM8700-HS2R?

A: The -HS2F model features P2C (front-to-rear) airflow, while the -HS2R model has C2P (rear-to-front) airflow for reverse-cooled data centers.

Q2: Can the MQM8700-HS2F work with existing EDR InfiniBand hardware?

A: Yes, it is backward compatible with EDR (100G), FDR (56G), and QDR (40G) InfiniBand, supporting seamless integration with legacy fabrics.

Q3: What is the maximum cluster size supported by the on-board Subnet Manager (SM)?

A: The integrated SM supports fabrics of up to 2048 nodes for large-scale HPC/AI deployments.

Q4: Does the switch support remote management?

A: Yes, it supports web-based GUI, SNMP, Telnet, and SSH for remote configuration, monitoring, and troubleshooting.

Q5: What is the typical power consumption of the MQM8700-HS2F?

A: Typical power consumption is ~540W, with a maximum of ~800W under full load.
