Comprehensive Product Overview

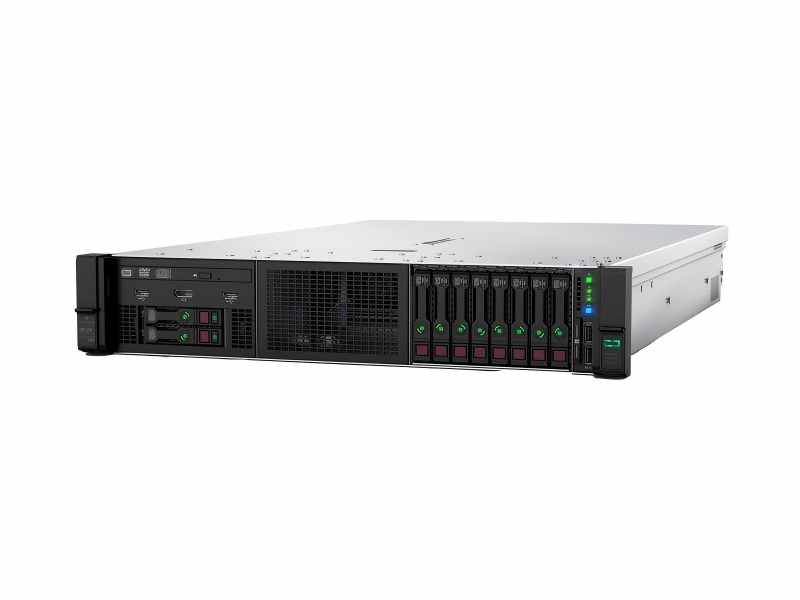

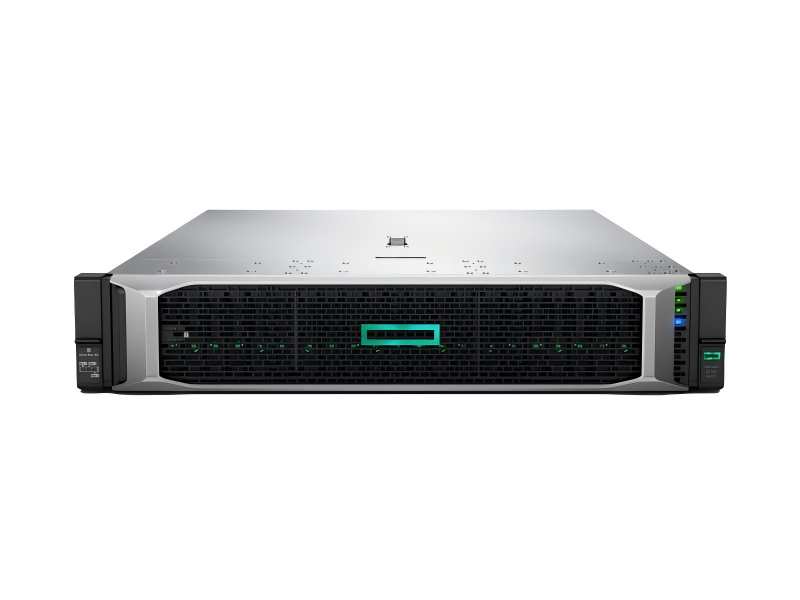

The HPE ProLiant DL380 Gen10 is a flagship 2U rack server designed to balance exceptional performance, expandable design, and enterprise-grade security for modern data centers. As a dual-socket platform, it supports 1st and 2nd Generation Intel Xeon Scalable processors (up to 56 cores, 3.9GHz), delivering robust compute power for demanding workloads like virtualization, big data analytics, and high-performance computing (HPC).

Engineered for versatility, its 2U form factor offers extensive expansion capabilities without compromising space efficiency, making it perfect for diverse server environments. The server features 24 DDR4 DIMM slots supporting up to 3.0TB of HPE DDR4 SmartMemory (2933MT/s) and Intel Optane Persistent Memory 100 Series, bridging the gap between memory and storage to accelerate data-intensive applications.

Storage flexibility is a key highlight: configurations include up to 24 SFF SAS/SATA/NVMe drives, 12 LFF SAS/SATA drives, or 8 SFF drives plus 2 NVMe SSDs, with HPE Smart Array Controllers ensuring reliable RAID protection. Integrated HPE iLO 5 enables agentless remote management, while HPE OneView simplifies lifecycle automation. Redundant hot-plug power supplies (80 PLUS Platinum/Titanium) and fans deliver 99.999% uptime and energy efficiency, reducing TCO for businesses of all sizes.

Key Features & Business Benefits

1. Dual-Socket Intel Xeon Scalable Processing
   • Supports 1st/2nd Gen Intel Xeon Scalable processors (up to 56 cores, 3.9GHz)
   • Business Benefit: Up to 60% performance improvement, accelerating virtualization, databases, and HPC workloads for faster insights and reduced processing time.
2. High-Capacity DDR4 Memory with Optane Support
   • 24 DDR4 DIMM slots (max 3.0TB DDR4 SmartMemory, 2933MT/s)
   • Intel Optane Persistent Memory 100 Series compatibility
   • Business Benefit: Handles large in-memory databases and analytics; Optane reduces storage latency by 80%, boosting application responsiveness and user experience.
3. Flexible NVMe & SAS/SATA Storage
   • Up to 24 SFF SAS/SATA/NVMe drives, 12 LFF drives, or 8 SFF + 2 NVMe SSDs
   • HPE Smart Array Controllers (RAID 0/1/5/6/10)
   • Business Benefit: NVMe delivers 10x faster I/O than SAS, ideal for transactional databases and real-time data processing; scalable storage meets growing data demands.
4. Enterprise Security with HPE iLO 5
   • HPE iLO 5 with Security Dashboard, TPM 2.0, and Intrusion Detection
   • Server Configuration Lock and secure firmware updates
   • Business Benefit: Protects against firmware attacks and unauthorized access; meets strict compliance requirements (GDPR, HIPAA) for data security.
5. Agentless Remote Management & Automation
   • Embedded HPE iLO 5 (standard) for remote monitoring, updates, and control
   • HPE OneView for streamlined lifecycle management
   • Business Benefit: Reduces IT administration time by 40%; enables remote troubleshooting without on-site visits, improving operational efficiency.
6. Energy-Efficient & Resilient Design
   • 80 PLUS Platinum/Titanium hot-plug power supplies (500W/800W)
   • Redundant hot-plug fans with auto-speed adjustment
   • Business Benefit: Cuts power costs by 30% vs. older servers; redundant components eliminate single points of failure, ensuring 24/7 uptime for critical business operations.

Technical Specifications

Ideal Application Scenarios

1. Virtualization & Private Cloud
   • High core count + large memory supports 30+ VMs per host; ideal for VMware/Hyper-V clusters and private cloud deployments requiring dense, scalable compute.
2. Database & Big Data Analytics
   • NVMe storage + Optane memory accelerates Oracle, SQL Server, and Hadoop workloads; handles real-time analytics and large datasets with low latency.
3. High-Performance Computing (HPC)
   • Dual Xeon Scalable processors + GPU support for scientific computing, AI/ML training, financial modeling, and engineering simulations.
4. Enterprise Resource Planning (ERP)
   • Reliable, high-speed performance for SAP, Oracle EBS, and other business-critical ERP applications that demand 24/7 availability.
5. Edge Computing & Remote Offices
   • Compact 2U design + redundant components for edge locations; supports low-latency applications, remote data processing, and branch office server consolidation.

Supported Accessories & Modules

• Memory: HPE DDR4 SmartMemory (8GB/16GB/32GB/64GB/128GB RDIMM/LRDIMM); Intel Optane Persistent Memory 100 Series
• Storage: HPE SAS/SATA SSDs/HDDs (SFF/LFF); NVMe SSDs (SFF); Smart Array Controllers (MR416i-a, P408i-a)
• Networking: FlexibleLOM/NDC Adapters (10GbE SFP+, 25GbE SFP28, 40GbE QSFP+); Transceivers (SR/LR/ER)
• Power: 500W/800W Flex Slot Platinum/Titanium Hot-Plug Power Supplies
• Management: HPE iLO 5 Advanced License; HPE OneView Advanced License
• Security: TPM 2.0 Module; Locking Bezel Kit; Intrusion Detection Kit
• Others: Redundant Hot-Plug Fan Kit; Rail Kit (for rack mounting); Cable Management Arm

Frequently Asked Questions (FAQ)

Q1: What is the maximum memory capacity of the DL380 Gen10?

A1: Up to 3.0TB with DDR4 SmartMemory (24 slots, 128GB DIMMs) or 6.0TB with Intel Optane Persistent Memory.

Q2: Does the DL380 Gen10 support NVMe SSDs?

A2: Yes, it supports up to 24 NVMe SSDs (24 SFF configuration) or 8 SFF + 2 NVMe drivesHewlett Packard Enterprise.

Q3: Which processors are compatible with the DL380 Gen10?

A3: 1st and 2nd Generation Intel Xeon Scalable processors (up to 56 cores, 3.9GHz).

Q4: Is remote management supported on the DL380 Gen10?

A4: Yes, via embedded HPE iLO 5 (standard) for agentless remote monitoring, updates, and control.

Q5: What operating systems are compatible with the DL380 Gen10?

A5: Windows Server, VMware vSphere, Red Hat Enterprise Linux, CentOS, and SUSE Linux Enterprise Server.

Q6: Does the DL380 Gen10 have redundant power supplies?

A6: Yes, it supports 1–2 hot-plug Flex Slot power supplies (500W/800W, 80 PLUS Platinum/Titanium).

Q7: What is the standard warranty for the DL380 Gen10?

A7: Standard 3-year HPE warranty (parts, labor, on-site support); optional extended warranties available.
