Comprehensive Product Overview

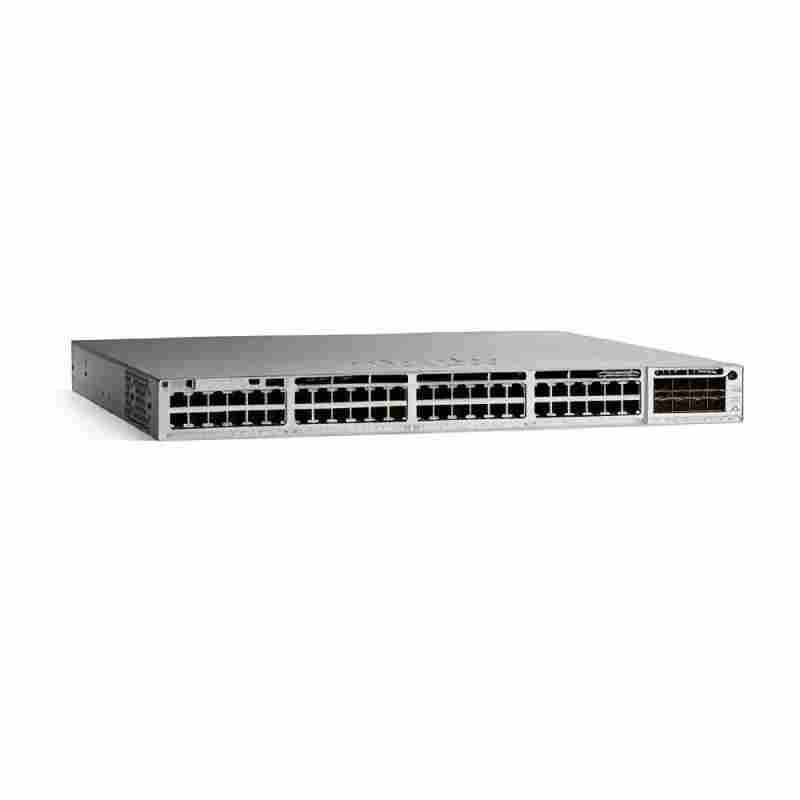

The Cisco Catalyst C9300L-48P-4G-E is a high-performance, stackable Layer 3 Gigabit Ethernet PoE+ access switch purpose-built for modern enterprise, campus, IoT, and wireless networks. It features 48 fixed 10/100/1000BASE-T RJ45 PoE+ ports (delivering up to 30W per port) to power IP phones, Wi-Fi 6/6E access points, IP cameras, and IoT devices without separate power adapters, plus 4 dedicated 1G SFP uplink ports for high-speed fiber/copper aggregation to core/distribution layers—all in a compact 1RU rack-mount form factor.

Powered by Cisco Unified Access Data Plane (UADP) 2.0 architecture and Cisco IOS XE, this switch delivers wire-speed performance, advanced security, and cloud-manageability. It supports StackWise-320 stacking (up to 8 switches, 320 Gbps stacking bandwidth) to scale port density and simplify management, making it ideal for high-density PoE deployments. The included Network Essentials license provides core enterprise features: static/RIP/OSPF routing, VLANs, QoS, MACsec encryption, and Energy Efficient Ethernet (EEE).

Designed for security, IoT, mobility, and cloud integration, it aligns with Cisco DNA Center and SD-Access for intent-based networking and zero-trust security, offering investment protection, operational efficiency, and reliability for businesses needing a cost-effective, PoE-rich access switching solution.

Key Features & Business Benefits

Core Features

• 48 x PoE+ 10/100/1000BASE-T RJ45 ports: 30W per port (802.3af/at), powering APs, IP phones, cameras, and IoT devices
• 4 x fixed 1G SFP uplink ports: Fiber/copper aggregation to core/distribution layers

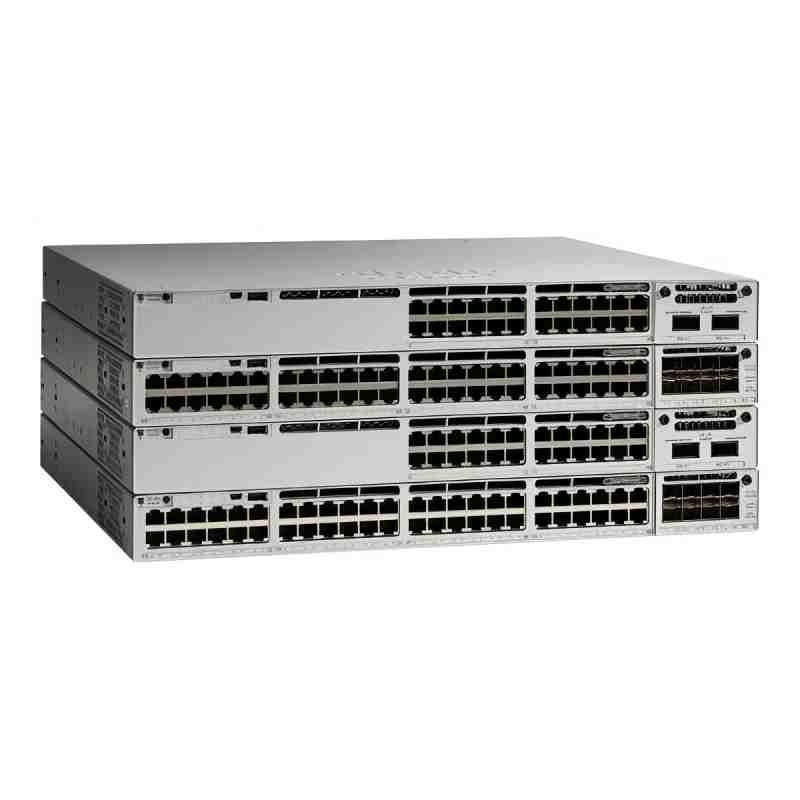

• StackWise-320 stacking: Up to 8 switches, 320 Gbps stacking bandwidth, single IP management
• Layer 3 routing: Static, RIPv2, OSPFv2, EIGRP for scalable inter-VLAN routing
• Advanced security: MACsec (AES-256), 802.1X, ACLs, Trustworthy Systems, Encrypted Traffic Analytics (ETA)
• Cisco DNA-ready: Cloud management via Catalyst Center/Meraki, SD-Access integration
• High availability: Hot-swappable fans, redundant power supply support, 16 MB packet buffer
• Energy efficiency: EEE, ENERGY STAR certified, intelligent PoE power management
• Scalability: 32K MAC addresses, 4094 VLANs, 8 GB RAM, 16 GB flash storage

Business Benefits

1. Simplified PoE deployment: Power 48 devices over Ethernet, eliminating costly power adapters and cabling.
2. Scalable wireless/IoT support: Ideal for dense Wi-Fi 6/6E AP and IP camera deployments.
3. Simplified network scaling: Stack up to 8 units for up to 384 PoE+ ports with unified management.
4. Enhanced security posture: Built-in encryption and threat detection protect critical PoE-powered devices.
5. Cloud & hybrid readiness: Seamless integration with Cisco DNA for centralized, automated network control.
6. Cost efficiency: Reduces rack space, cabling, and power costs; EEE lowers energy consumption.
7. Reliable performance: Wire-speed switching, low latency, and redundant components ensure 24/7 uptime.
8. Investment protection: Compatible with Cisco Catalyst 9000 family, supports future software upgrades.

Technical Specifications

Ideal Application Scenarios

• Enterprise Campus Wireless Access: High-density PoE+ for Wi-Fi 6/6E APs across office floors.
• IP Surveillance & Security Networks: Powering IP cameras, NVRs, and access control systems.
• IoT & Smart Buildings: Secure PoE connectivity for sensors, lighting, HVAC, and building automation.
• Education Networks: PoE for classroom APs, IP phones, and interactive whiteboards.
• Healthcare Networks: Reliable PoE for medical devices, patient monitoring, and wireless clinics.
• Distributed Branch Networks: Centralized PoE switching for remote offices with cloud management.
• Small-to-Medium Business (SMB) Core/Access: Cost-effective Layer 3 PoE switching for SMB networks.

Supported Accessories & Modules

PoE & Uplink Modules (1G SFP)

• GLC-SX-MM: 1000BASE-SX, multimode fiber (850nm, up to 550m)
• GLC-LX-SM: 1000BASE-LX, single-mode fiber (1310nm, up to 10km)
• GLC-T: 1000BASE-T, copper RJ45 (100m)
• GLC-EX-SM: 1000BASE-EX, single-mode fiber (1310nm, up to 40km)

Stacking Accessories

• STACK-T1-1M / 3M / 5M: StackWise-320 stacking cables (1m/3m/5m)
• C9300L-STACK-KIT: Stacking kit for C9300L series switches

Power Supplies

• PWR-C5-350WAC: 350W AC power supply (default)
• PWR-C5-715WAC: 715W AC power supply (redundant option)

Rack & Mounting

• Standard 19-inch Rack Mount Kit
• Cable Management Arms for organized cabling

Frequently Asked Questions (FAQ)

Q1: What is the PoE capability of the C9300L-48P-4G-E?

A: It supports 802.3af/at PoE+, delivering up to 30W per port with a total PoE budget of 370W, powering most APs, IP phones, and cameras.

Q2: Can I stack this switch with other Catalyst 9300 models?

A: Yes, it stacks with other C9300L fixed-uplink models (e.g., C9300L-24P-4G-E) via StackWise-320. It is not compatible with C9300/C9300X modular models.

Q3: What software license is included?

A: It includes the Cisco Network Essentials license, providing core Layer 3 routing, PoE management, security, QoS, and stacking features.

Q4: Does it support cloud management?

A: Yes, it is fully compatible with Cisco DNA Center (on-prem) and Meraki Dashboard (cloud) for centralized monitoring and automation.

Q5: What is the maximum number of switches in a stack?

A: Up to 8 C9300L switches can be stacked, providing up to 384 PoE+ ports with 320 Gbps stacking bandwidth.

Q6: Are the power supplies and fans hot-swappable?

A: Yes, both power supplies and fan modules are hot-swappable for non-disruptive maintenance.

Q7: Can I use 10G SFP+ modules in the uplink ports?

A: No, the uplink ports are fixed 1G SFP-only and do not support 10G SFP+ modules.

Q8: What is the warranty coverage?

A: The switch comes with a Cisco Limited Lifetime Warranty, including hardware replacement and software updates.
