Comprehensive Product Overview

The Brocade BR-G620-24-32G-R (part of the G620 series) is a next-generation storage networking switch built to address the demands of hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments. As a Gen 6 Fibre Channel solution, it supports 32Gbps line speeds and auto-sensing of 4/8/10/16/32G port speeds, ensuring compatibility with legacy and modern storage devices.

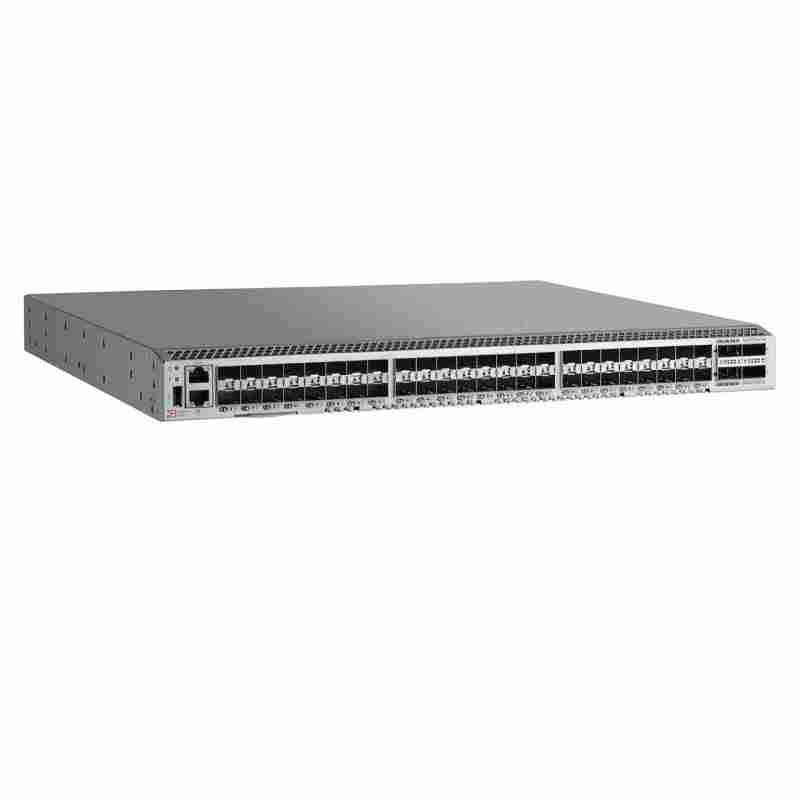

This switch comes with 24 pre-activated 32G SFP+ ports (including 24x 32G SWL transceivers) and can scale up to 64 ports via license upgrades (36/48 SFP+ ports + 4 Q-Flex QSFP ports). The Q-Flex ports support 4×32Gbps or 128Gbps aggregated bandwidth, enabling high-speed inter-switch links (ISLs) and simplified fabric expansion.

With a non-blocking architecture, 2 Tb/s aggregate bandwidth, and support for up to 6,000 active nodes, the BR-G620-24-32G-R delivers exceptional performance for large-scale enterprise deployments and complex cloud computing environments. It also features Brocade Fabric Vision technology for built-in monitoring, diagnostics, and analytics, reducing management complexity and operational costs.

Key Features & Business Benefits

1. Breakthrough Gen 6 Performance

• 32Gbps line speed with auto-sensing 4/8/10/16/32G compatibility.
• 2 Tb/s non-blocking aggregate bandwidth and 700ns ultra-low latency
• 10x latency reduction for high-transaction applications vs. competitive solutions.
• Business Benefit: Accelerates NVMe flash storage performance, supports real-time analytics, and eliminates storage bottlenecks for mission-critical applications.

2. Pay-As-You-Grow Scalability

• 24 active ports (base) → expandable to 64 ports (48 SFP+ + 4 Q-Flex QSFP) via licenses
• Q-Flex ports support 128Gbps ISLs for simplified fabric scaling
• Supports 56 switches, 19 hops in Brocade Fabric OS fabrics
• Business Benefit: Reduces upfront costs, adapts to evolving storage needs, and eliminates forklift upgrades as data volumes grow.

3. Enterprise-Grade Reliability & Availability

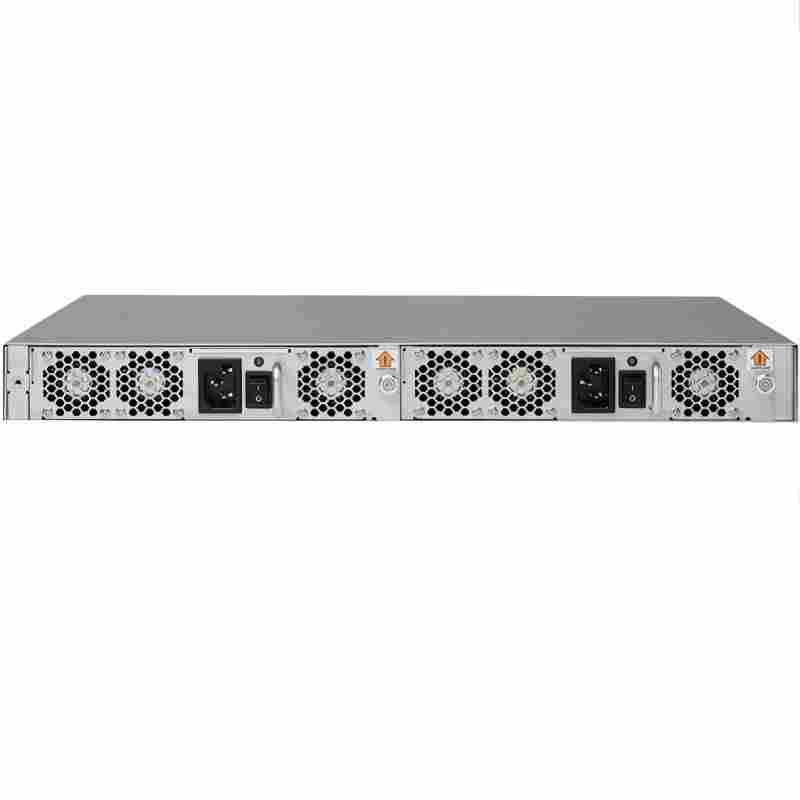

• Dual hot-swappable 205W power supplies (AC 120/230V, 50/60Hz).
• Port-side exhaust airflow for efficient cooling in hot-aisle/cold-aisle data centers
• Redundant fans and hot-swappable components for 99.999% uptime
• Business Benefit: Ensures continuous operation for critical workloads, minimizes downtime, and reduces maintenance costs.

4. Simplified Management & Operations

• Brocade Fabric OS (FOS) v8.2.0 with EZSwitchSetup wizard for one-click deployment
• Fabric Vision technology with built-in latency, IOPS monitoring, and ClearLink diagnostics.
• Supports SNMP, SSH, CLI, and Brocade Network Advisor for end-to-end management
• Business Benefit: Reduces IT management time, simplifies troubleshooting, and enables proactive performance optimization.

5. Robust Security & Compatibility

• Supports FICON, NPIV, and FCAP for secure storage connectivity
• IPv6 support, IP filtering, and RBAC for enhanced network security
• Seamless integration with NVMe flash arrays, virtualized environments, and hybrid clouds.
• Business Benefit: Protects sensitive data, ensures compliance with enterprise security policies, and supports modern IT infrastructure strategies.

Technical Specifications

Ideal Application Scenarios

1. Enterprise Data Centers

• Mission-critical workloads: ERP, databases, and real-time analytics requiring low latency and high reliability
• Storage consolidation: Connecting multiple storage arrays (NVMe flash, HDD) to servers with simplified management
• Virtualization: Supporting VMware, Hyper-V, and KVM environments with high VM density and deep workload visibility.

2. Cloud & Hybrid Cloud Infrastructures

• Private cloud: Building scalable, high-performance storage networks for on-premises cloud environments
• Hybrid cloud: Seamless integration with public clouds (AWS, Azure) via Fibre Channel over IP (FCIP) or hybrid SAN solutions
• Cloud service providers: Delivering multi-tenant storage services with secure, isolated fabrics and pay-as-you-grow scalability

3. NVMe Flash Storage Environments

• All-flash data centers: Maximizing NVMe flash array performance with 32Gbps speeds and ultra-low latency.
• High-transaction applications: Accelerating databases (Oracle, SQL Server) and big data analytics with 10x lower latency.
• Flash migration: Simplifying transition from 16G to 32G NVMe environments with auto-sensing compatibility.

4. SAN Migration & Modernization

• Legacy SAN upgrade: Replacing 8G/16G switches with 32G Gen 6 technology while preserving existing investments.
• Fabric expansion: Scaling from small to large SANs with Q-Flex ports and Brocade Fabric OS scalability
• Data center consolidation: Merging multiple SAN fabrics into a single, manageable infrastructure with reduced operational costs

Supported Accessories & Modules

1. Transceivers (Supported)

• 32G SFP+: SWL (short-wave, 850nm), LWL (long-wave, 1310nm), DWDM
• 16G SFP+: SWL, LWL, DWDM (auto-sensing compatible)Broadcom Inc.
• Q-Flex QSFP: 4×32Gbps (128Gbps aggregate) for ISLs

2. Accessories (Included/Optional)

• Included: 24x 32G SWL SFP+ transceivers, rack-mount kit, power cords, documentation
• Optional: Q-Flex port upgrade license (4 ports), additional 32G/16G transceivers, spare power supplies, Brocade Network Advisor software license

3. Compatible Brocade Software

• Brocade Fabric OS (FOS) v8.2.0+: Core operating system for switch management and fabric operations.
• Brocade Fabric Vision: Monitoring, diagnostics, and analytics software.
• Brocade Network Advisor: End-to-end management for Brocade SAN fabrics

Frequently Asked Questions (FAQ)

Q1: What is the difference between BR-G620-24-32G-R and other G620 models?

A1: The BR-G620-24-32G-R is the base model with 24 active 32G SFP+ ports (including 24x SWL transceivers), dual power supplies, and port-side airflow. Other models may have different port counts, power supply configurations, or airflow directions.

Q2: Can I upgrade the BR-G620-24-32G-R from 24 to 64 ports?

A2: Yes. You can upgrade to 36/48 SFP+ ports via license keys and add 4 Q-Flex QSFP ports with a Q-Flex upgrade license, reaching a maximum of 64 ports.

Q3: Is the BR-G620-24-32G-R compatible with 16G and 8G Fibre Channel devices?

A3: Absolutely. It supports auto-sensing of 4/8/10/16/32Gbps port speeds, ensuring seamless compatibility with legacy and modern storage devices.

Q4: What is the latency of the BR-G620-24-32G-R?

A4: It delivers 700ns ultra-low latency (typical) for 32Gbps connections, reducing latency by up to 10x compared to competitive solutions.

Q5: Does the switch support NVMe over Fibre Channel (NVMe-oF)?

A5: Yes. It is optimized for NVMe flash storage environments, supporting NVMe-oF with 32Gbps speeds and low latency to maximize flash performance.

Q6: What management tools are available for the G620 switch?

A6: It supports Brocade Fabric OS (FOS), EZSwitchSetup (wizard-based deployment), Fabric Vision (monitoring/analytics), and Brocade Network Advisor (end-to-end management).

Q7: What is the warranty for the BR-G620-24-32G-R?

A7: It comes with a 1-year factory warranty covering parts and labor. Extended warranty and support options are available.
